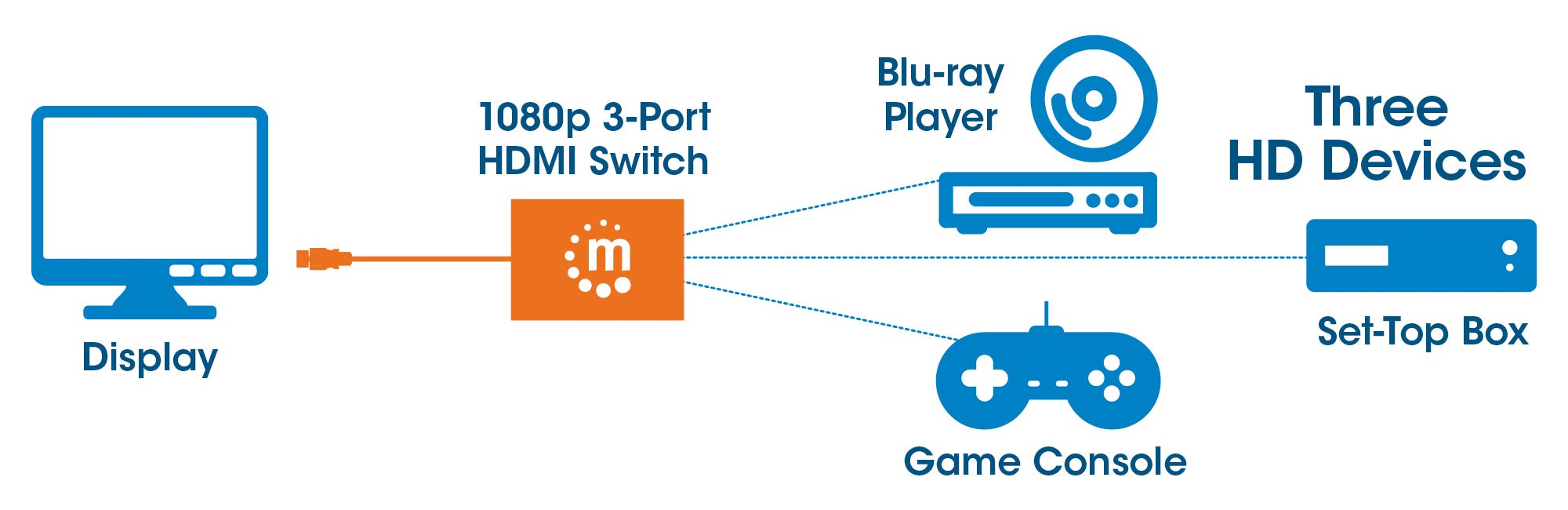

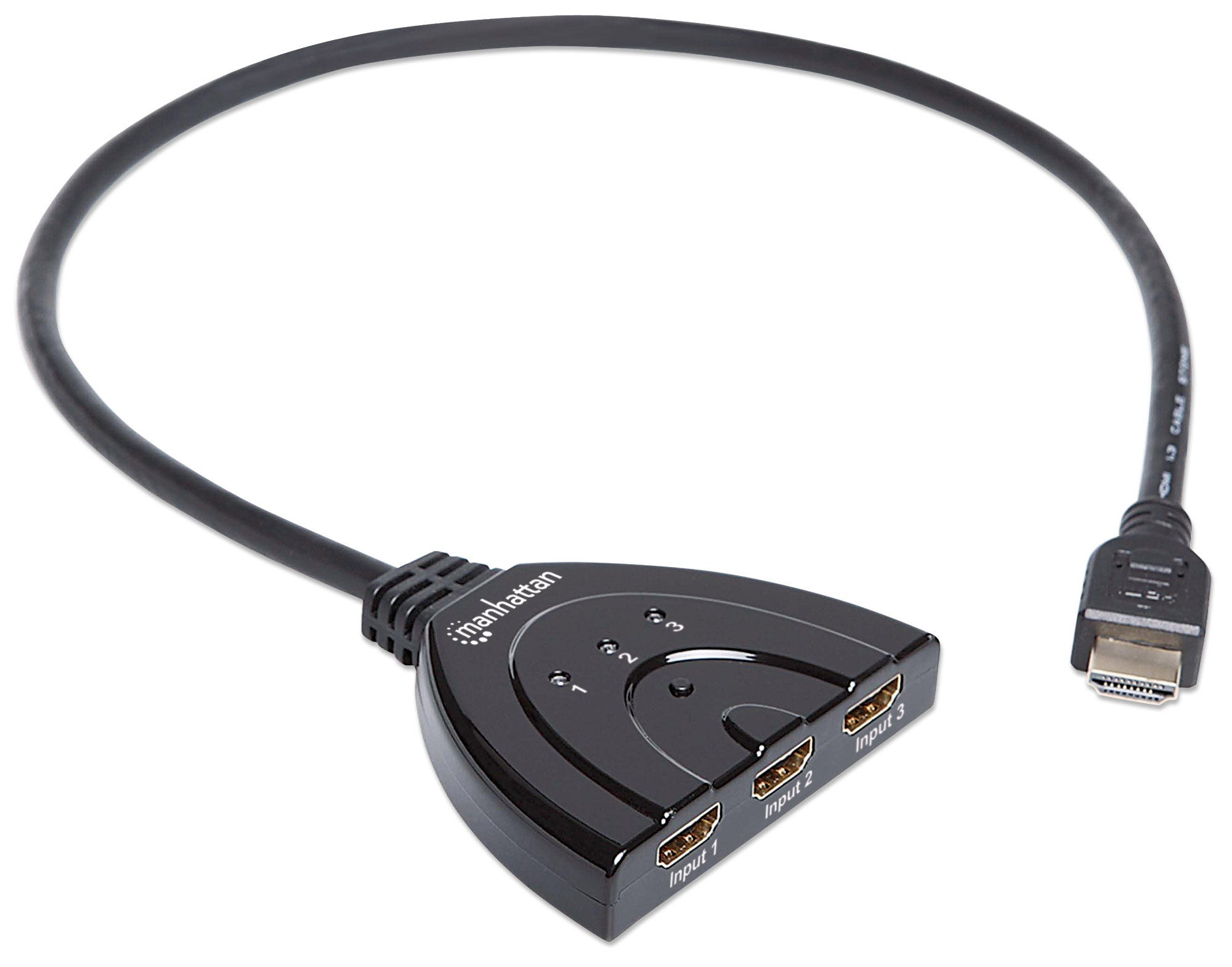

HDMI Switch 3-Port, 1080p, Connects x3 HDMI sources to x1 display, Manual Switching (via button), Integrated Cable (58cm), No external power required,
Model 207843EAN 766623207843
28 specifications
- Weight2.27 kg
- ColourBlack
- Video port typeHDMI
- Width61 mm
- Operating temperature (T-T)0 - 40 °C
- Compliance certificatesRoHS
Overview
- Weight
- 2.27 kg
- Colour
- Black
- Video port type
- HDMI
- Width
- 61 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Compliance certificates
- RoHS
- Brand
- Manhattan
- Category
- Video Switch
- Model
- 207843
- Part number
- 207843
- EAN / UPC
- 766623207843
- Also known as
- Manhattan HDMI Switch 3-Port, 1080p, Connects x3 HDMI sources to x1 display, Manual Switching (via button), Integrated Cable (58cm), No external power required,
Specifications
28 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 1.3b |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| Audio decoders | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Bandwidth | 2.5 Gbit/s |
| Bandwidth | 250 MHz |
| Cable length | 0.58 m |
| Connector contacts plating | Gold |
| HD type | Full HD |
| HDCP | Yes |
| Maximum operating distance | 15 m |
| Plug and Play | Yes |
| Supported video modes | 1080p |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 82 mm |
| Height | 15 mm |
| Weight | 2.27 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
