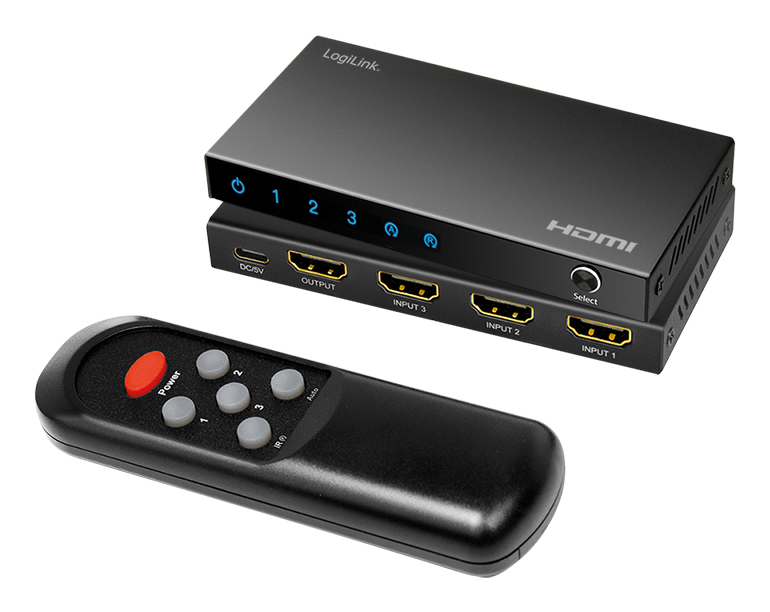

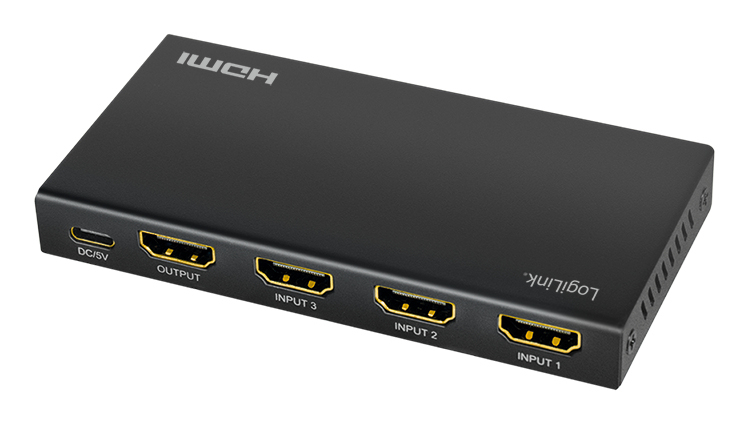

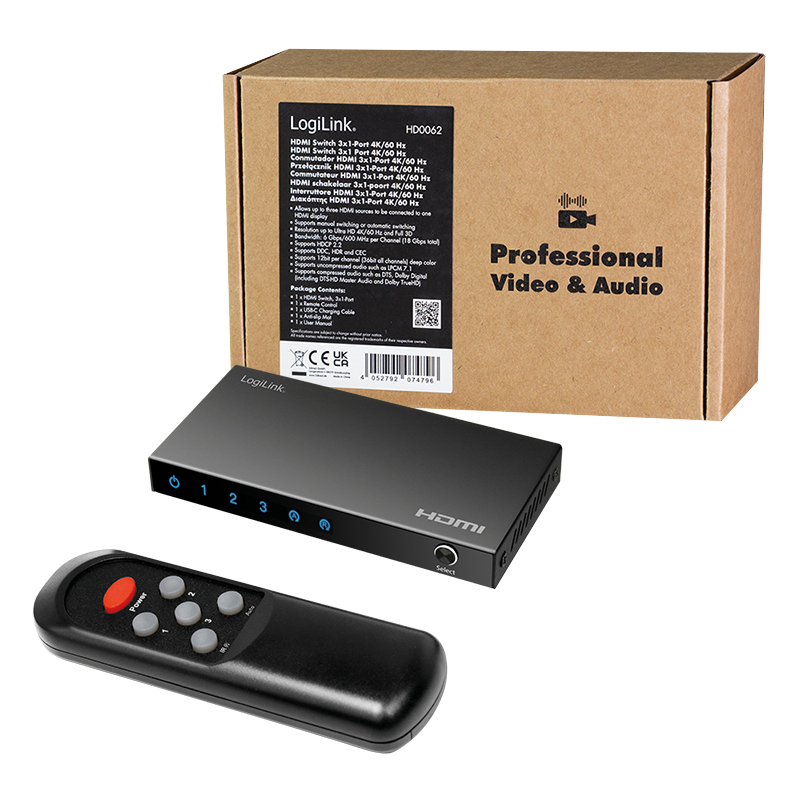

HD0062 video switch HDMI
Model HD0062EAN 4052792074796
40 specifications
- Weight139 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC adapter output voltage5 V
- Width112 mm
Overview
- Weight
- 139 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC adapter output voltage
- 5 V
- Width
- 112 mm
- Brand
- LogiLink
- Category
- Video Switch
- Model
- HD0062
- Part number
- HD0062
- EAN / UPC
- 4052792074796
- Also known as
- LogiLink HD0062 video switch HDMI
Specifications
40 specifications in 7 groups

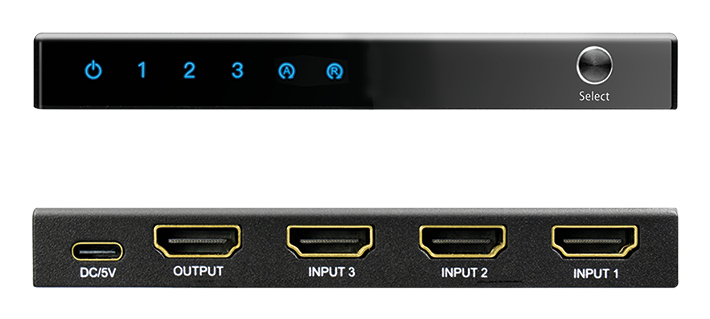

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| USB port type | USB Type-C |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| High Dynamic Range (HDR) supported | Yes |
| 3D | Yes |
| Audio decoders | DTS, Dolby Digital |
| Audio formats supported | LPCM |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| Colour depth | 36 bit |
| External power adapter | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 112 mm |
| Depth | 56.2 mm |
| Height | 14.3 mm |
| Weight | 139 g |

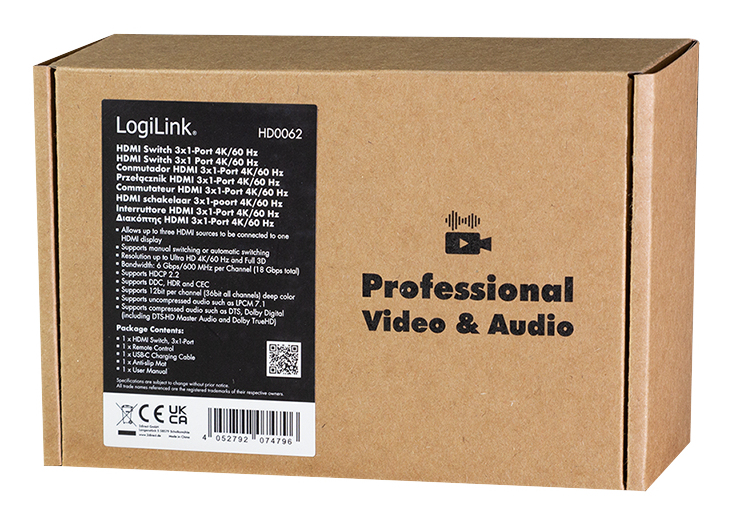

Packaging data
| Specification | Value |
|---|---|
| Package width | 168 mm |
| Package depth | 110 mm |
| Package height | 50 mm |
| Package weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

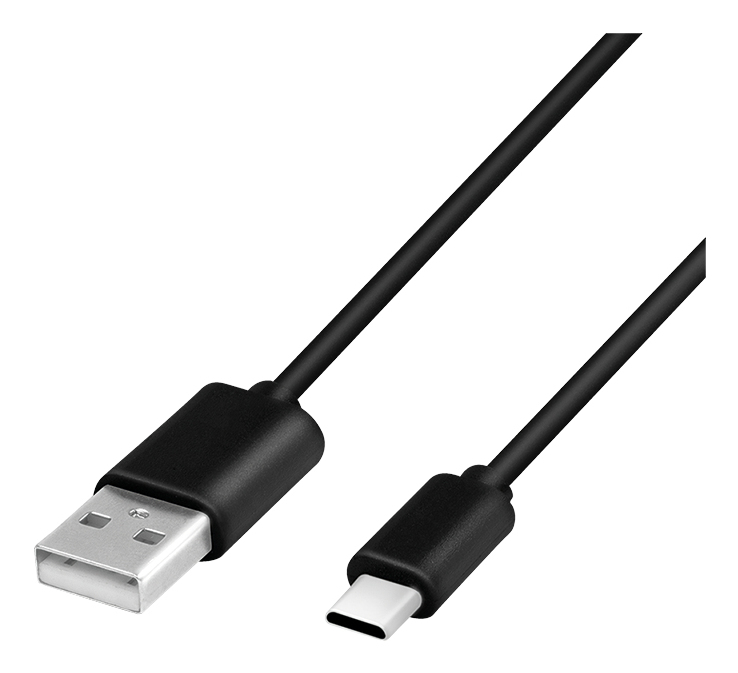

| Cables included | USB |
| Manual | Yes |

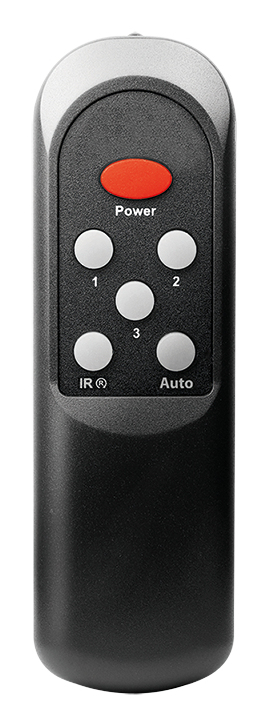

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
