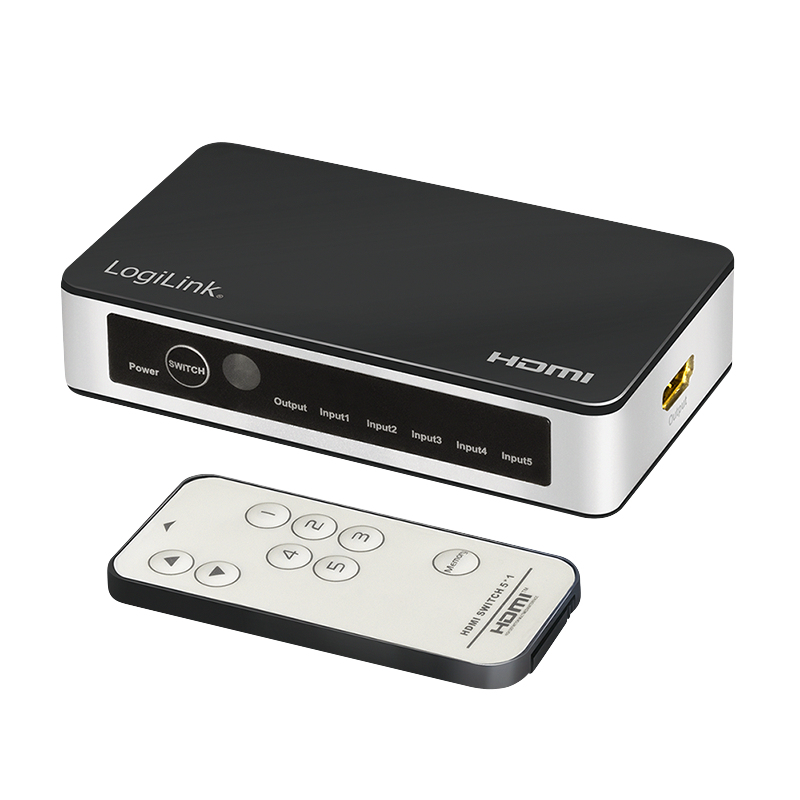

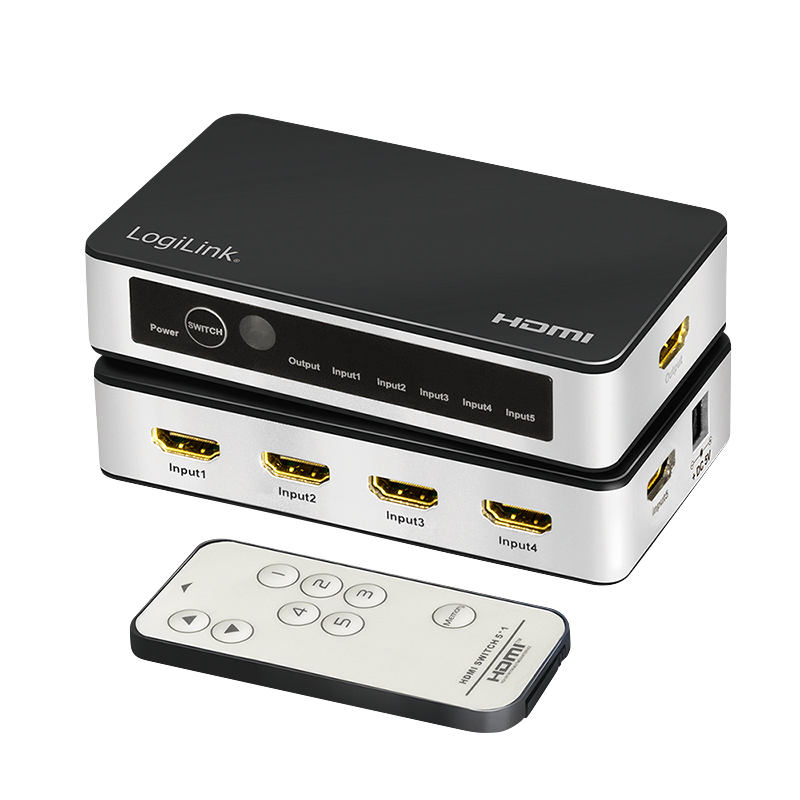

HD0047 video switch HDMI
Model HD0047EAN 4052792062458
40 specifications
- Weight111 g
- ColourBlack, White
- Video port typeHDMI
- MaterialABS, Aluminium
- AC adapter input voltage100 - 240 V
- Width118 mm
Overview
- Weight
- 111 g
- Colour
- Black, White
- Video port type
- HDMI
- Material
- ABS, Aluminium
- AC adapter input voltage
- 100 - 240 V
- Width
- 118 mm
- Brand
- LogiLink
- Category
- Video Switch
- Model
- HD0047
- Part number
- HD0047
- EAN / UPC
- 4052792062458
- Also known as
- LogiLink HD0047 video switch HDMI
Specifications
40 specifications in 7 groups

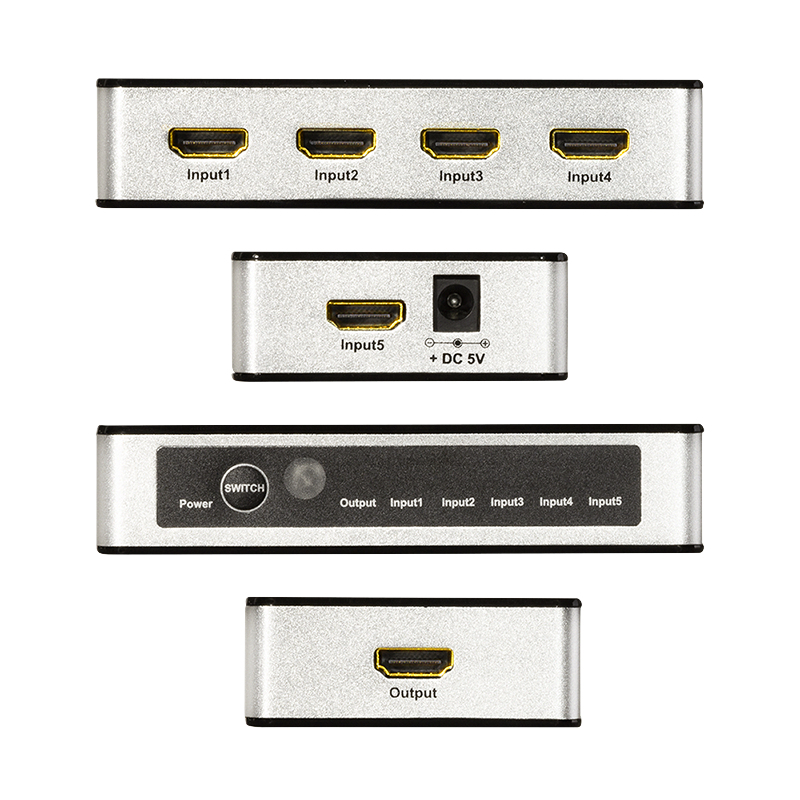

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 1.4 |

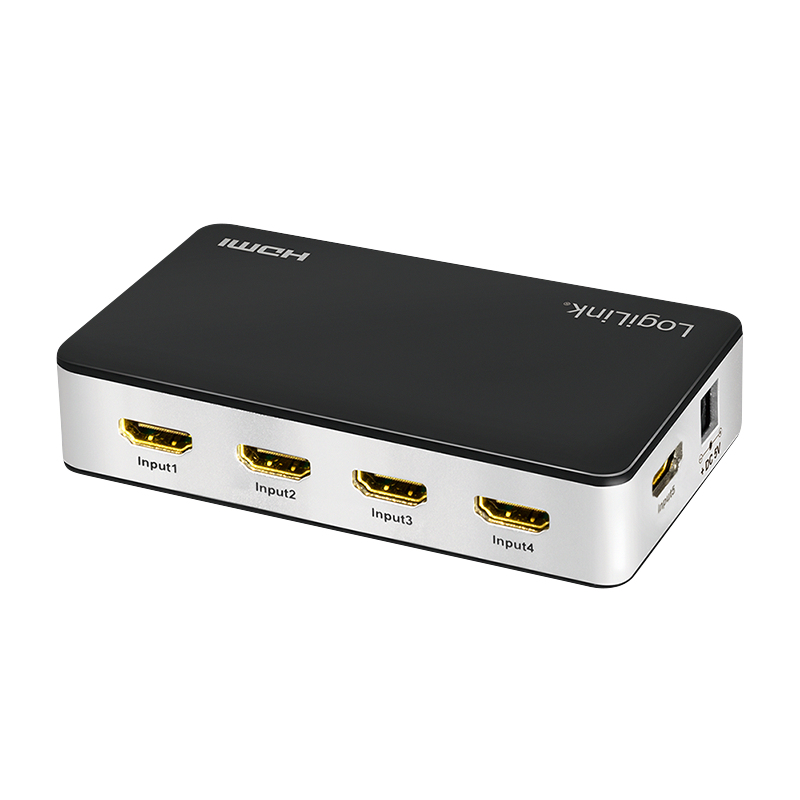

| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | ABS, Aluminium |
| Product colour | Black, White |
| Consumer Electronics Control (CEC) support | Yes |
| 3D | Yes |
| Audio formats supported | LPCM |
| Audio output channels | 7.1 channels |
| Bandwidth | 3.4 Gbit/s |
| Bandwidth | 340 MHz |
| Colour depth | 36 bit |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby Digital, Dolby TrueHD |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 0.2 A |
| Power consumption (max) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 65 mm |
| Height | 26 mm |
| Weight | 111 g |

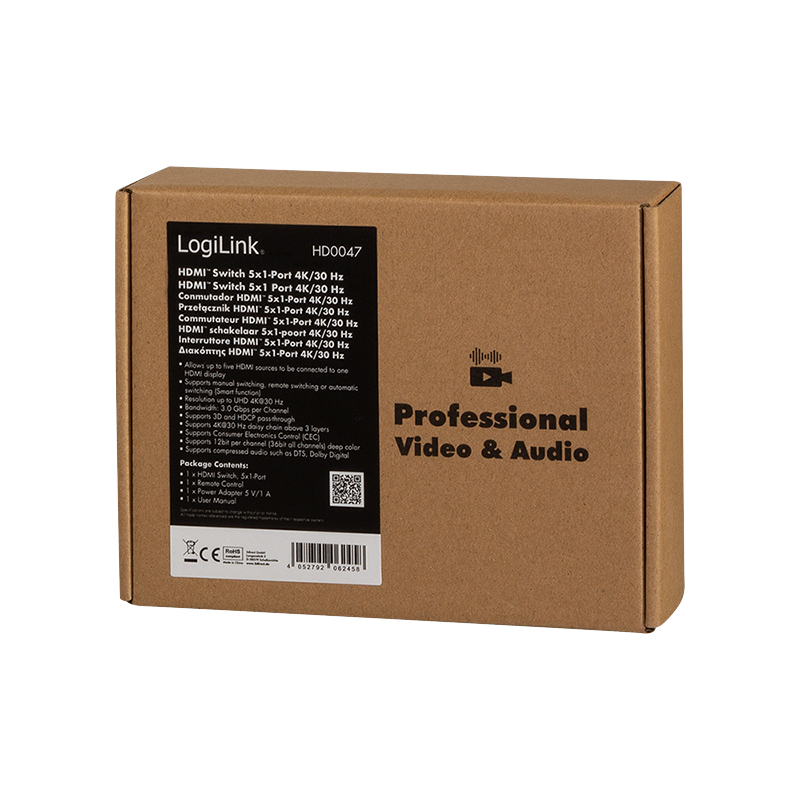

Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 145 mm |
| Package height | 60 mm |
| Package weight | 340 g |

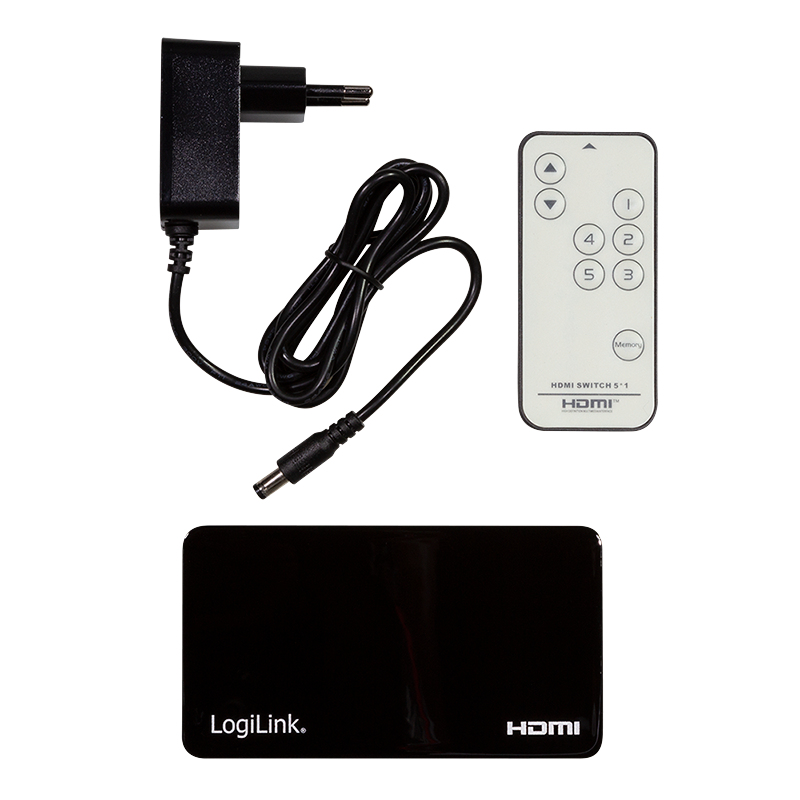

Packaging content
| Specification | Value |
|---|---|

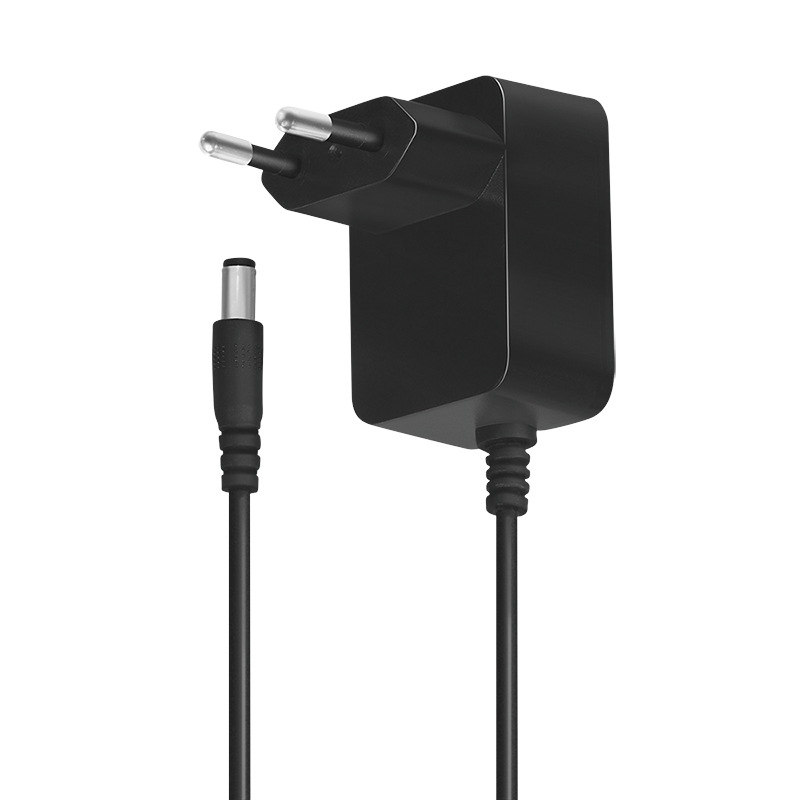

| AC adapter included | Yes |
| Manual | Yes |

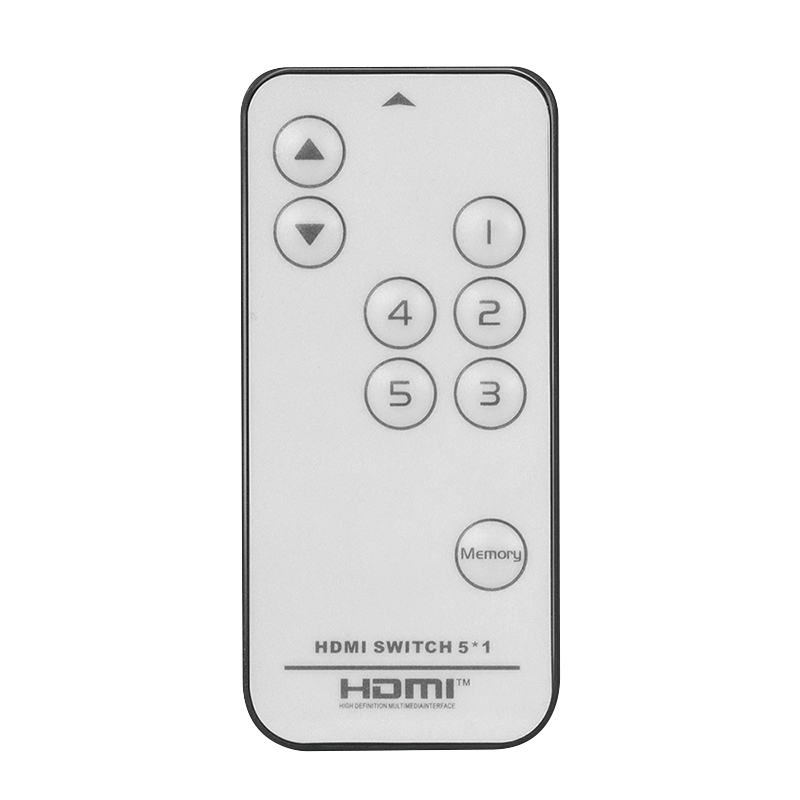

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
