HD0044 video switch HDMI
Model HD0044EAN 4052792062427
39 specifications
- Weight110 g
- ColourBlack, White
- Video port typeHDMI
- MaterialABS, Aluminium
- AC adapter input voltage100 - 240 V
- Width118 mm
Overview
- Weight
- 110 g
- Colour
- Black, White
- Video port type
- HDMI
- Material
- ABS, Aluminium
- AC adapter input voltage
- 100 - 240 V
- Width
- 118 mm
- Brand
- LogiLink
- Category
- Video Switch
- Model
- HD0044
- Part number
- HD0044
- EAN / UPC
- 4052792062427
- Also known as
- LogiLink HD0044 video switch HDMI
Specifications
39 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
Features
| Specification | Value |
|---|---|
| Material | ABS, Aluminium |
| Product colour | Black, White |
| Consumer Electronics Control (CEC) support | Yes |
| 3D | Yes |
| Audio formats supported | LPCM |
| Audio output channels | 7.1 channels |
| Bandwidth | 6 Gbit/s |
| Bandwidth | 600 MHz |
| Colour depth | 36 bit |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby Digital, Dolby TrueHD |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum refresh rate | 60 Hz |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 0.2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 65 mm |
| Height | 26 mm |
| Weight | 110 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 145 mm |
| Package height | 60 mm |
| Package weight | 340 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |

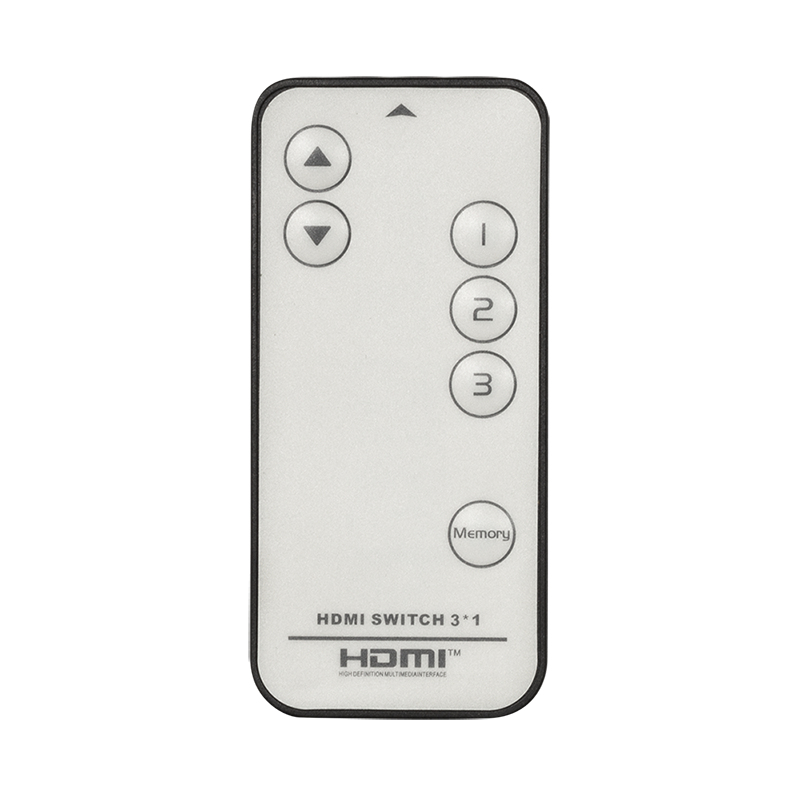

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
