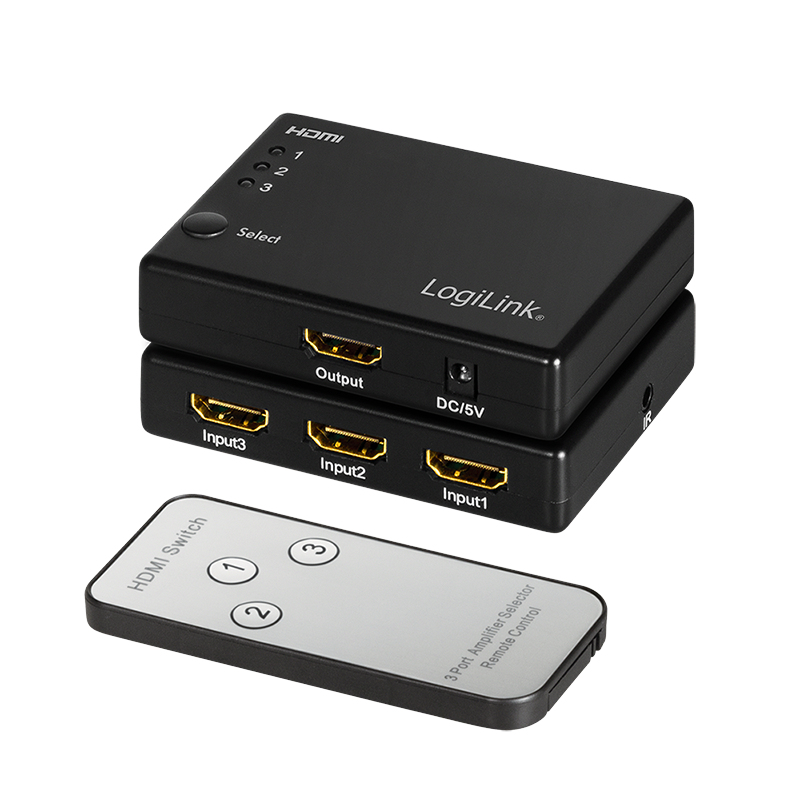

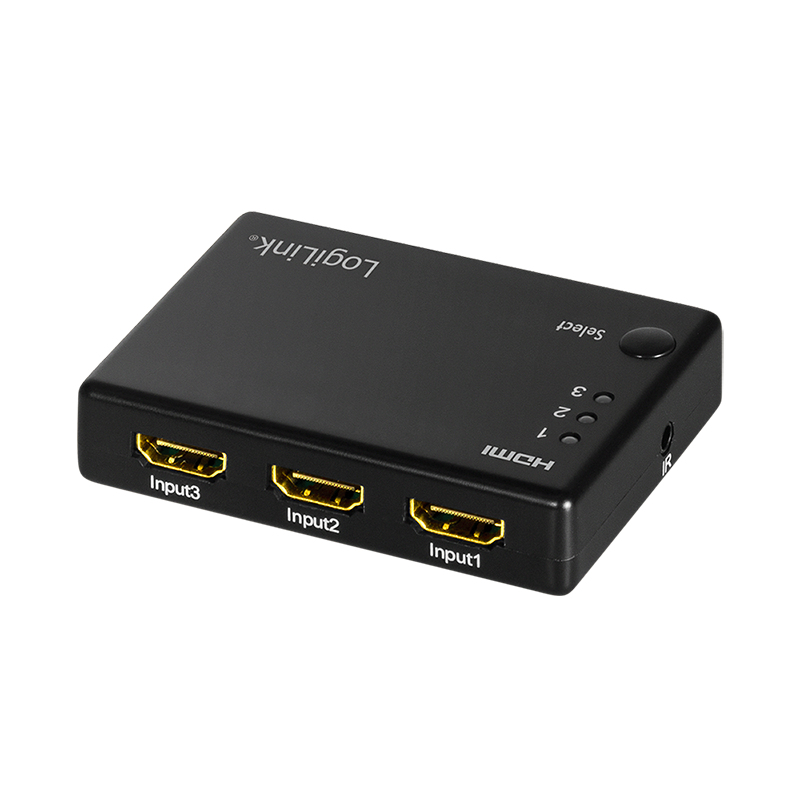

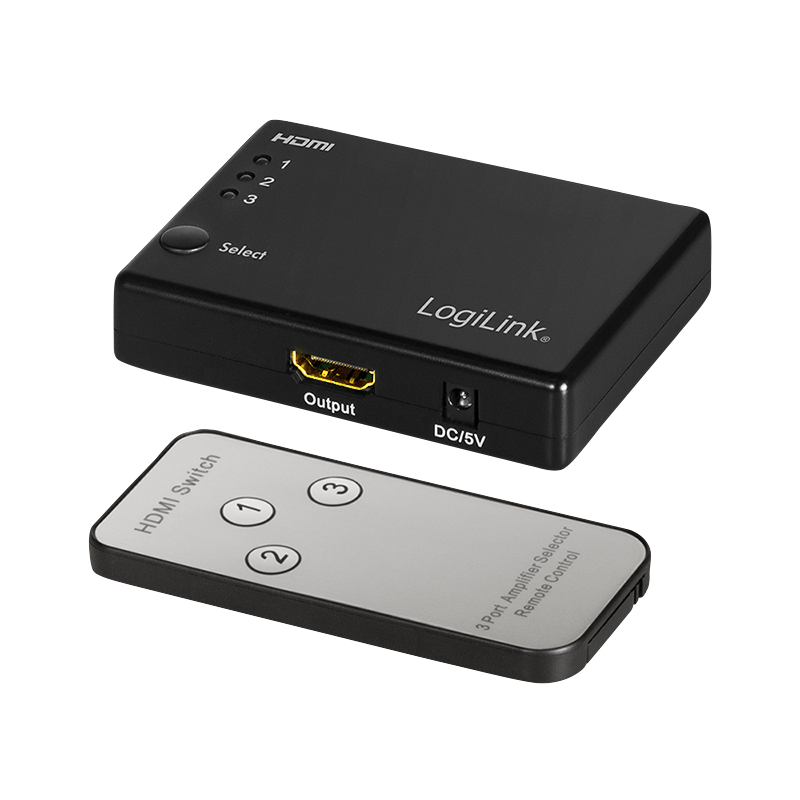

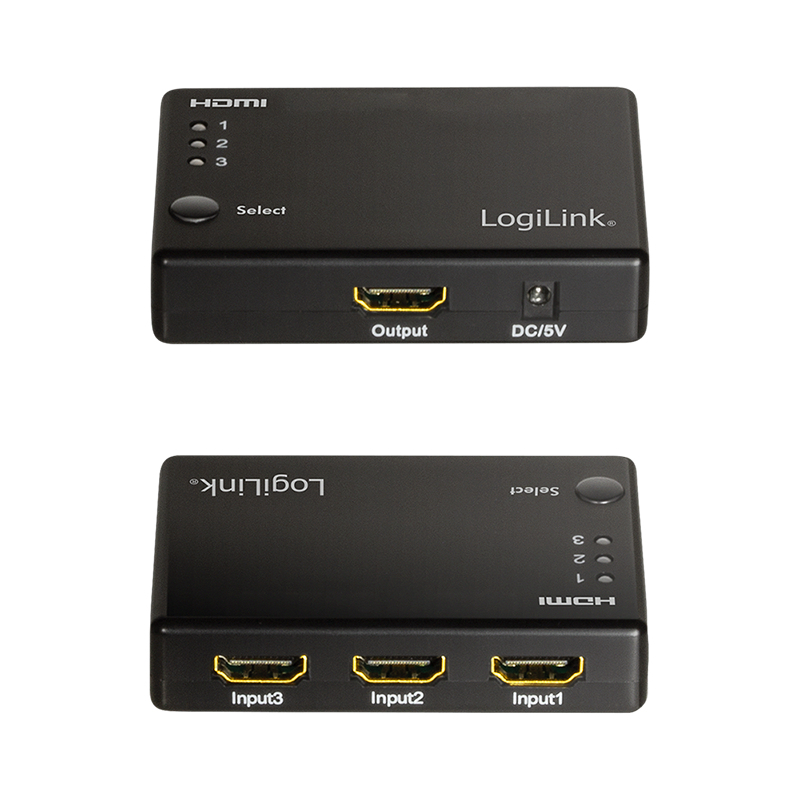

HD0042 video switch HDMI
Model HD0042EAN 4052792062403
29 specifications
- Weight54 g
- ColourBlack
- Video port typeHDMI
- MaterialABS
- Power consumption (max)5 W
- Width58 mm
Overview
- Weight
- 54 g
- Colour
- Black
- Video port type
- HDMI
- Material
- ABS
- Power consumption (max)
- 5 W
- Width
- 58 mm
- Brand
- LogiLink
- Category
- Video Switch
- Model
- HD0042
- Part number
- HD0042
- EAN / UPC
- 4052792062403
- Also known as
- LogiLink HD0042 video switch HDMI
Specifications
29 specifications in 7 groups

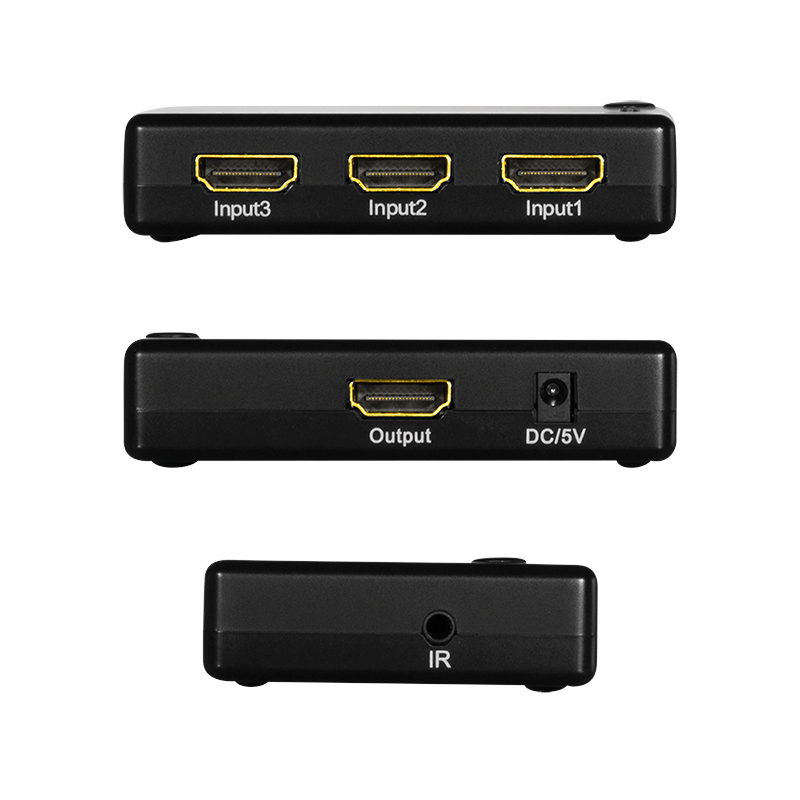

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 1.3 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | ABS |
| Product colour | Black |
| 3D | Yes |
| Colour depth | 36 bit |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby Digital, Dolby TrueHD |
| HDCP | Yes |
| HDCP version | 1.3 |
| Maximum refresh rate | 60 Hz |
| Supported video modes | 1080p |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 80 mm |
| Height | 18 mm |
| Weight | 54 g |
Packaging content
| Specification | Value |
|---|---|

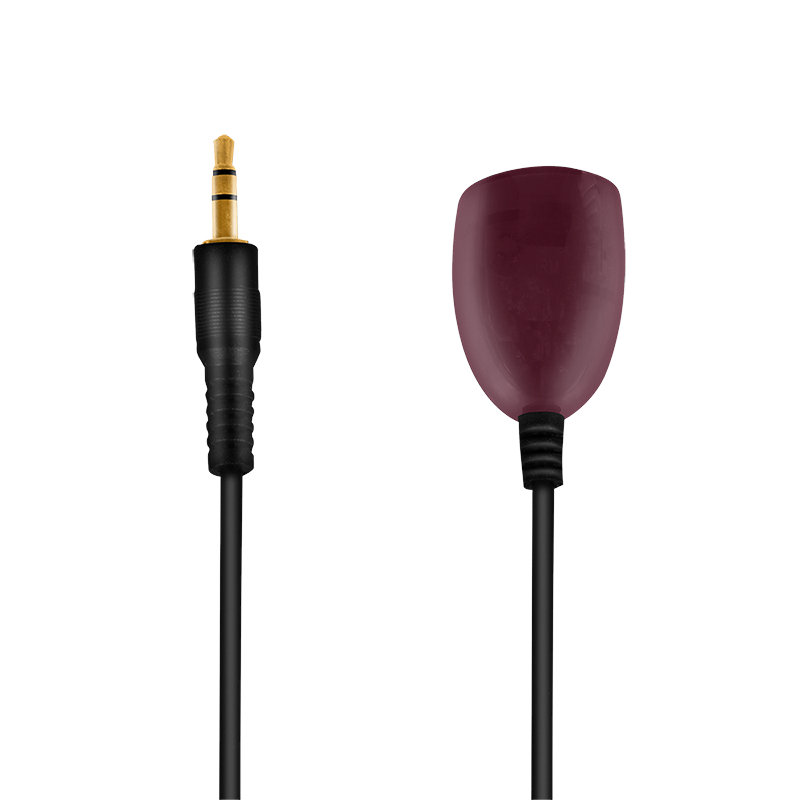

| Cables included | IR sensor |
| Manual | Yes |

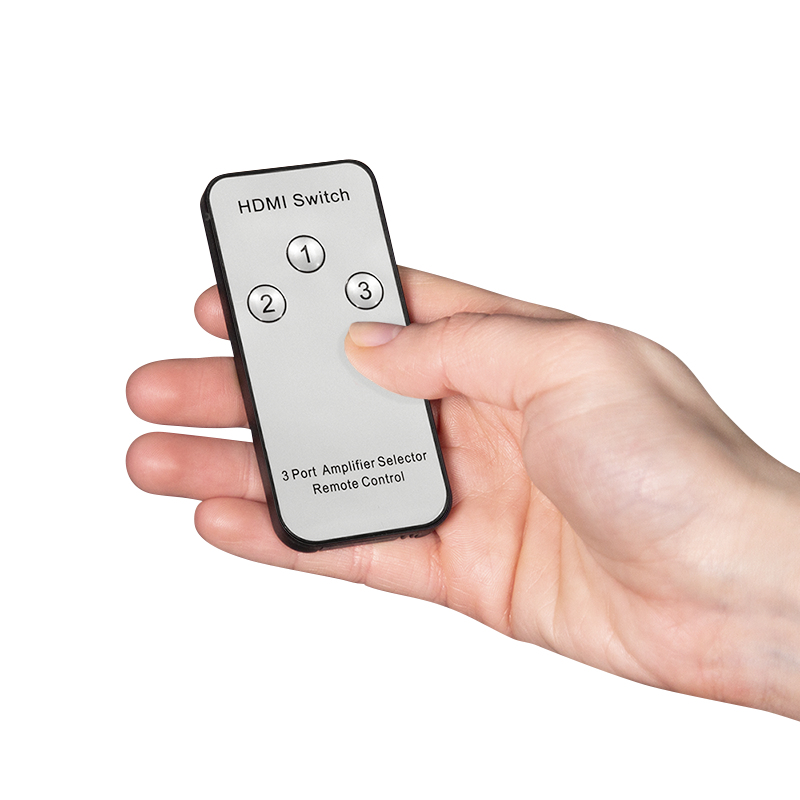

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
