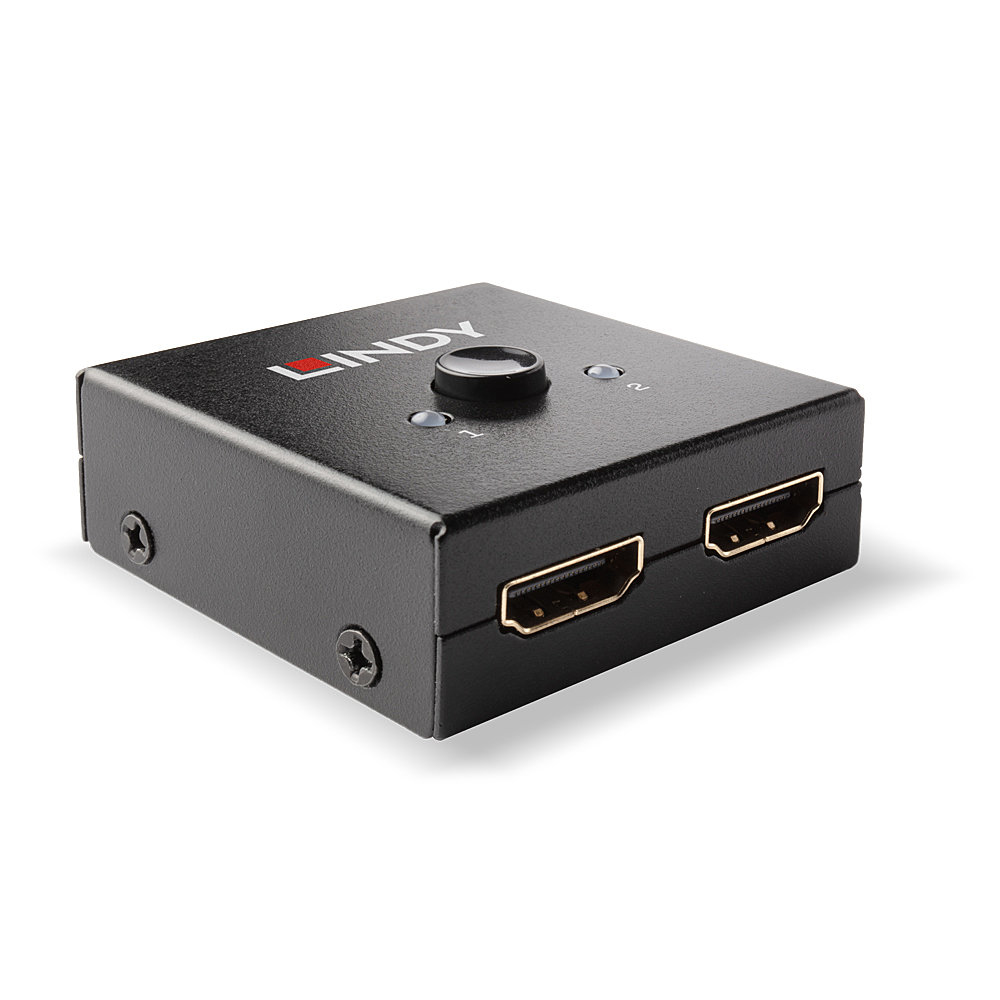

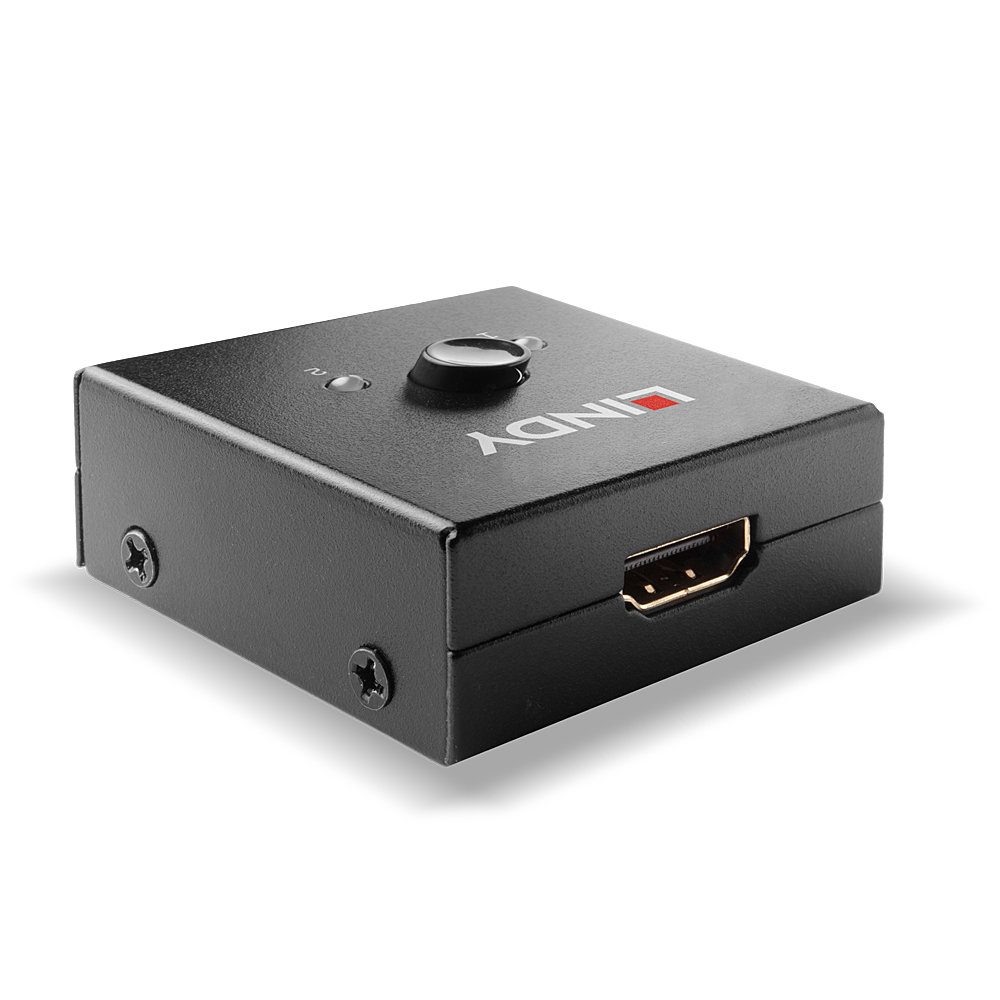

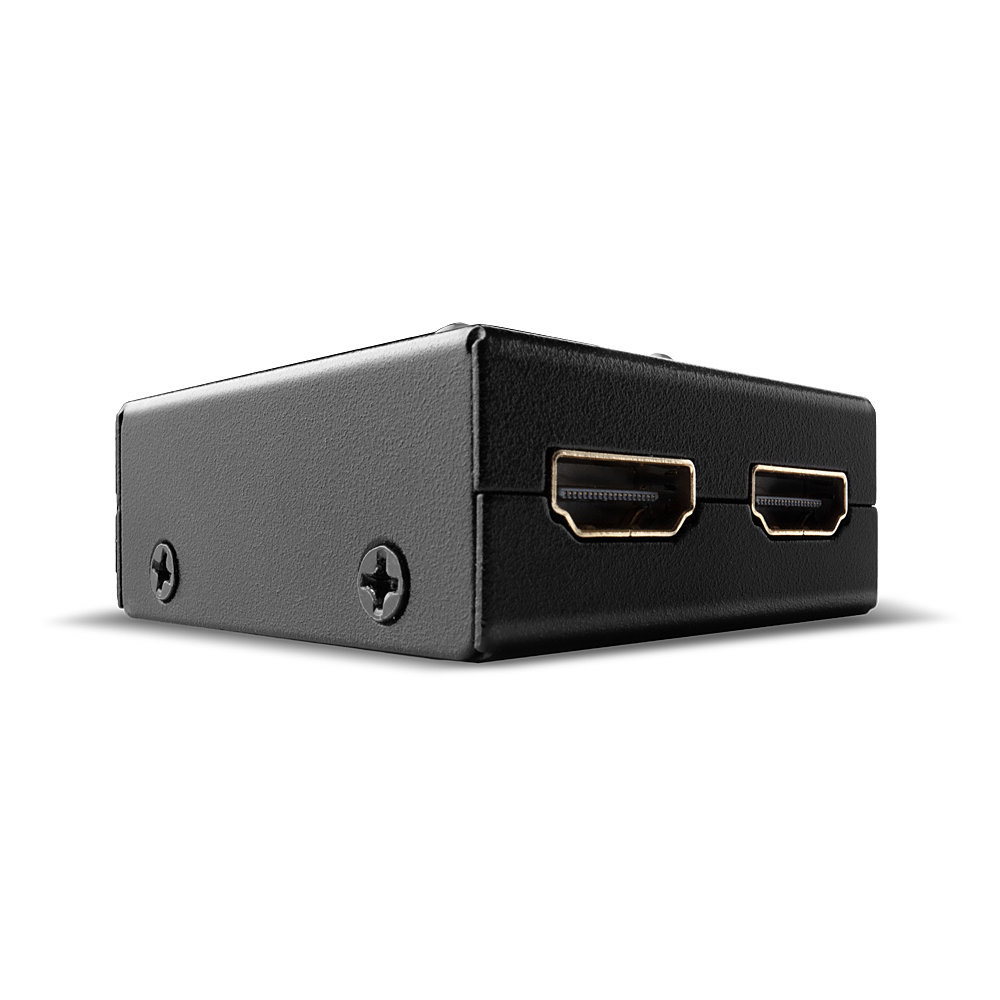

2 Port HDMI 18G Bi-Directional Switch
Model 38336EAN 4002888383363
28 specifications
- Weight700 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- Width49 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 700 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- Width
- 49 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lindy
- Category
- Video Switch
- Model
- 38336
- Part number
- 38336
- EAN / UPC
- 4002888383363
- Also known as
- Lindy 2 Port HDMI 18G Bi-Directional Switch
Specifications
28 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Bandwidth | 18 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| LED indicators | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, REACH, California Proposition 65 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 49 mm |
| Depth | 52 mm |
| Height | 20 mm |
| Weight | 700 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 63.5 mm |
| Package depth | 80 mm |
| Package height | 28 mm |
| Package weight | 840 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
