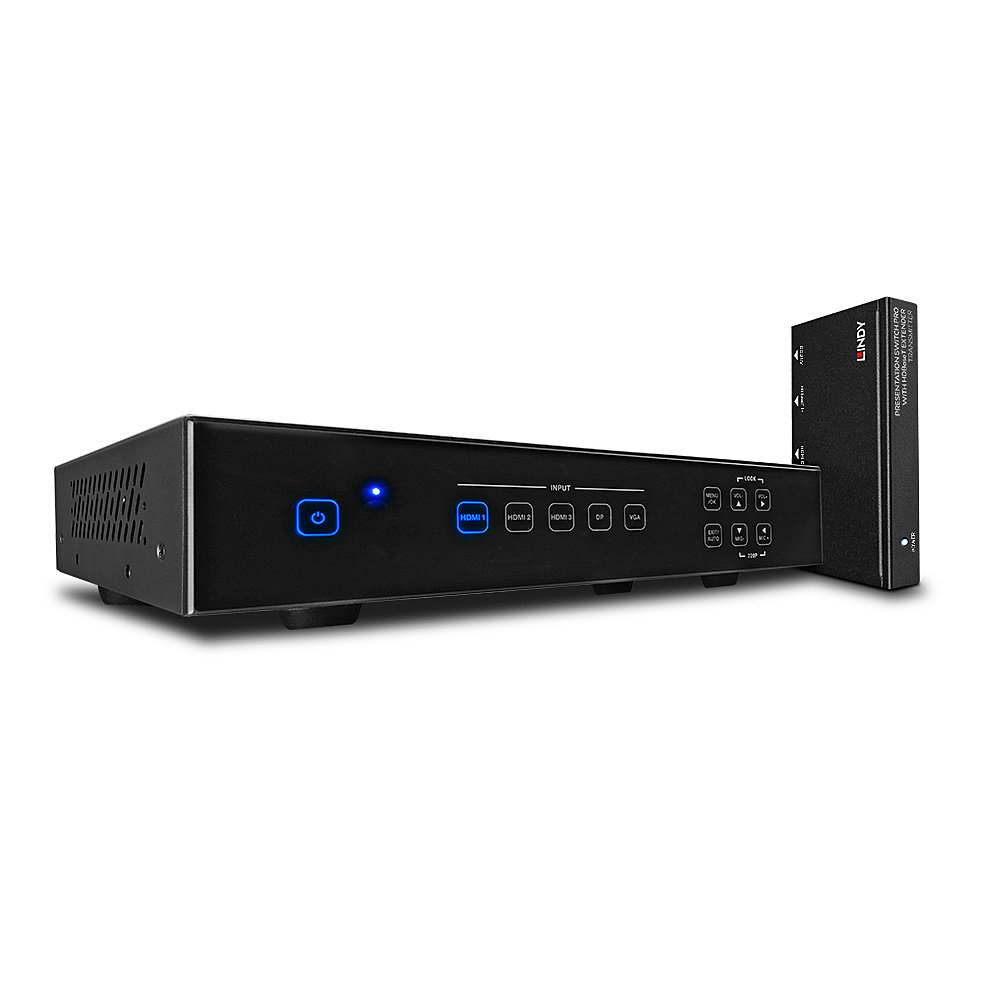

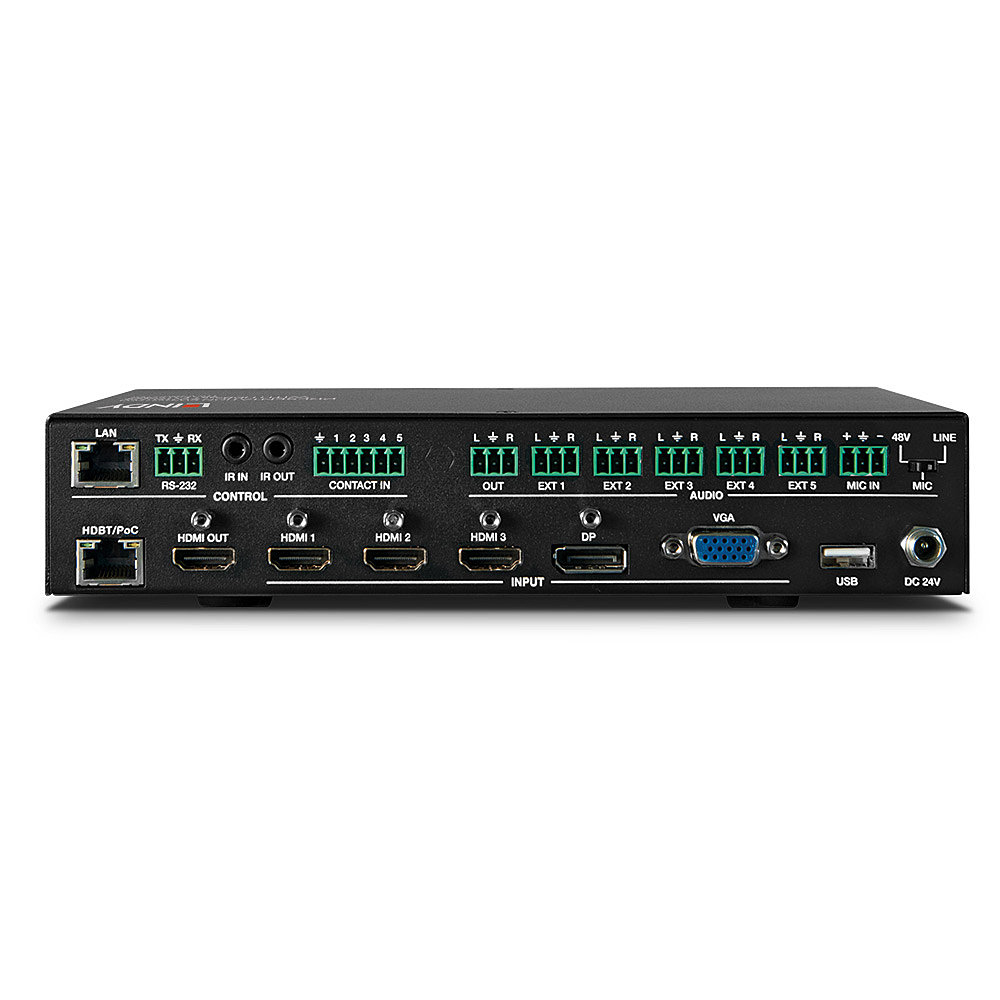

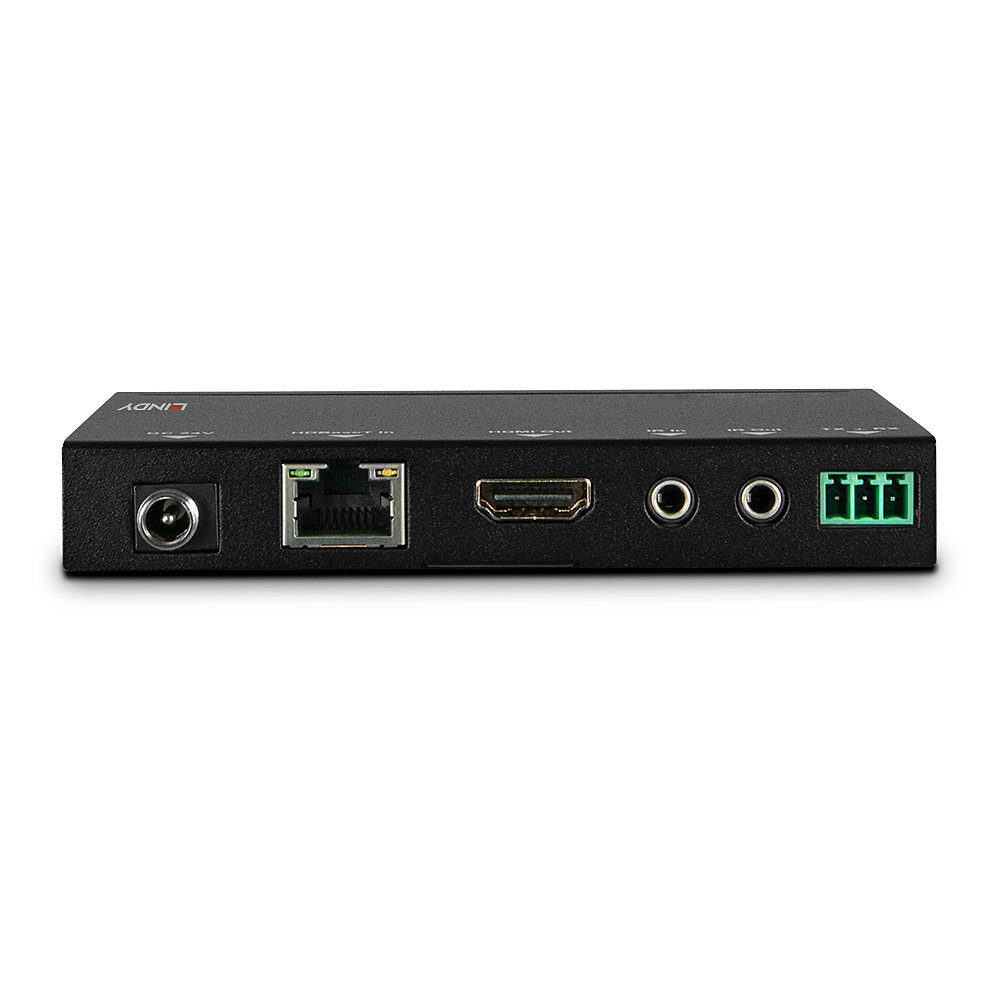

Presentation Switch Pro with 70m HDBaseT Extender
Model 38281EAN 4002888382816
38 specifications
- Weight737 g
- ColourBlack
- Video port typeHDMI/VGA/DisplayPort
- MaterialMetal
- Power consumption (typical)9 W
- Width220 mm
Overview
- Weight
- 737 g
- Colour
- Black
- Video port type
- HDMI/VGA/DisplayPort
- Material
- Metal
- Power consumption (typical)
- 9 W
- Width
- 220 mm
- Brand
- Lindy
- Category
- Video Switch
- Model
- 38281
- Part number
- 38281
- EAN / UPC
- 4002888382816
- Also known as
- Lindy Presentation Switch Pro with 70m HDBaseT Extender
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI/VGA/DisplayPort |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| VGA (D-Sub) input ports | 1 |
| USB port type | USB Type-A |
| DisplayPorts quantity | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | LPCM |
| Bandwidth | 18 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 9 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 44 mm |
| Height | 150 mm |
| Weight | 737 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| AC adapter included | Yes |
| Cables included | IR |
| Quick start guide | Yes |

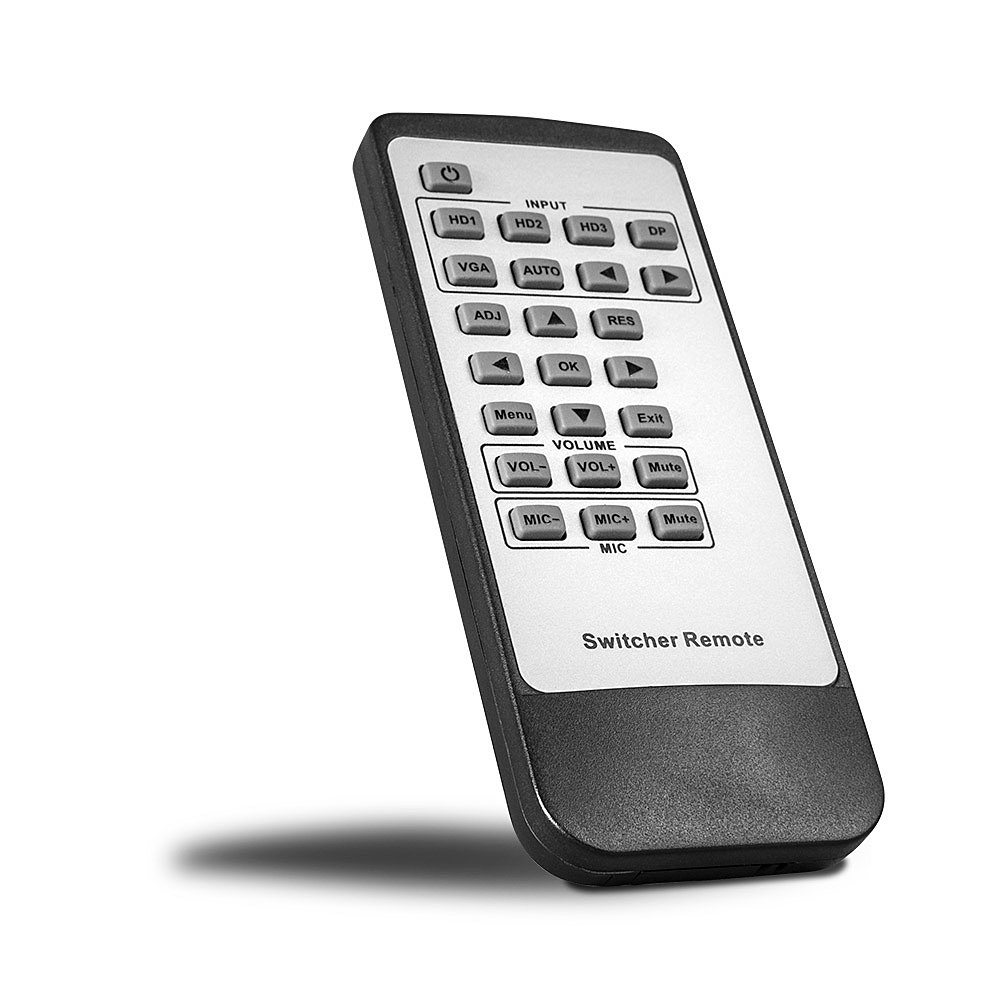

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
