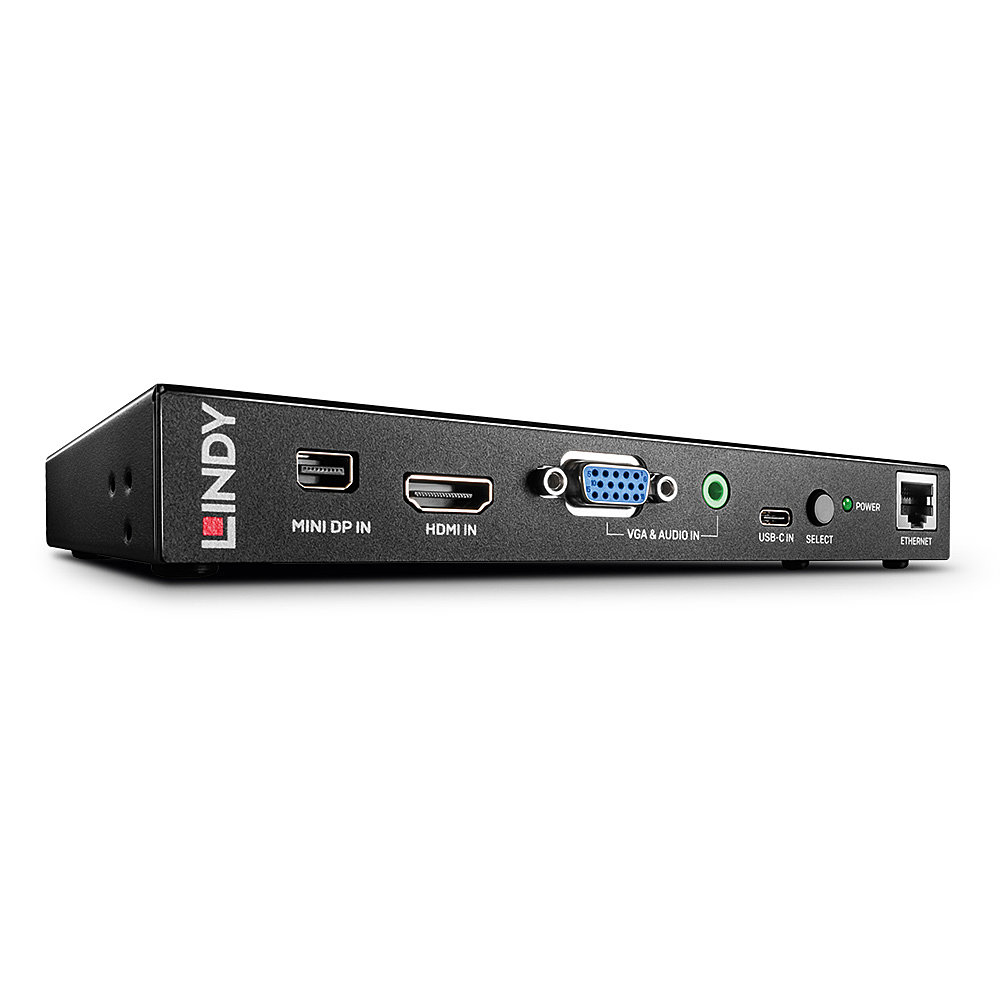

Multi Format Presentation Switch
Model 38268EAN 4002888382687
36 specifications
- Weight409 g
- ColourBlack
- Video port typeHDMI/VGA
- MaterialMetal
- Width179 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 409 g
- Colour
- Black
- Video port type
- HDMI/VGA
- Material
- Metal
- Width
- 179 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lindy
- Category
- Video Switch
- Model
- 38268
- Part number
- 38268
- EAN / UPC
- 4002888382687
- Also known as
- Lindy Multi Format Presentation Switch
Specifications
36 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI/VGA |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| VGA (D-Sub) input ports | 1 |
| USB port type | USB Type-C |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Power |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 90 mm |
| Height | 24 mm |
| Weight | 409 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 193 mm |
| Package depth | 68 mm |
| Package height | 184 mm |
| Package weight | 720 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 60% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
