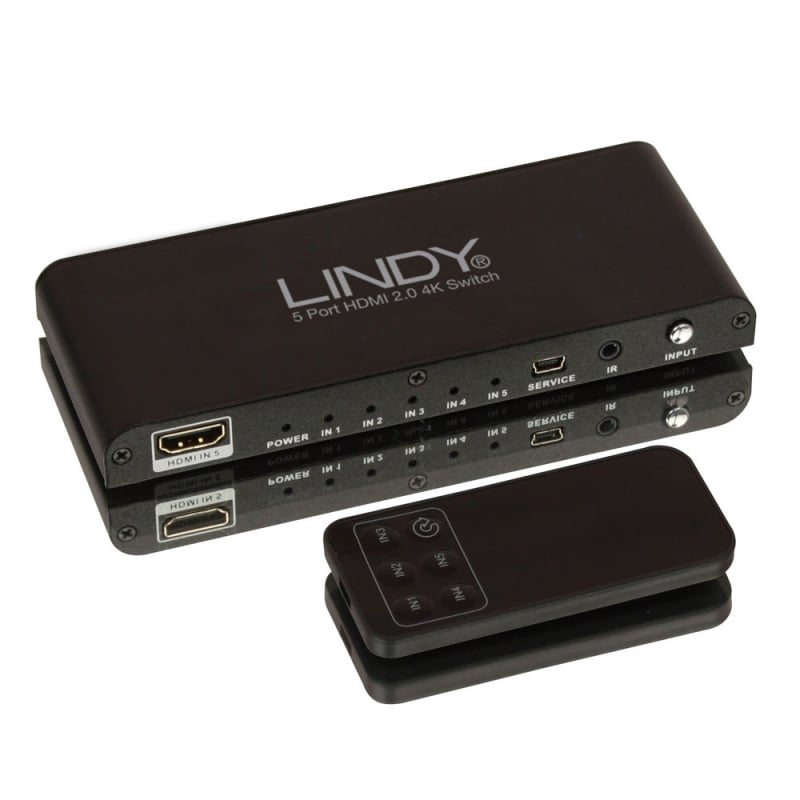

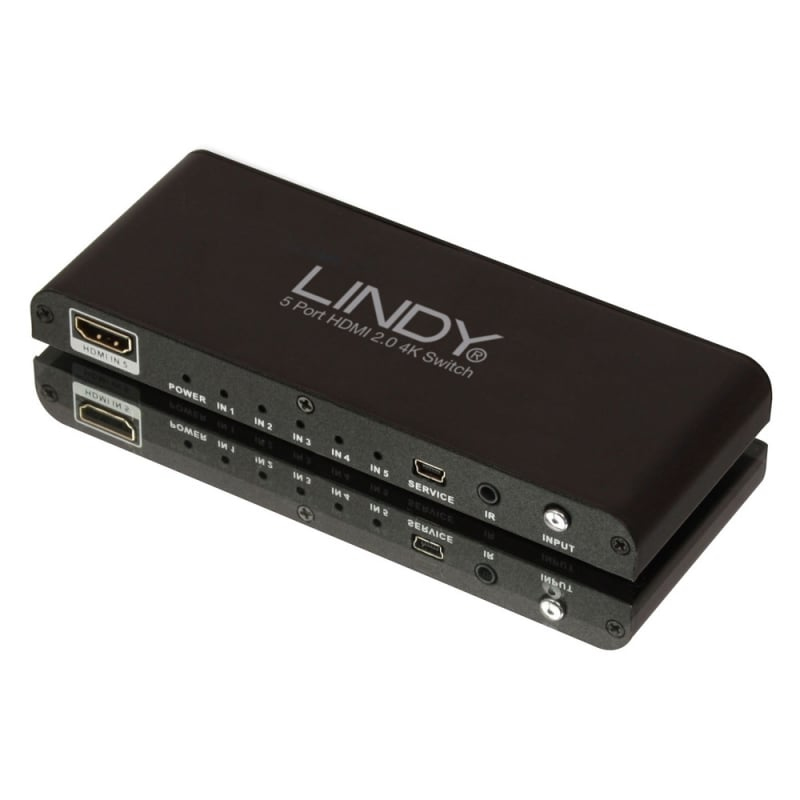

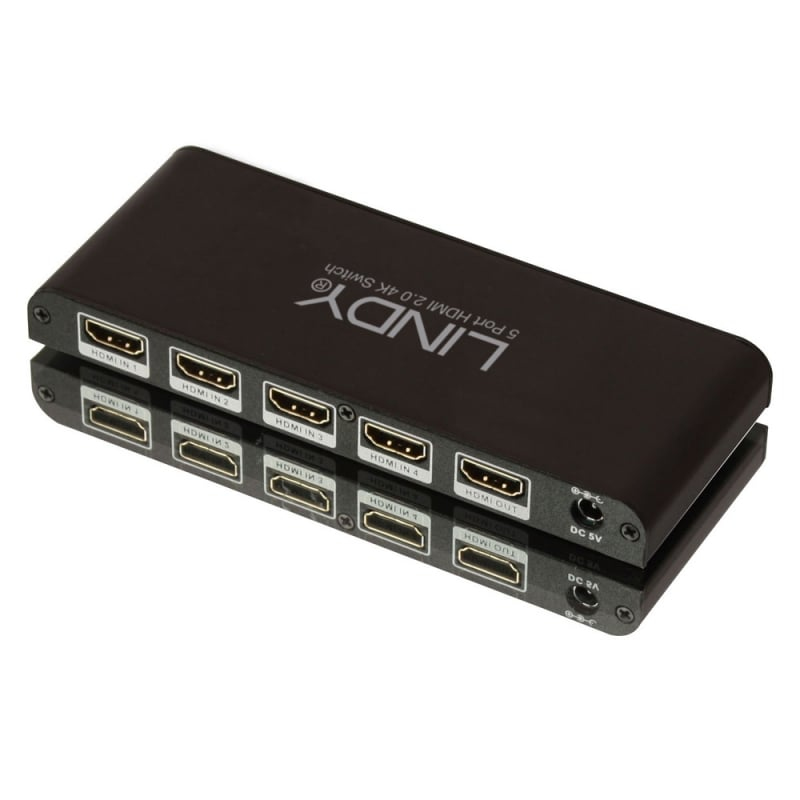

38224 video switch HDMI
Model 38224EAN 4002888382243
35 specifications
- ColourBlack
- Video port typeHDMI
- AC adapter output voltage5 V
- Width155 mm
- Operating temperature (T-T)0 - 40 °C
- Connector typeHDMI A
Overview
- Colour
- Black
- Video port type
- HDMI
- AC adapter output voltage
- 5 V
- Width
- 155 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Connector type
- HDMI A
- Brand
- Lindy
- Category
- Video Switch
- Model
- 38224
- Part number
- 38224
- EAN / UPC
- 4002888382243
- Also known as
- Lindy 38224 video switch HDMI
Specifications
35 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| Video in | 5 |
| Video out | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 300 MHz |
| Colour depth | 24 bit |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| External power adapter | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| LED indicators | Yes |
| Maximum operating distance | 20 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |

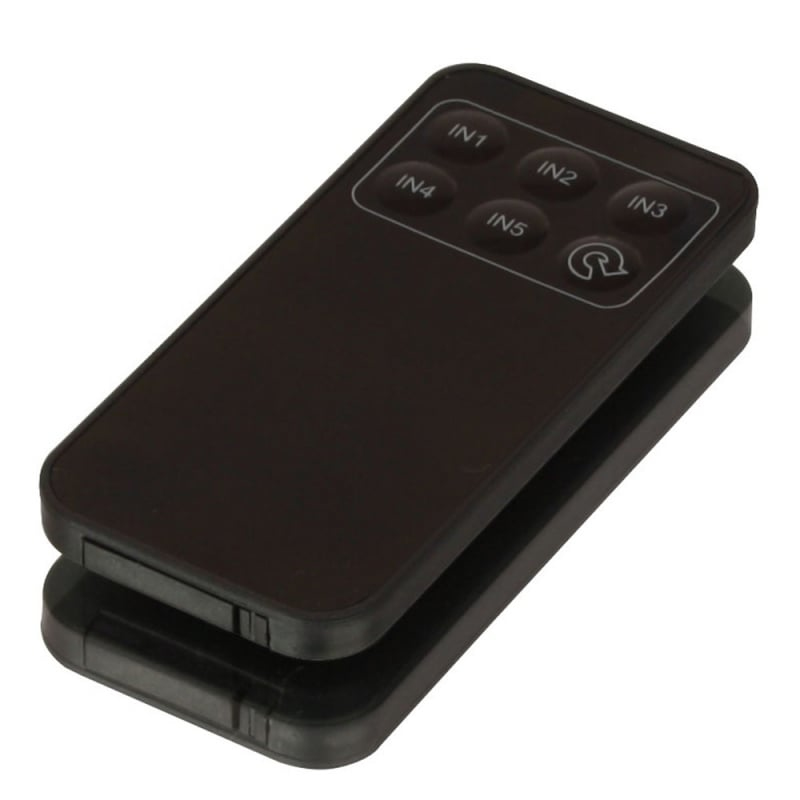

| Remote control type | IR |
| Supported video modes | 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 64 mm |
| Height | 17 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Connector type | HDMI A |
