38162 video switch HDMI
Model 38162EAN 4002888381628
36 specifications
- Weight2.3 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC adapter input voltage110 - 240 V
- Width440 mm
Overview
- Weight
- 2.3 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC adapter input voltage
- 110 - 240 V
- Width
- 440 mm
- Brand
- Lindy
- Category
- Video Switch
- Model
- 38162
- Part number
- 38162
- EAN / UPC
- 4002888381628
- Also known as
- Lindy 38162 video switch HDMI
Specifications
36 specifications in 9 groups

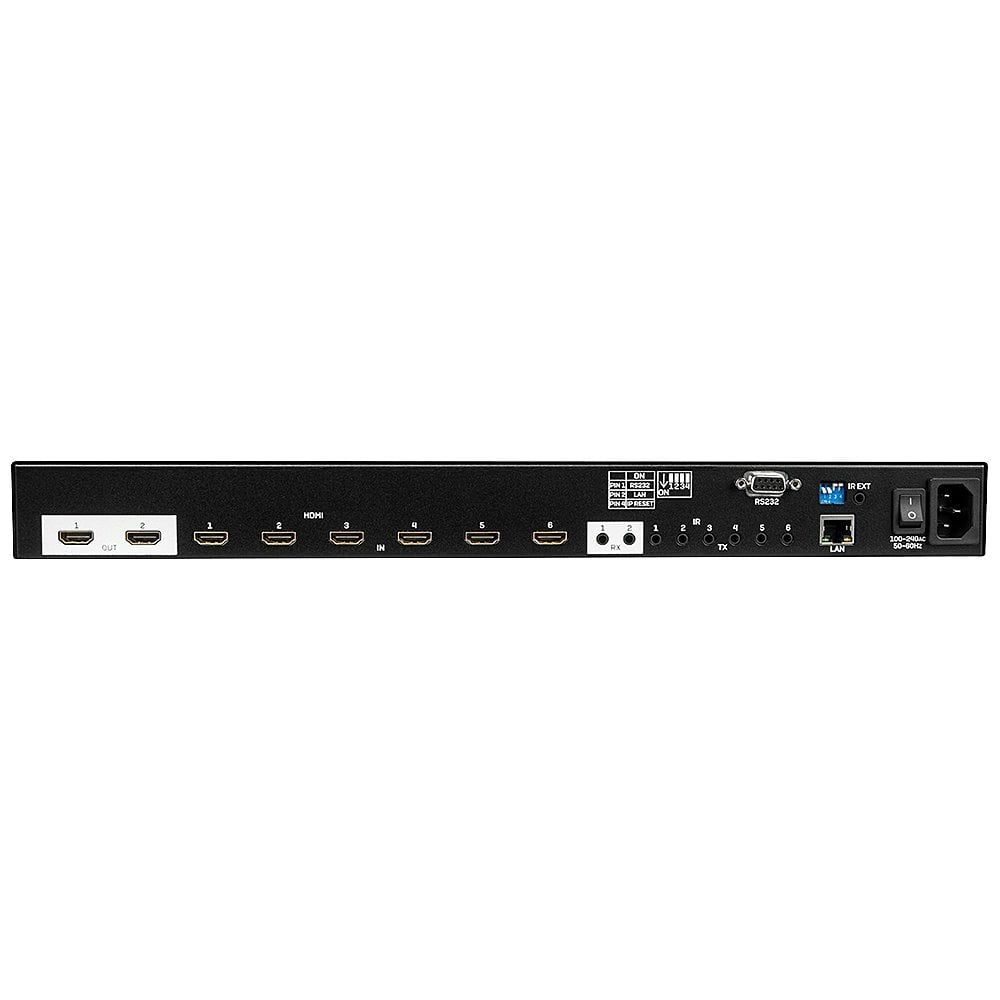

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| HDMI in | 6 |
| Number of HDMI outputs | 2 |
| RJ-45 input ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Bandwidth | 18 Gbit/s |

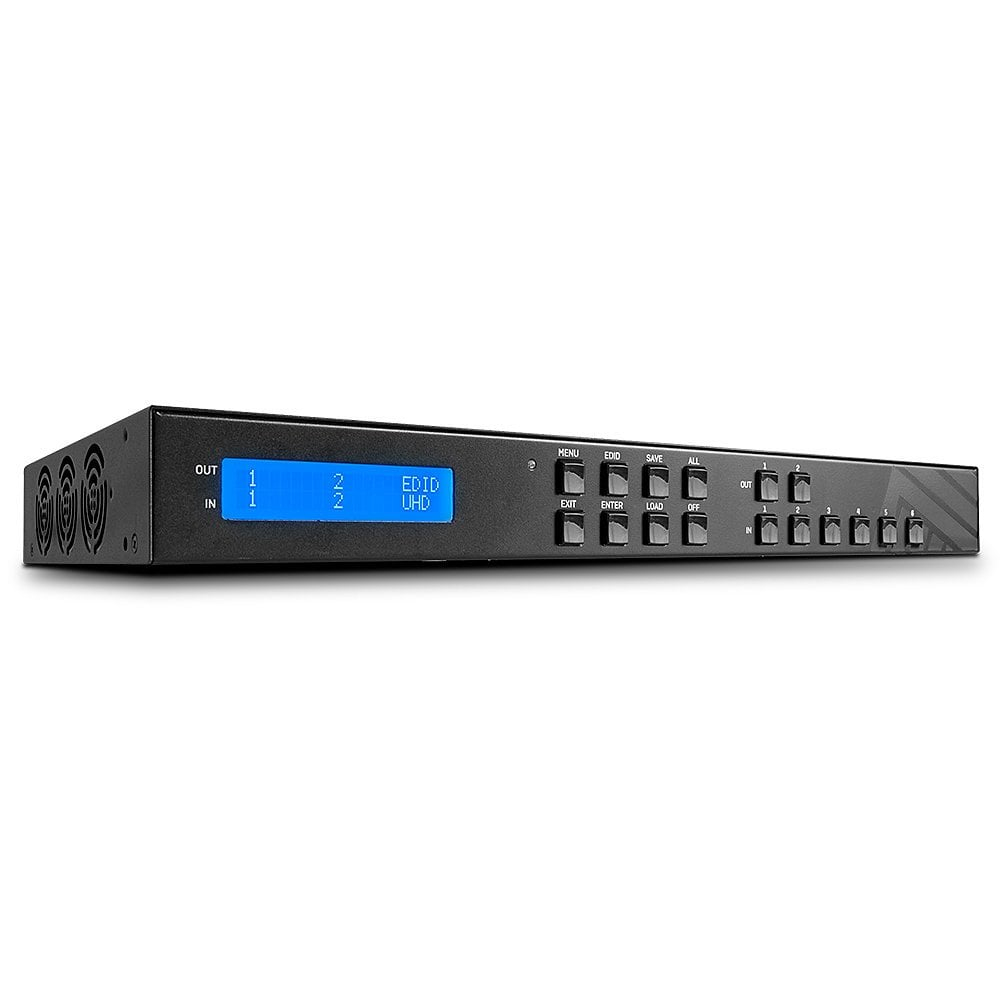

| Display type | LCD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Supported graphics resolutions | 4096 x 2160 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 110 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 198 mm |
| Height | 43 mm |
| Weight | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Carton box |
| Package width | 490 mm |
| Package depth | 290 mm |
| Package height | 95 mm |
| Package weight | 3.09 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Cables included | IR |
| Manual | Yes |

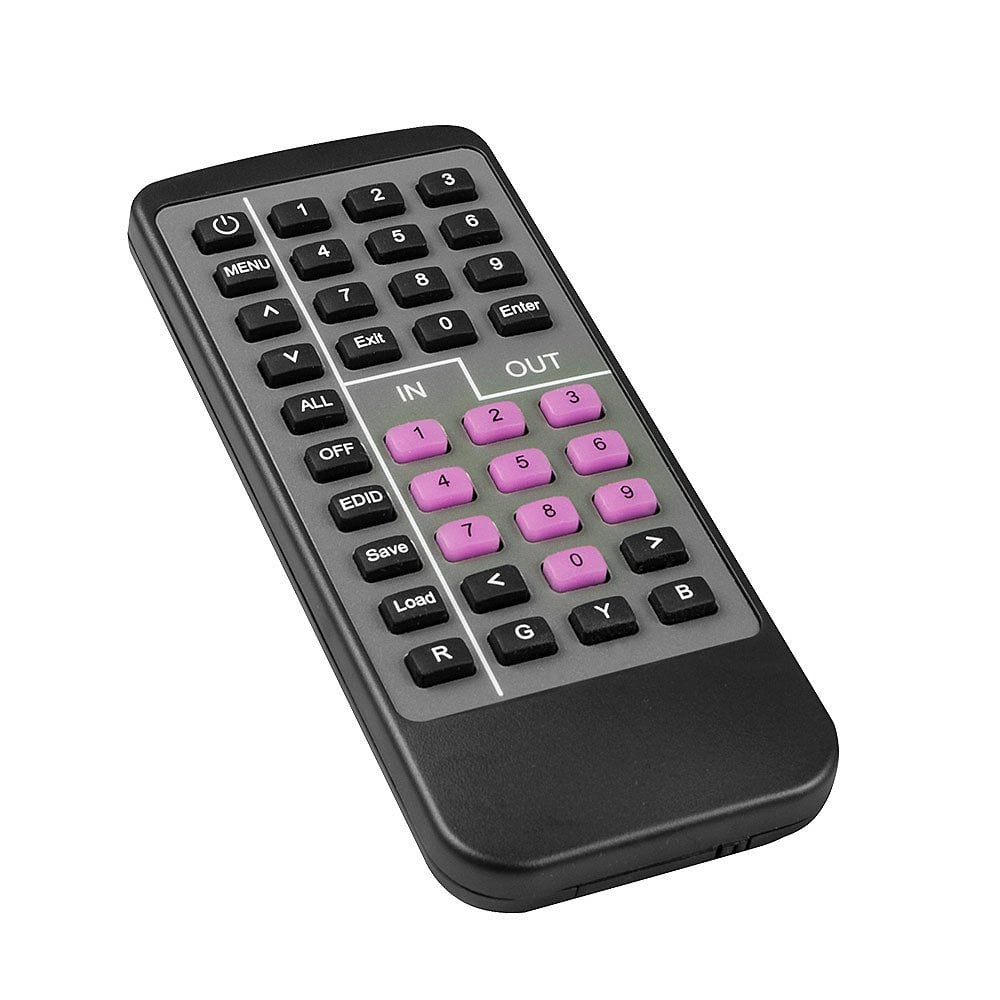

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
