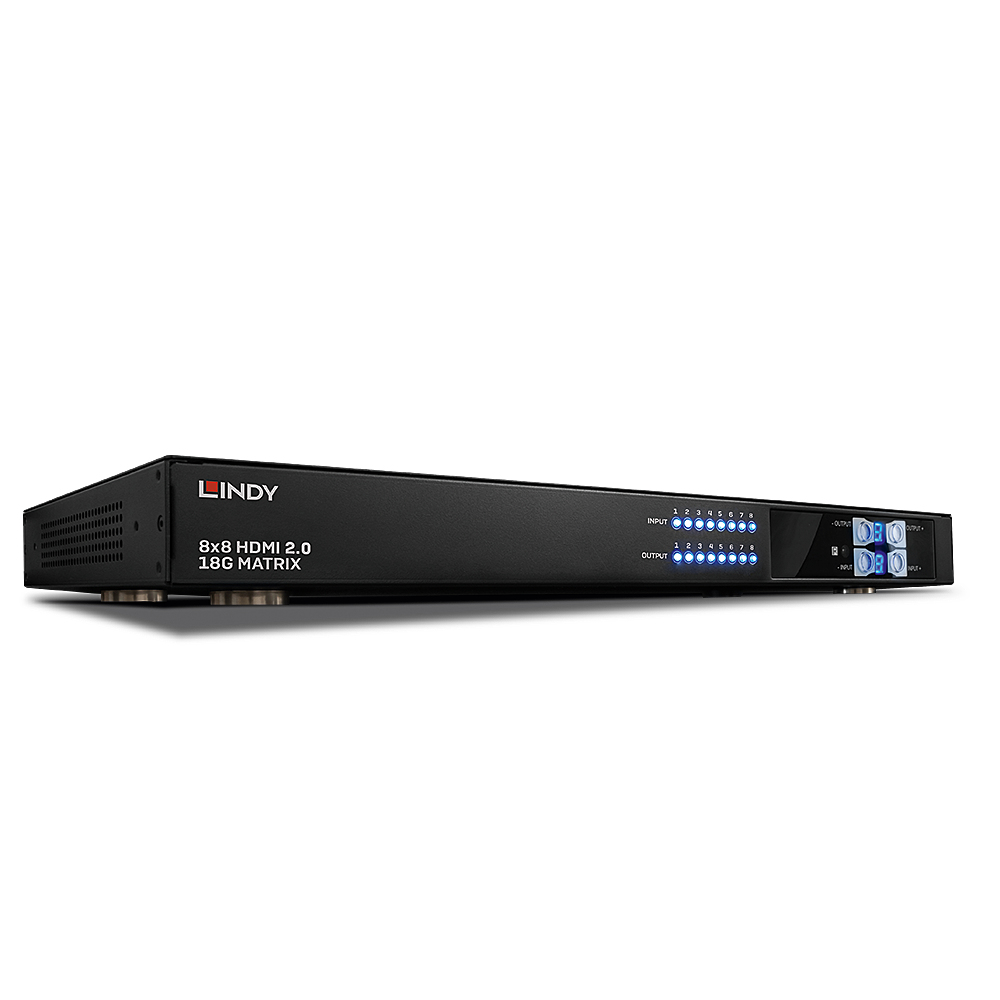

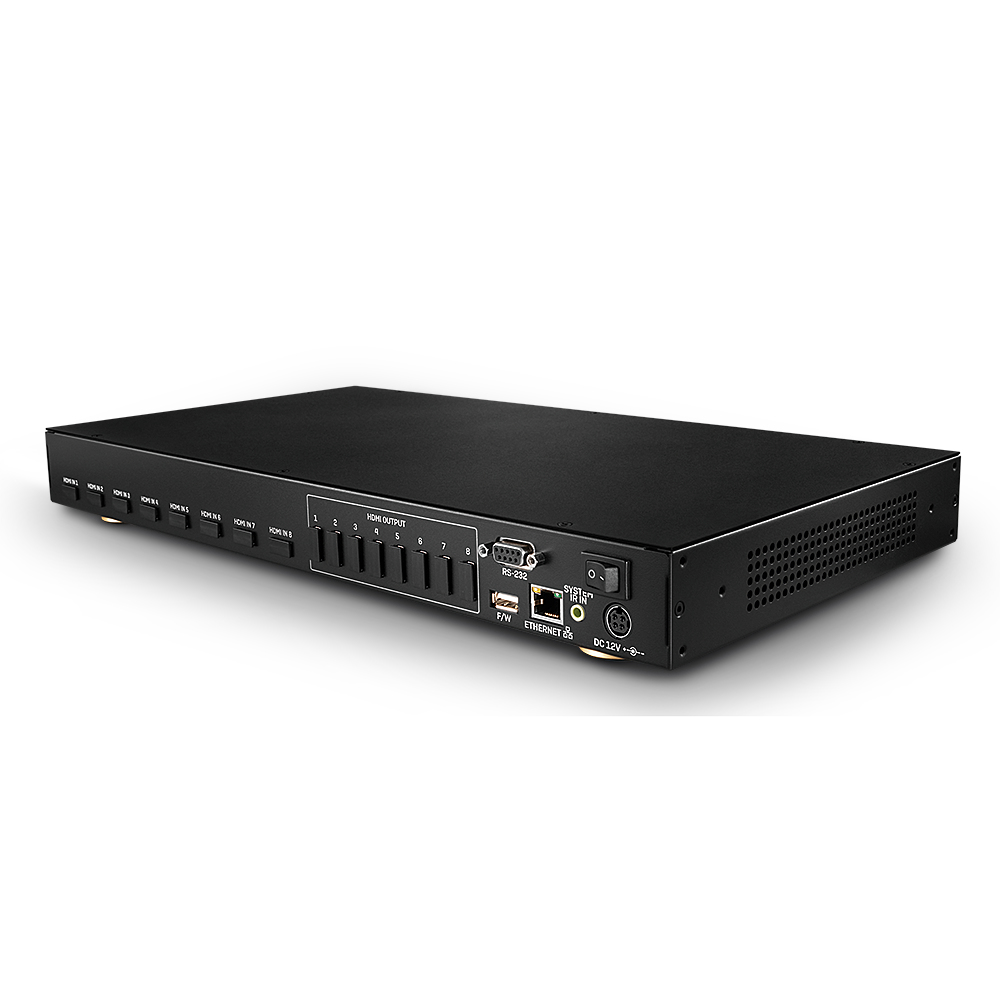

38160 video switch HDMI
Model 38160EAN 4002888381604
38 specifications
- Weight2.68 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC adapter output voltage12 V
- Width440 mm
Overview
- Weight
- 2.68 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC adapter output voltage
- 12 V
- Width
- 440 mm
- Brand
- Lindy
- Category
- Video Switch
- Model
- 38160
- Part number
- 38160
- EAN / UPC
- 4002888381604
- Also known as
- Lindy 38160 video switch HDMI
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 16 |
| HDMI version | 2.0 |
| HDMI in | 8 |
| Number of HDMI outputs | 8 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Audio decoders | DTS-HD, Dolby TrueHD |
| Audio formats supported | LPCM |
| Bandwidth | 18 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Remote control type | IR |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 7.5 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 44 mm |
| Height | 22 mm |
| Weight | 2.68 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 543 mm |
| Package depth | 335 mm |
| Package height | 344 mm |
| Package weight | 3.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Cables included | AC, IR |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
