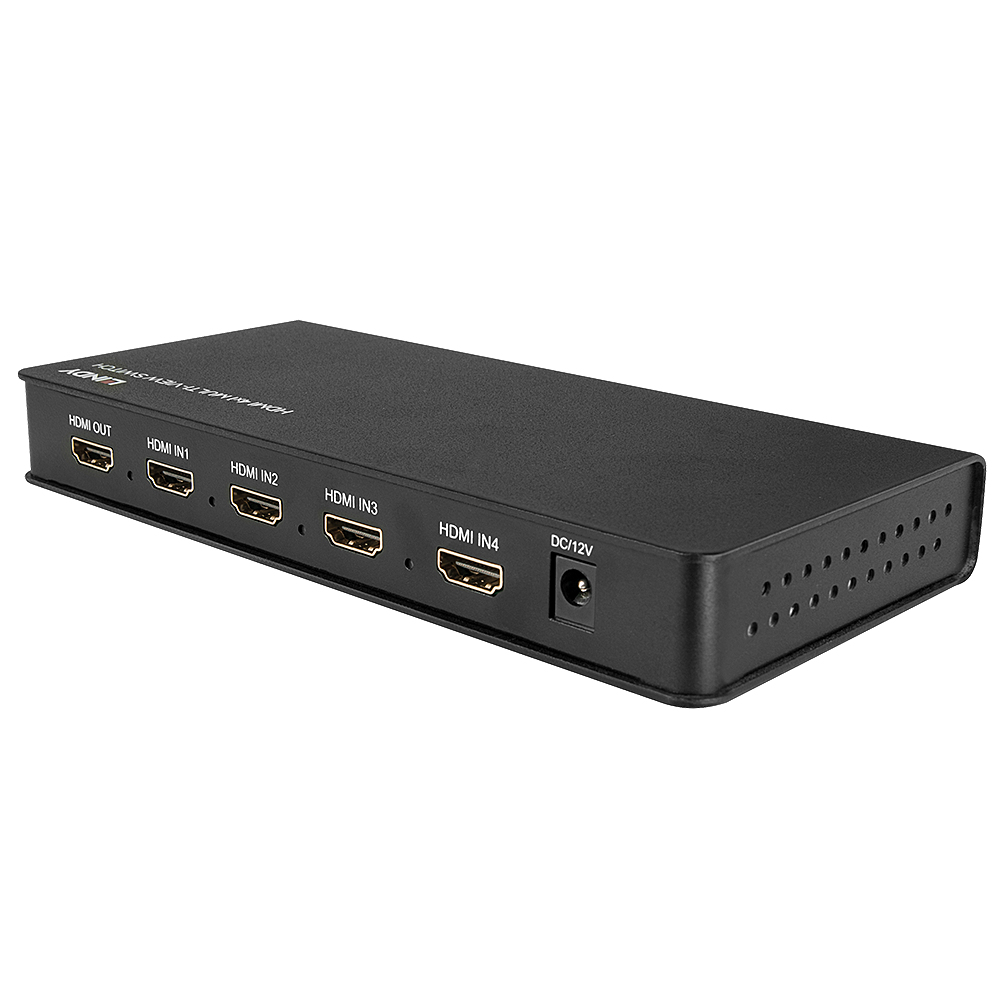

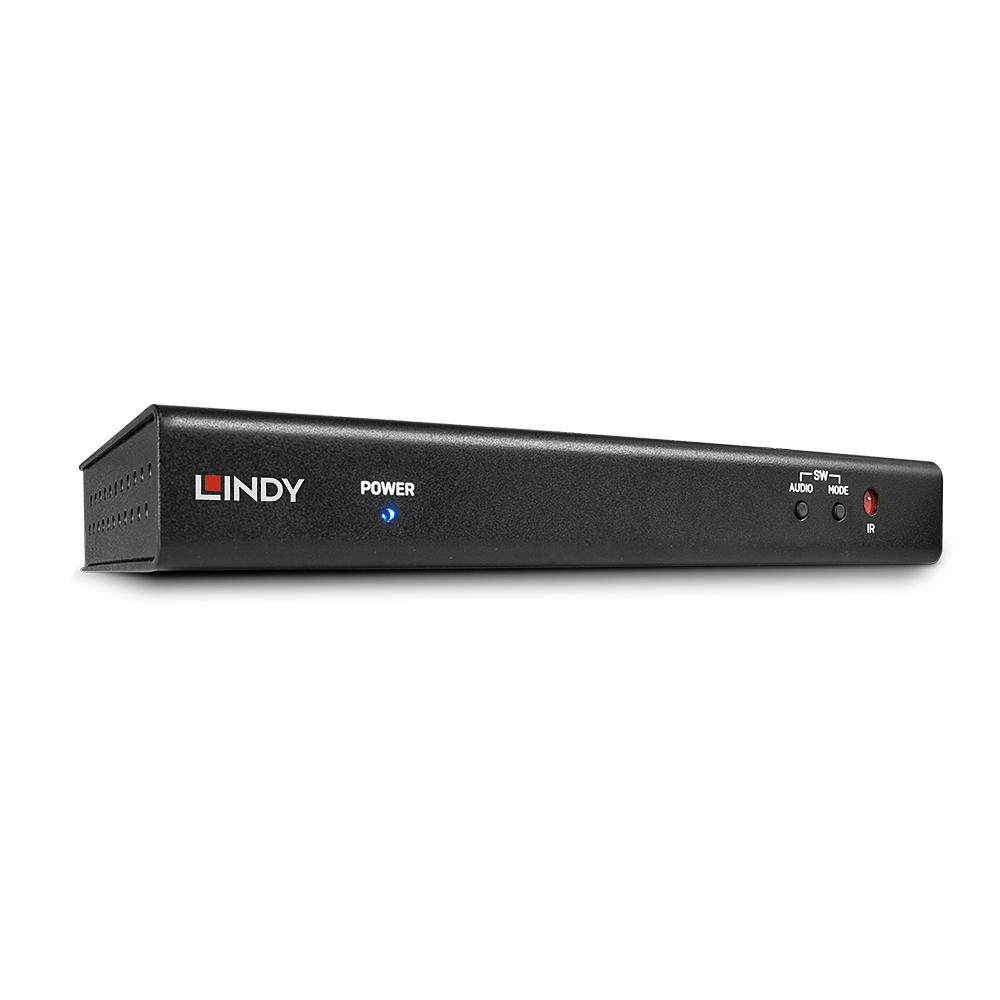

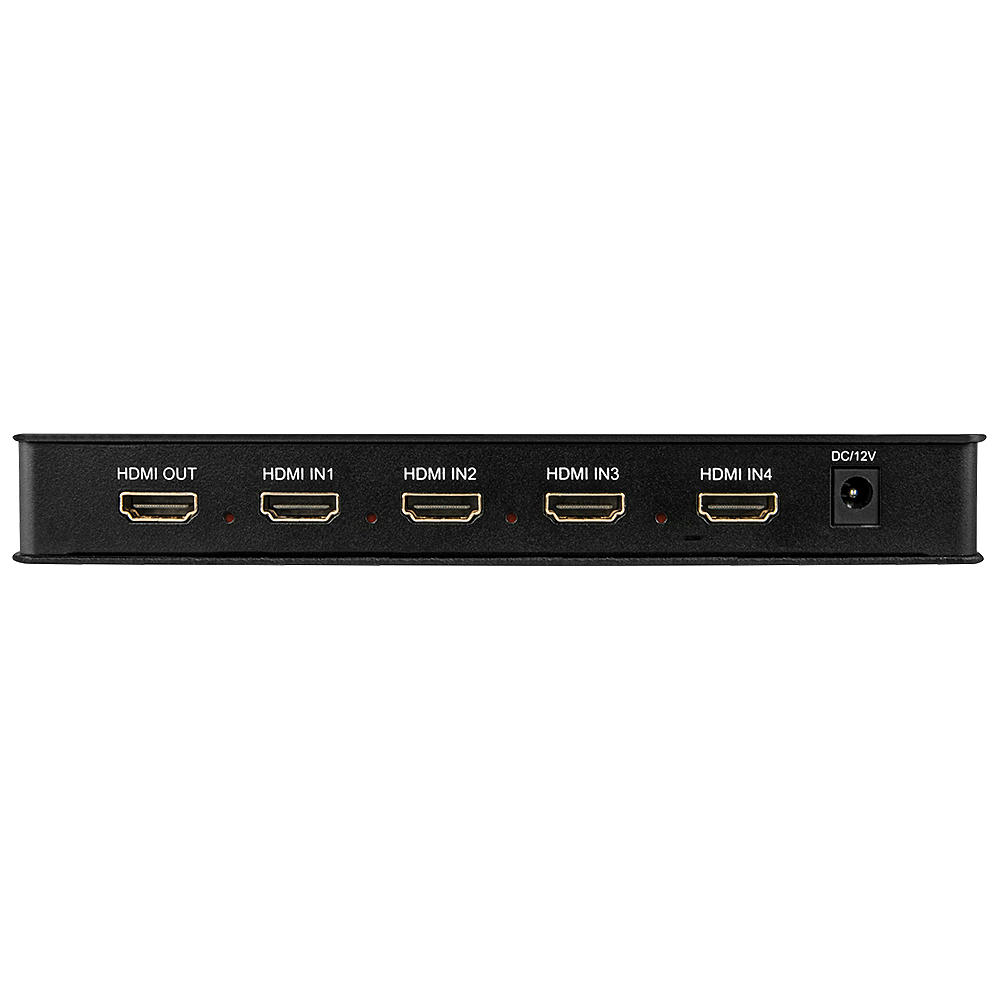

HDMI 4 Port Multi-View Switch
Model 38150EAN 4002888381505
26 specifications
- Video port typeHDMI
- Audio formats supportedPCM
- AC adapter output voltage12 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Video port type
- HDMI
- Audio formats supported
- PCM
- AC adapter output voltage
- 12 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Lindy
- Category
- Video Switch
- Model
- 38150
- Part number
- 38150
- EAN / UPC
- 4002888381505
- Also known as
- Lindy HDMI 4 Port Multi-View Switch
Specifications
26 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 1.3a |
| Video in | 4 |
| Video out | 1 |
Features
| Specification | Value |
|---|---|
| Audio formats supported | PCM |
| Colour depth | 8 bit |
| HD type | Full HD |
| HDCP | Yes |
| LED indicators | Yes |
| Maximum operating distance | 15 m |
| Maximum resolution | 1920 x 1080 pixels |
| Remote control type | IR |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power consumption (typical) | 6 W |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 40 - 60% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
