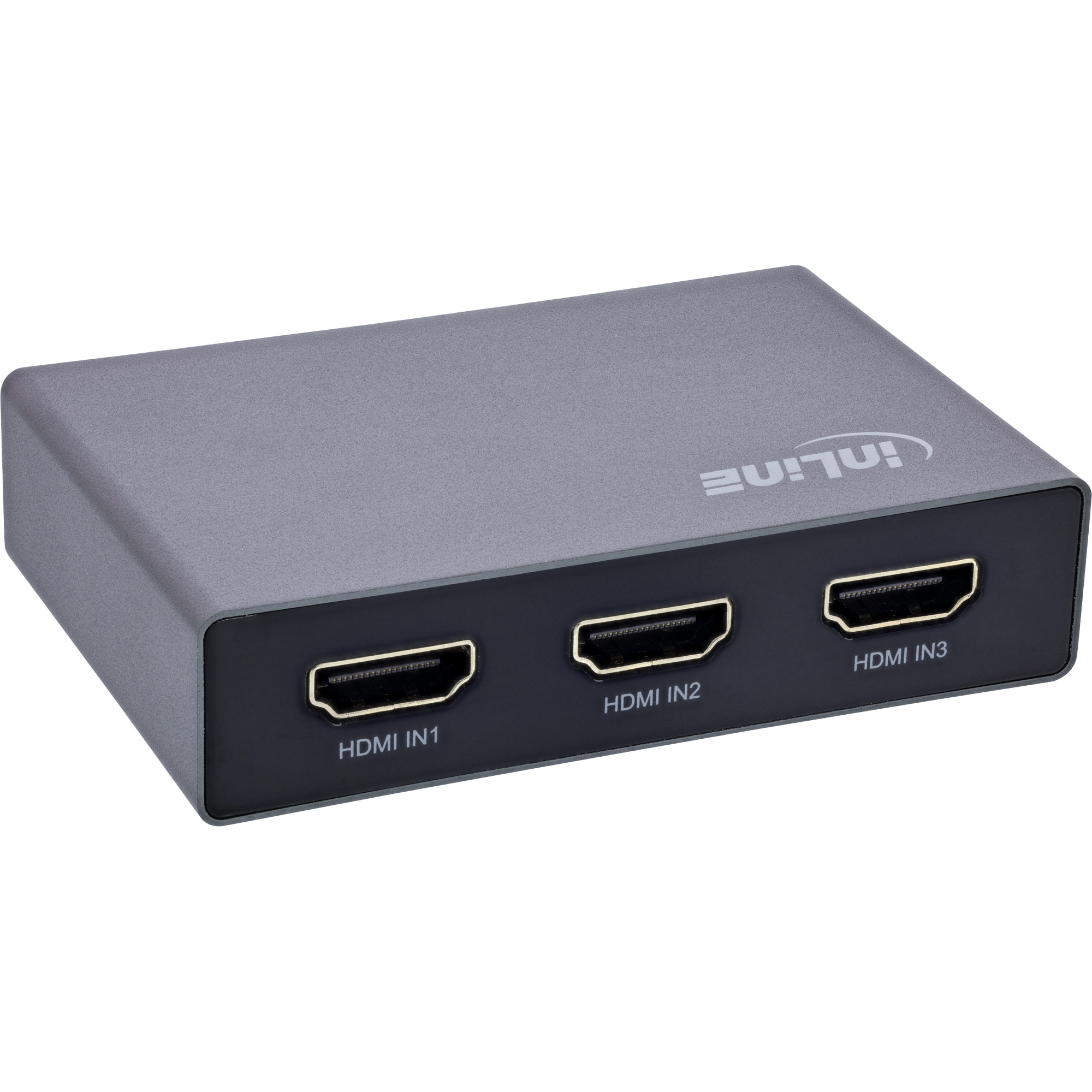

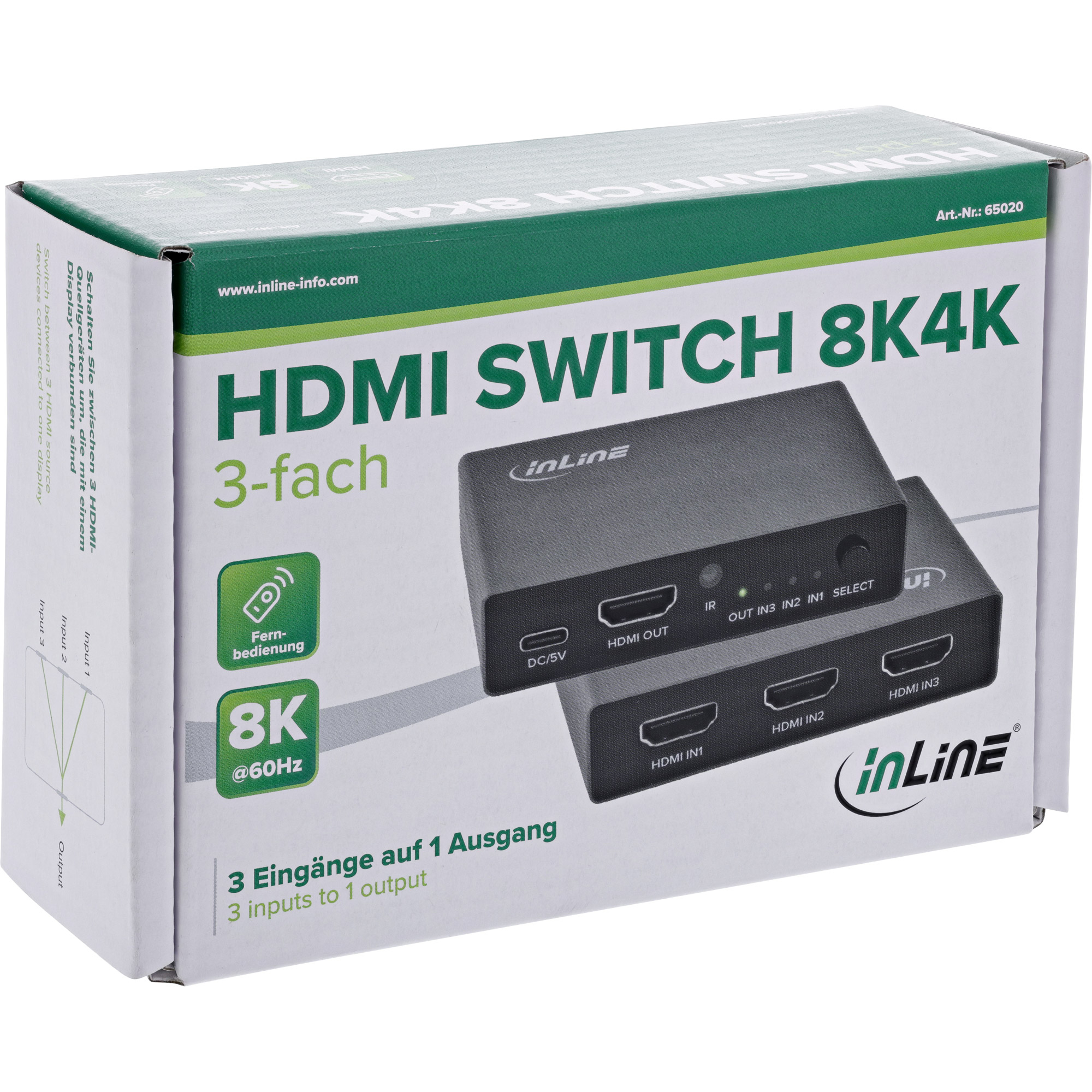

65020 video switch HDMI
Model 65020EAN 4043718340583
30 specifications
- Weight89 g
- ColourBlack
- Video port typeHDMI
- AC adapter input voltage5 V
- Width55 mm
- Operating temperature (T-T)-15 - 55 °C
Overview
- Weight
- 89 g
- Colour
- Black
- Video port type
- HDMI
- AC adapter input voltage
- 5 V
- Width
- 55 mm
- Operating temperature (T-T)
- -15 - 55 °C
- Brand
- InLine
- Category
- Video Switch
- Model
- 65020
- Part number
- 65020
- EAN / UPC
- 4043718340583
- Also known as
- InLine 65020 video switch HDMI
Specifications
30 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.1 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Audio decoders | DSD, DTS, DTS-HD, Dolby AC3, Dolby TrueHD |
| Colour depth | 36 bit |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.3 |
| LED indicators | Yes |
| Maximum operating distance | 2 m |
| Maximum refresh rate | 144 Hz |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 2160p, 4320p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 5 V |
| AC adapter input current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 82 mm |
| Height | 20 mm |
| Weight | 89 g |
| Dimensions (WxDxH) | 55 x 82 x 20 mm |
Packaging data
| Specification | Value |
|---|---|
| Package volume | 4800 cm³ |
Packaging content
| Specification | Value |
|---|---|

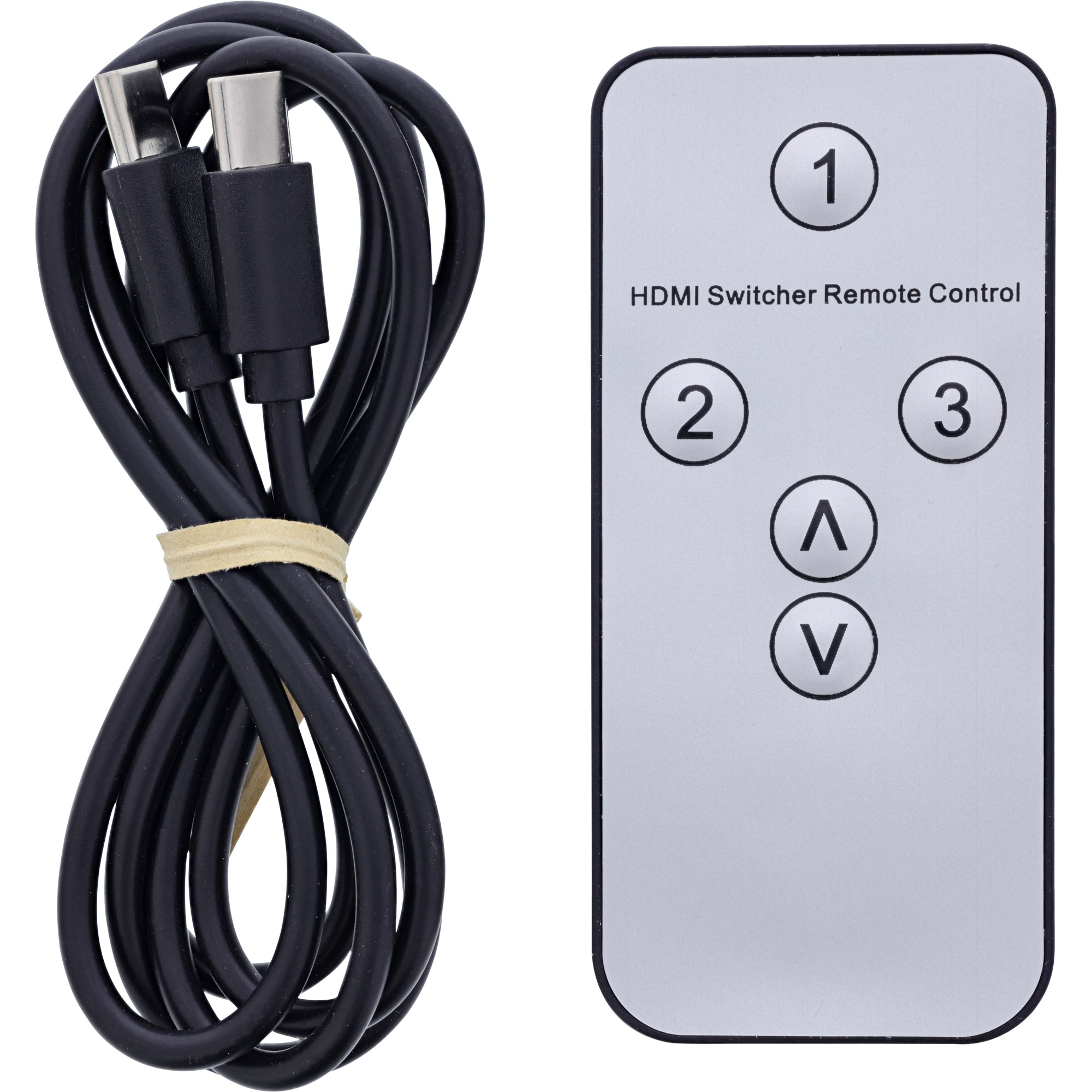

| Cables included | USB Type-C |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, TÜV mark |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Similar products
All video switches
ATEN

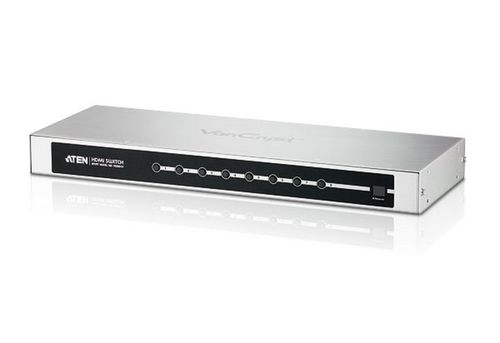

8-Port HDMI Audio/Video Switch with IR Remote Control
Model VS0801H-AT-G
- Weight
- 2 kg
- Colour
- Black, Silver
- Video port type
- HDMI
ATEN

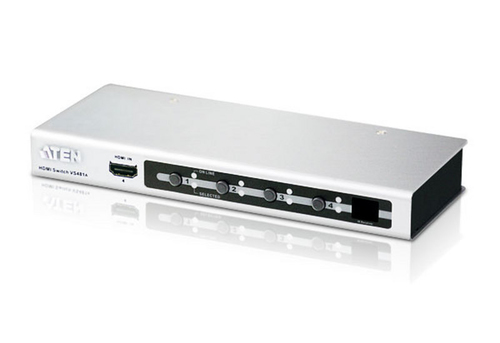

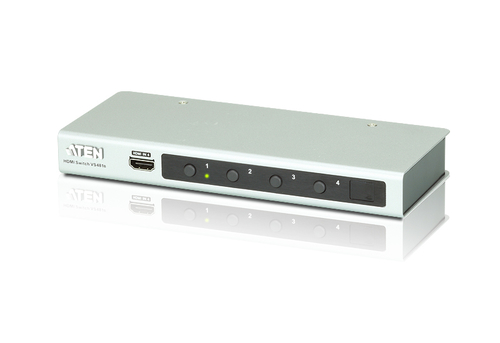

4-Port HDMI Audio/Video Switch with IR Remote Control
Model VS481A-AT-G
- Weight
- 670 g
- Colour
- Silver
- Video port type
- HDMI
Microconnect

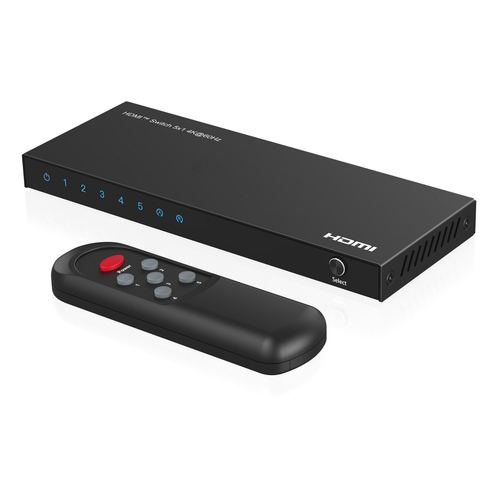

MC-HDMISWITCH0501-4K video switch
Model MC-HDMISWITCH0501-4K
- Weight
- 205 g
- Colour
- Black
- HDMI ports quantity
- 6
Microconnect

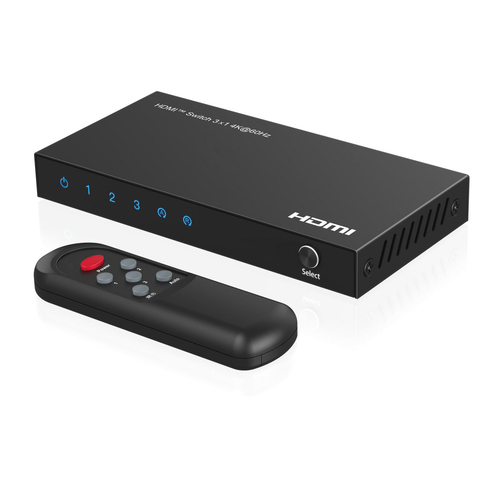

MC-HDMISWITCH0301-4K video switch
Model MC-HDMISWITCH0301-4K
- Weight
- 140 g
- Colour
- Black
- HDMI ports quantity
- 4
ATEN
4-Port 4K HDMI Audio/Video Switch with IR Remote Control
Model VS481B-AT-G
- Weight
- 659 g
- Colour
- Silver
- Video port type
- HDMI
Microconnect

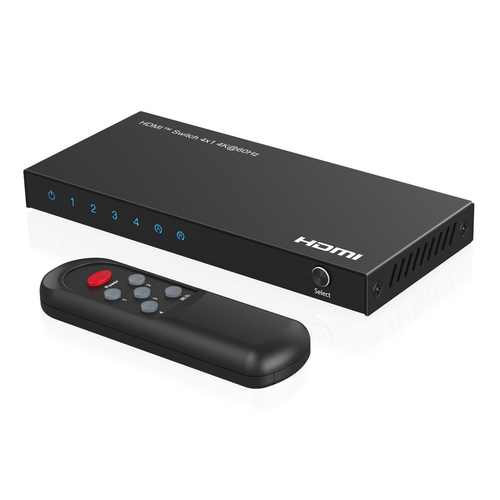

MC-HDMISWITCH0401-4K video switch
