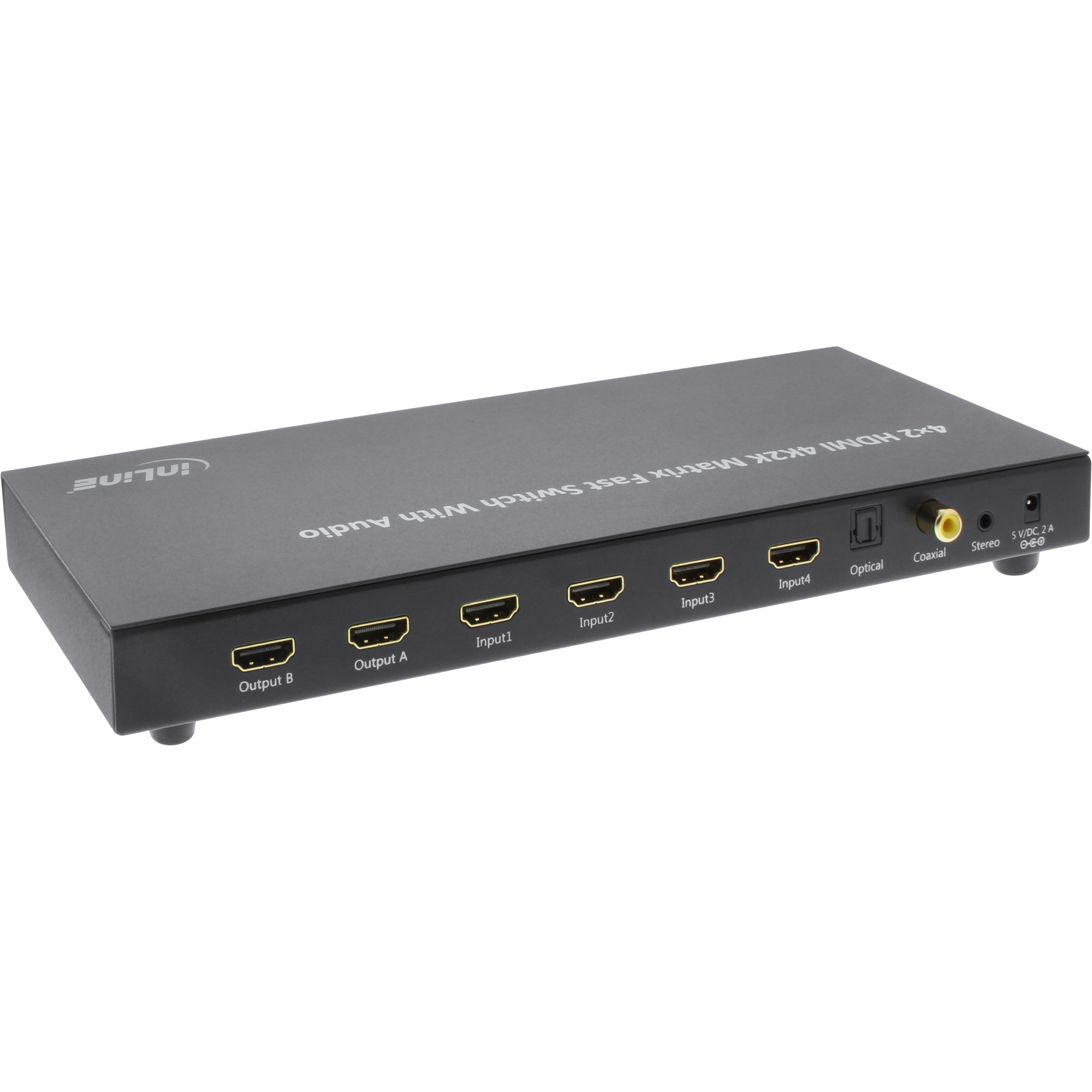

HDMI Matrix Switch, 4K2K, 4 inputs to 2 outputs
Model 65011KEAN 4043718232000
24 specifications
- Weight889 g
- ColourBlack
- Video port typeHDMI
- Power consumption (typical)2.5 W
- Width270 mm
Overview
- Weight
- 889 g
- Colour
- Black
- Video port type
- HDMI
- Power consumption (typical)
- 2.5 W
- Width
- 270 mm
- Brand
- InLine
- Category
- Video Switch
- Model
- 65011K
- Part number
- 65011K
- EAN / UPC
- 4043718232000
- Also known as
- InLine HDMI Matrix Switch, 4K2K, 4 inputs to 2 outputs
Specifications
24 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Video in | 4 |
| Video out | 2 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 3.4 Gbit/s |
| Bandwidth | 340 MHz |
| Cable length | 10 m |
| Colour depth | 12 bit |
| HDCP | Yes |
| Supported video modes | 1080p |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 120 mm |
| Height | 35 mm |
| Weight | 889 g |
| Dimensions (WxDxH) | 270 x 120 x 35 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 242 mm |
| Package depth | 355 mm |
| Package height | 58 mm |
| Package weight | 1.16 kg |
| Package volume | 5000 cm³ |
