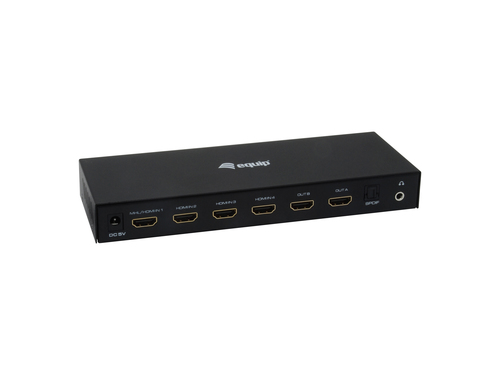

4x2 HDMI Matrix Switch
Model 33271903EAN 4015867197486
37 specifications
- Weight550 g
- ColourBlack
- Video port typeHDMI
- AC adapter input voltage100 - 240 V
- Width199 mm
- Operating temperature (T-T)-15 - 55 °C
Overview
- Weight
- 550 g
- Colour
- Black
- Video port type
- HDMI
- AC adapter input voltage
- 100 - 240 V
- Width
- 199 mm
- Operating temperature (T-T)
- -15 - 55 °C
- Brand
- Equip
- Category
- Video Switch
- Model
- 33271903
- Part number
- 33271903
- EAN / UPC
- 4015867197486
- Also known as
- Equip 4x2 HDMI Matrix Switch
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Colour depth | 48 bit |
| Maximum operating distance | 25 m |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 199 mm |
| Depth | 75 mm |
| Height | 30 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Equip Gift Box |
| Package width | 237 mm |
| Package depth | 59 mm |
| Package height | 58 mm |
| Package weight | 560 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | MHL |
| Manual | Yes |

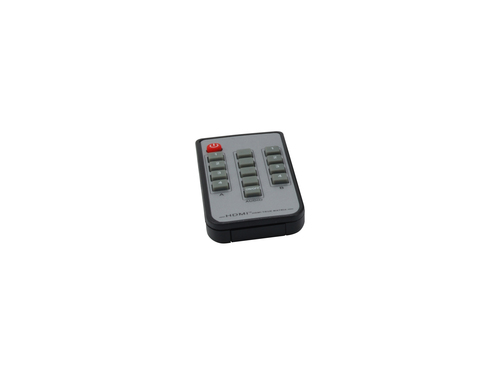

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 490 mm |
| Master (outer) case gross weight | 12 kg |
| Products per master (outer) case | 20 pc(s) |
