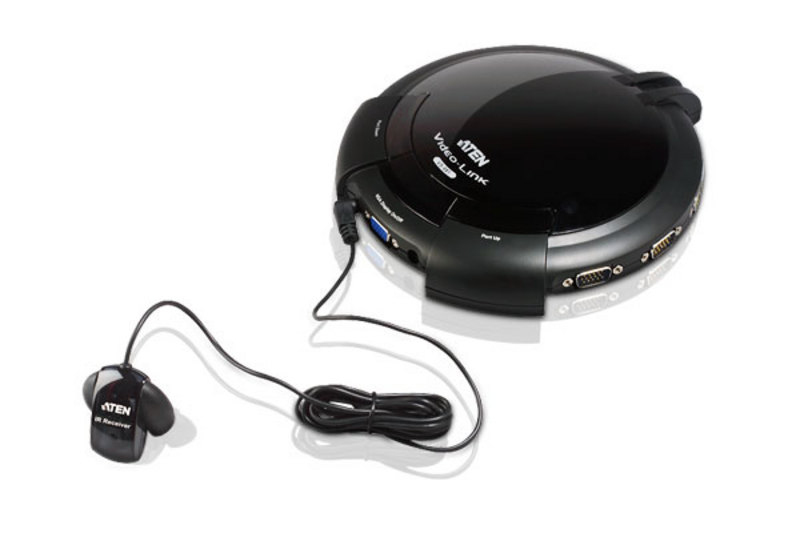

VS881-AT-G video switch VGA
Model VS881-AT-G
17 specifications
- ColourBlack
- Video port typeVGA
- MaterialPlastic
- Power consumption (typical)1.22 W
- Width191.3 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Colour
- Black
- Video port type
- VGA
- Material
- Plastic
- Power consumption (typical)
- 1.22 W
- Width
- 191.3 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS881-AT-G
- Part number
- VS881-AT-G
- Also known as
- ATEN VS881-AT-G video switch VGA
Specifications
17 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | VGA |
| VGA (D-Sub) input ports | 8 |
| VGA (D-Sub) output ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Plastic |
| Product colour | Black |
| Bandwidth | 300 MHz |
| Maximum operating distance | 10 m |
| Maximum resolution | 1920 x 1440 pixels |
| Output impedance | 75 Ω |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.22 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 191.3 mm |
| Depth | 173.5 mm |
| Height | 45 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
