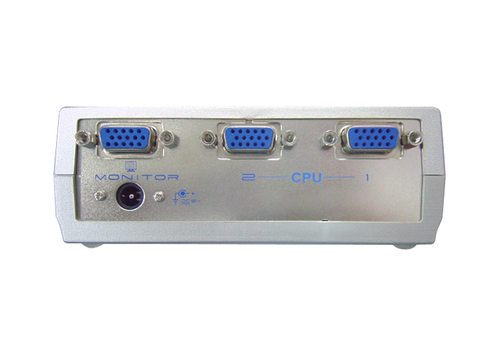

ATEN VS291 video switch VGA
Model VS291EAN 6727921020040
26 specifications
- Weight150 g
- ColourSilver
- Video port typeVGA
- MaterialMetal, Plastic
- Power consumption (typical)0.9 W
- Width120 mm
Overview
- Weight
- 150 g
- Colour
- Silver
- Video port type
- VGA
- Material
- Metal, Plastic
- Power consumption (typical)
- 0.9 W
- Width
- 120 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS291
- Part number
- VS291
- EAN / UPC
- 6727921020040, 132017638621, 672792102004, 4571106791520 +2 more
- Also known as
- ATEN VS291 video switch VGA
Specifications
26 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 2 |
| Video in | 2 x HDB-15 Female (Blue) |
| Video out | 1 x HDB-15 Female (Blue) |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal, Plastic |
| Product colour | Silver |
| 3D | No |
| Bandwidth | 150 MHz |
| Input impedance | 75 Ω |
| Maximum operating distance | 10 m |
| Maximum resolution | 1920 x 1440 pixels |
| Output impedance | 75 Ω |
| Rack capacity | 1U |
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 0.9 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 65.2 mm |
| Height | 44 mm |
| Weight | 150 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
