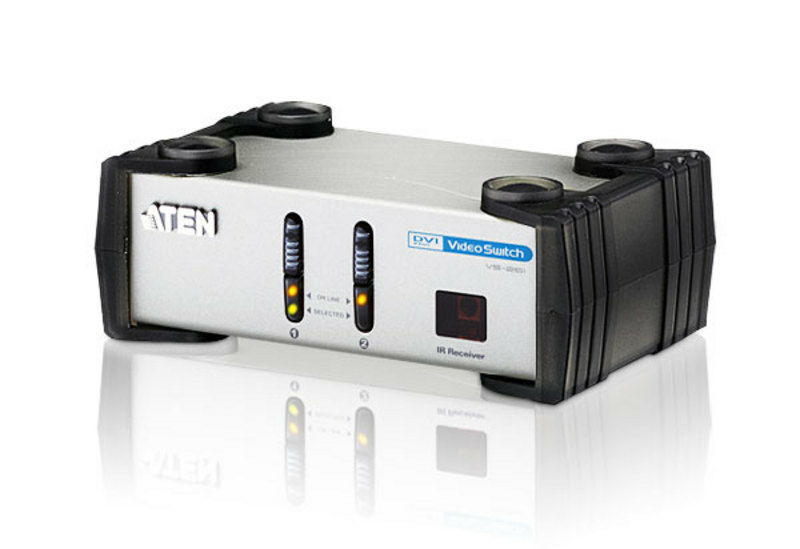

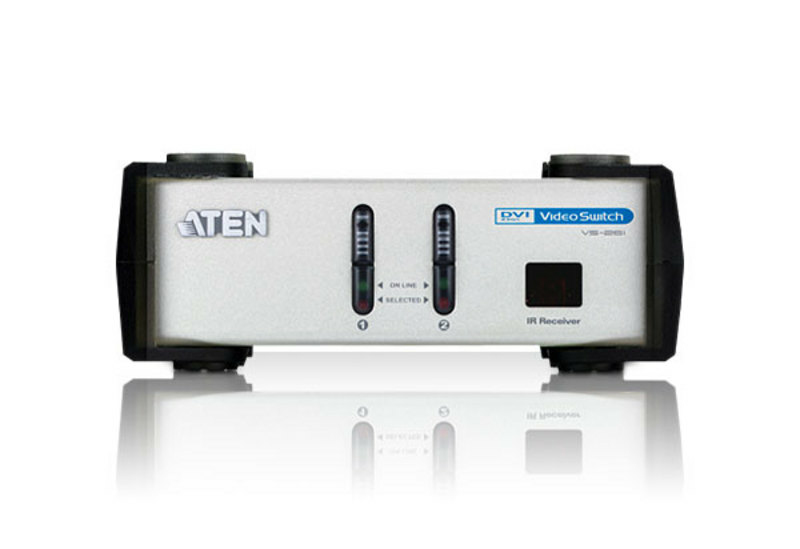

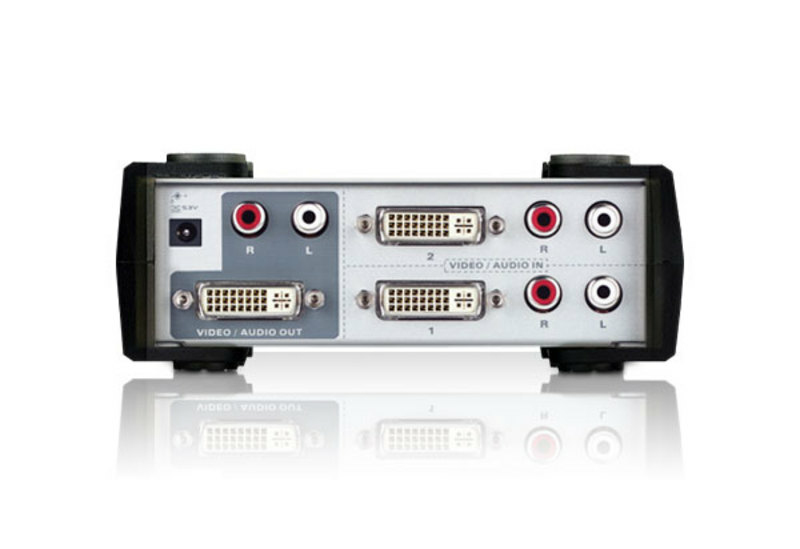

VS261-AT-G video switch DVI
Model VS261-AT-G
21 specifications
- Weight500 g
- ColourBlack, Silver
- Video port typeDVI
- MaterialMetal
- Width140 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 500 g
- Colour
- Black, Silver
- Video port type
- DVI
- Material
- Metal
- Width
- 140 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS261-AT-G
- Part number
- VS261-AT-G
- Also known as
- ATEN VS261-AT-G video switch DVI
Specifications
21 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | DVI |
| DVI input ports | 2 |
| DVI output ports | 1 |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black, Silver |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| HDCP | Yes |
| Input impedance | 100 Ω |
| Maximum operating distance | 5 m |
| Maximum resolution | 1920 x 1200 pixels |
| Output impedance | 100 Ω |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 88 mm |
| Height | 55 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
