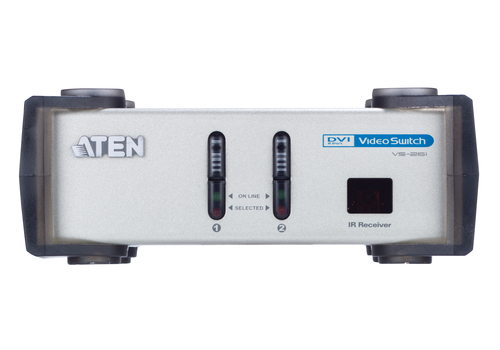

VS261 video switch DVI
Model VS261EAN 6727921515904
28 specifications
- Weight500 g
- ColourBlack, Silver
- Video port typeDVI
- MaterialMetal
- Power consumption (typical)1.91 W
- Width140 mm
Overview
- Weight
- 500 g
- Colour
- Black, Silver
- Video port type
- DVI
- Material
- Metal
- Power consumption (typical)
- 1.91 W
- Width
- 140 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS261
- Part number
- VS261
- EAN / UPC
- 6727921515904, 115971049627, 617407496413, 672792151590 +2 more
- Also known as
- ATEN VS261 video switch DVI
Specifications
28 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | DVI |
| HDMI ports quantity | 0 |

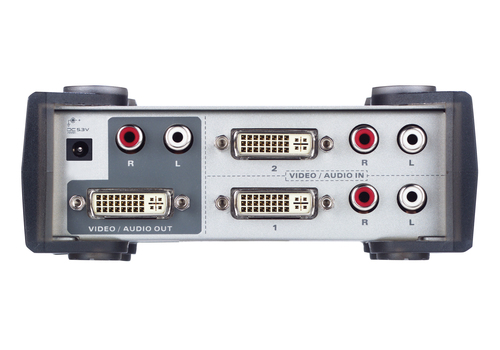

| Video in | 2 x DVI-I Female (White) |
| Video out | 1 x DVI-I Female (White) |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black, Silver |
| External power adapter | Yes |
| HDCP | Yes |
| Input impedance | 100 Ω |
| LED indicators | Yes |
| Maximum operating distance | 5 m |
| Maximum resolution | 1920 x 1200 pixels |
| Output impedance | 100 Ω |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.91 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 500 g |
| Depth (imperial) | 8.79 cm (3.46") |
| Height (imperial) | 5.56 cm (2.19") |
| Width (imperial) | 14 cm (5.51") |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 10 pc(s) |
