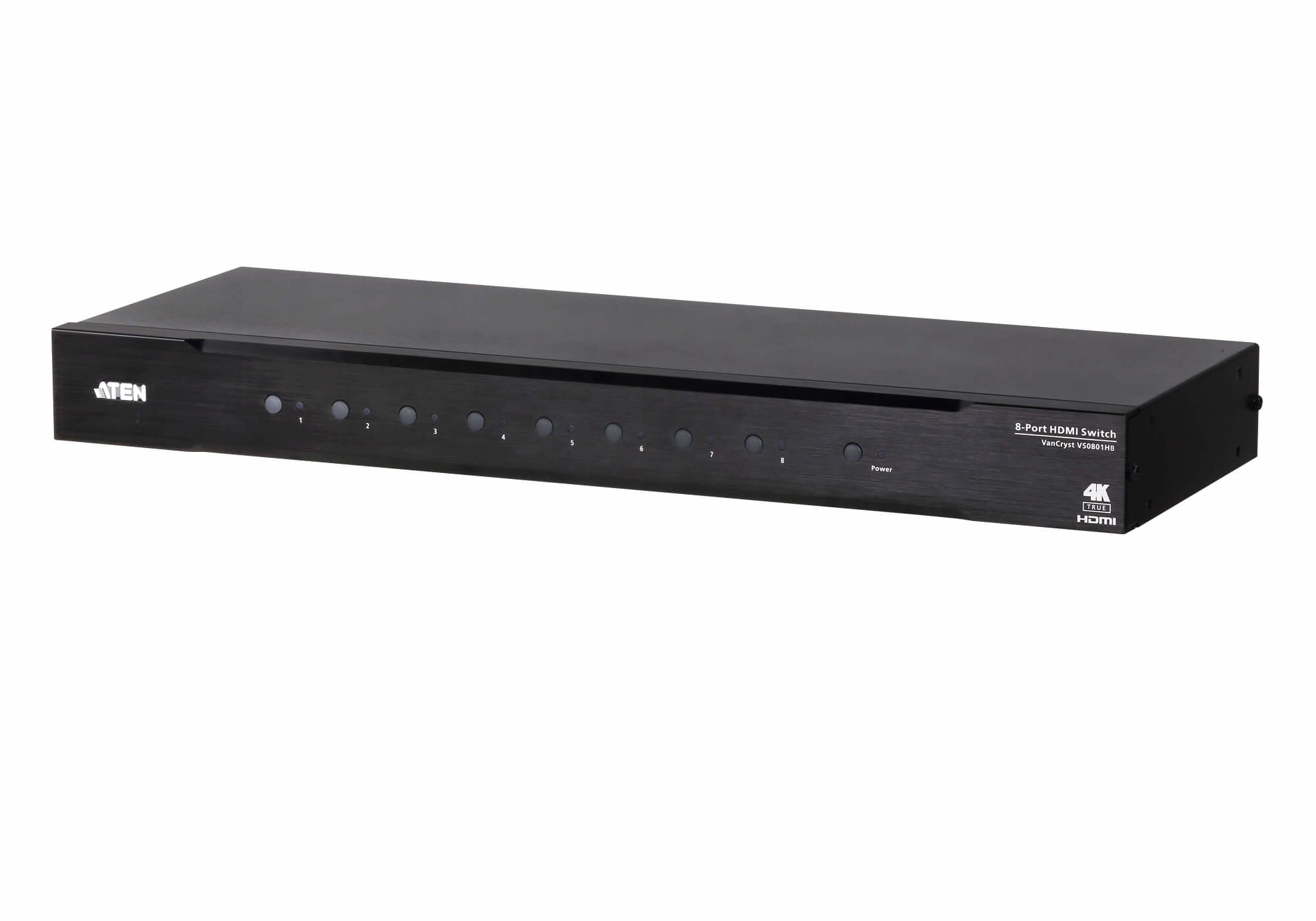

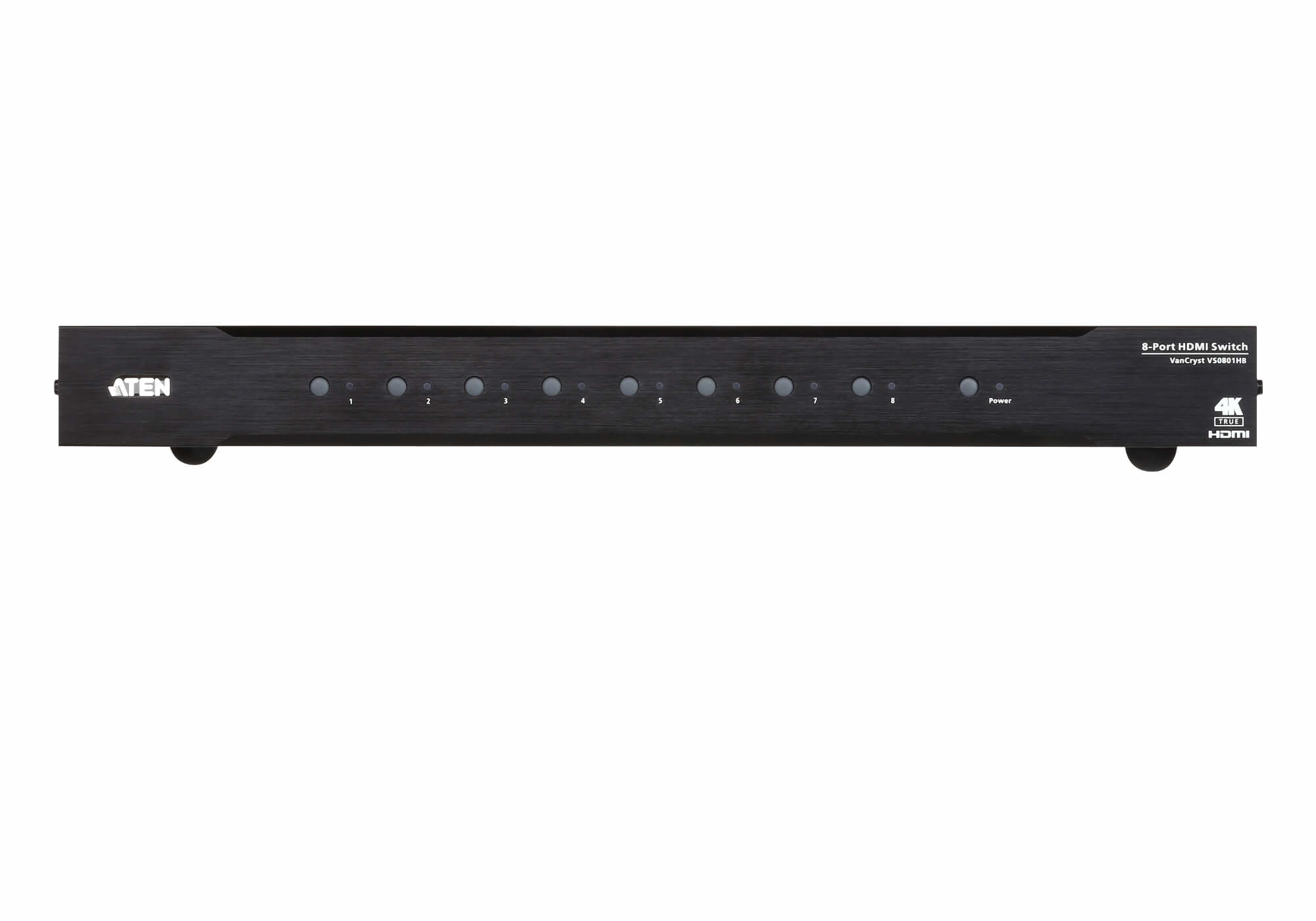

VS0801HB-AT-U video switch HDMI
Model VS0801HB-AT-U
29 specifications
- Weight2.14 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC adapter input voltage5.3 V
- Width158.3 mm
Overview
- Weight
- 2.14 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC adapter input voltage
- 5.3 V
- Width
- 158.3 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS0801HB-AT-U
- Part number
- VS0801HB-AT-U
- Also known as
- ATEN VS0801HB-AT-U video switch HDMI
Specifications
29 specifications in 5 groups

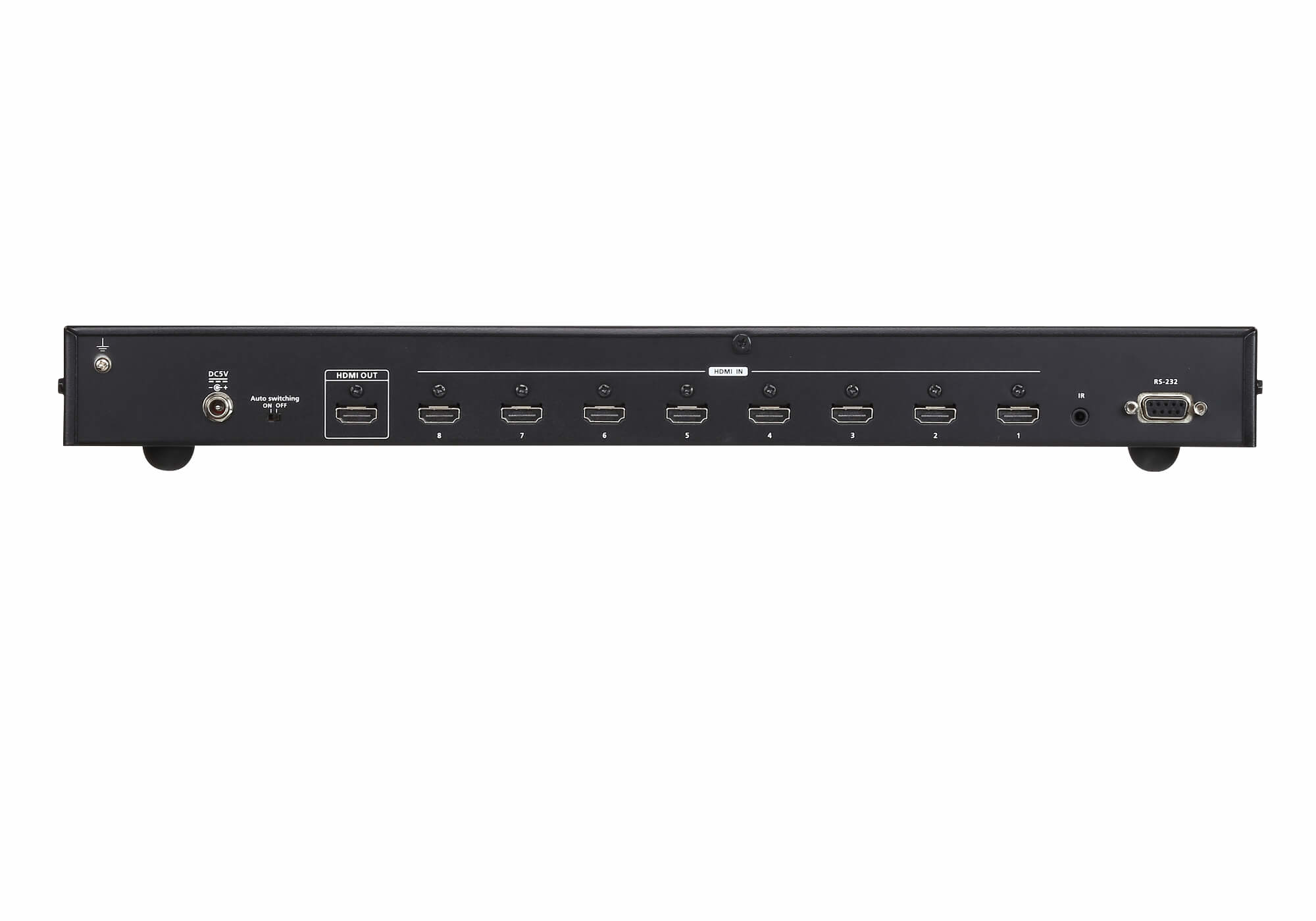

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| HDMI in | 8 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 6 Gbit/s |
| Bandwidth | 600 MHz |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Input impedance | 100 Ω |
| Maximum operating distance | 3 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Output impedance | 100 Ω |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 5.3 V |
| Power consumption (typical) | 3.73 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158.3 mm |
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2.14 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
