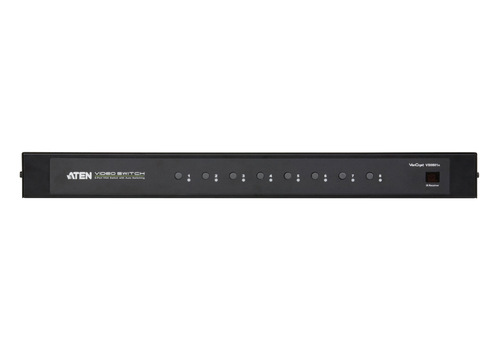

VS0801A-AT-U video switch VGA
Model VS0801A-AT-U
30 specifications
- Weight2.1 kg
- ColourBlack
- Video port typeVGA
- MaterialMetal
- AC adapter output voltage5.3 V
- Width159.8 mm
Overview
- Weight
- 2.1 kg
- Colour
- Black
- Video port type
- VGA
- Material
- Metal
- AC adapter output voltage
- 5.3 V
- Width
- 159.8 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS0801A-AT-U
- Part number
- VS0801A-AT-U
- Also known as
- ATEN VS0801A-AT-U video switch VGA
Specifications
30 specifications in 6 groups

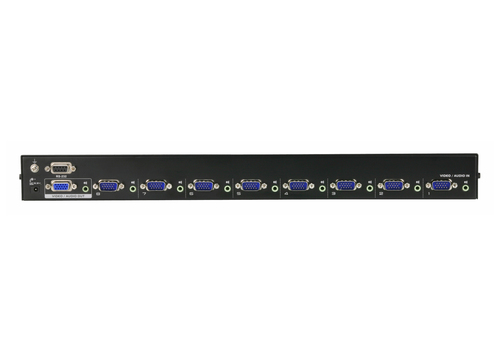

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 8 |
| VGA (D-Sub) input ports | 8 |
| VGA (D-Sub) output ports | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Bandwidth | 300 MHz |
| Input impedance | 75 Ω |
| Maximum operating distance | 30 m |
| Maximum resolution | 2048 x 1536 pixels |
| Output impedance | 75 Ω |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5.3 V |
| Power consumption (typical) | 1.01 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 159.8 mm |
| Depth | 437 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Power cord included | Yes |
| AC adapter included | Yes |
| Remote control included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
