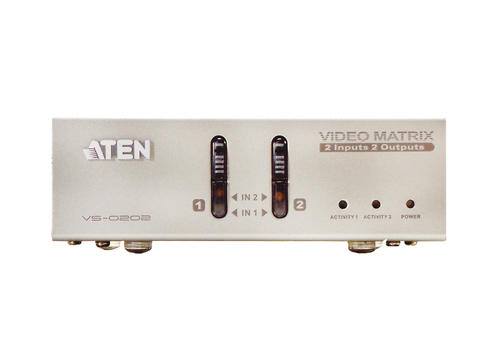

ATEN VS0202 video switch VGA
Model VS0202EAN 5055309618574
24 specifications
- Weight470 g
- ColourSilver
- Video port typeVGA
- MaterialMetal
- Power consumption (typical)2.39 W
- Width130 mm
Overview
- Weight
- 470 g
- Colour
- Silver
- Video port type
- VGA
- Material
- Metal
- Power consumption (typical)
- 2.39 W
- Width
- 130 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS0202
- Part number
- VS0202
- EAN / UPC
- 5055309618574, 151903624760, 672792132001, 700315913155 +3 more
- Also known as
- ATEN VS0202 video switch VGA
Specifications
24 specifications in 7 groups

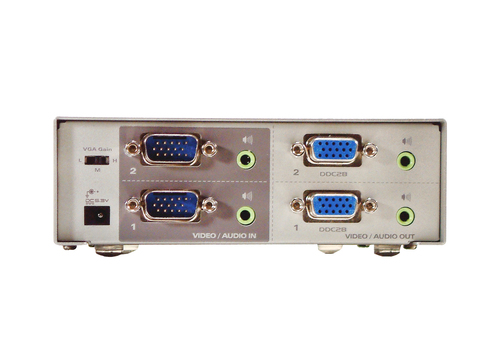

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | VGA |
| Video in | 2 x HDB-15 Male (Blue) |
| Video out | 2 x HDB-15 Female (Blue) |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Silver |
| Bandwidth | 200 MHz |
| Input impedance | 75 Ω |
| Maximum operating distance | 30 m |
| Maximum resolution | 1920 x 1200 pixels |
| Output impedance | 75 Ω |
| Rack capacity | 1U |
| Rack mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.39 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 76.1 mm |
| Height | 44 mm |
| Weight | 470 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | VGA |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
