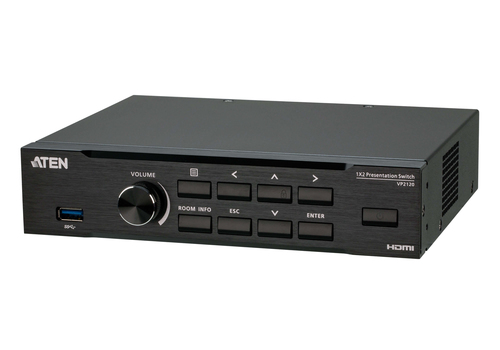

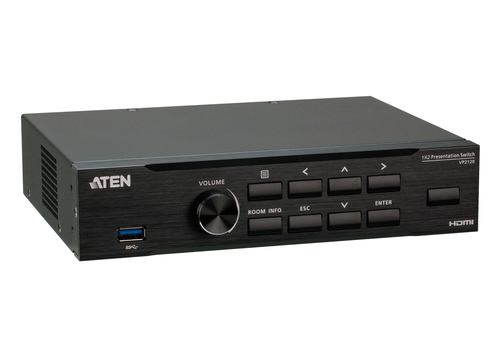

VP2120-AT-U video switch HDMI
Model VP2120-AT-U
32 specifications
- Weight1.44 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- Power consumption (typical)14.48 W
- Width169 mm
Overview
- Weight
- 1.44 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- Power consumption (typical)
- 14.48 W
- Width
- 169 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VP2120-AT-U
- Part number
- VP2120-AT-U
- Also known as
- ATEN VP2120-AT-U video switch HDMI
Specifications
32 specifications in 8 groups

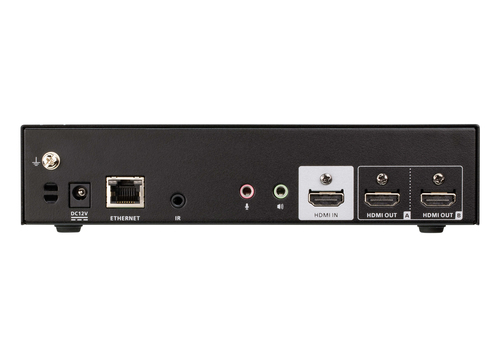

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| USB port type | USB Type-A |
| RJ-45 input ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Power |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.48 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 169 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 1.44 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 414 mm |
| Package height | 117 mm |
| Package weight | 2.03 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Remote control included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
