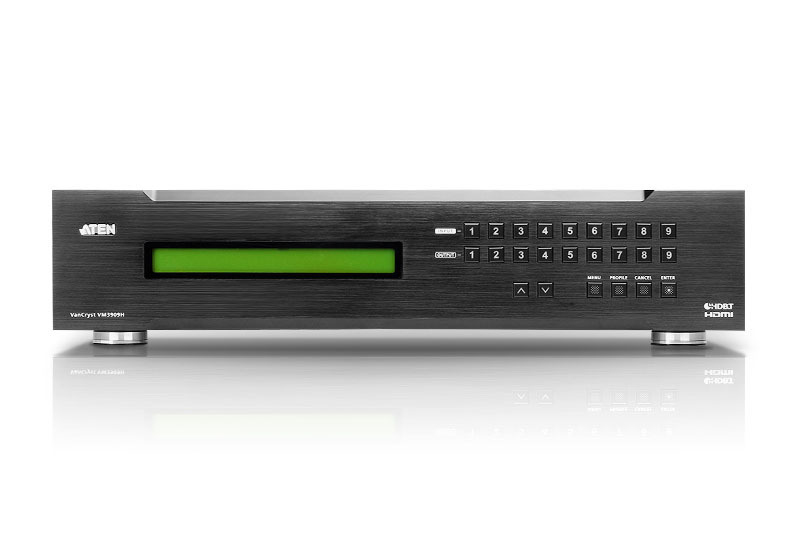

VM3909H-AT-U video switch HDMI
Model VM3909H-AT-U
33 specifications
- Weight7.33 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC adapter input voltage100 - 240 V
- Width432.4 mm
Overview
- Weight
- 7.33 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC adapter input voltage
- 100 - 240 V
- Width
- 432.4 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VM3909H-AT-U
- Part number
- VM3909H-AT-U
- Also known as
- ATEN VM3909H-AT-U video switch HDMI
Specifications
33 specifications in 7 groups

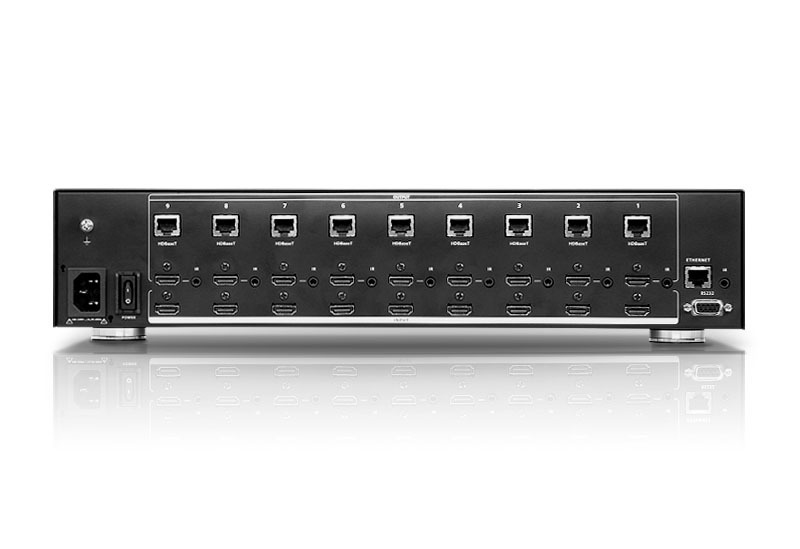

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 9 |
| HDMI in | 9 |
| RJ-45 output ports | 9 |
| RS-232 ports | 1 |
| DC-in jack | No |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Input impedance | 100 Ω |
| Maximum operating distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Rack mounting | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 2160p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1 A |
| Power consumption (typical) | 77.44 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432.4 mm |
| Depth | 382.3 mm |
| Height | 88 mm |
| Weight | 7.33 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
