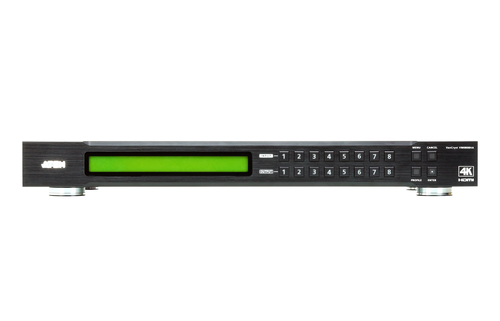

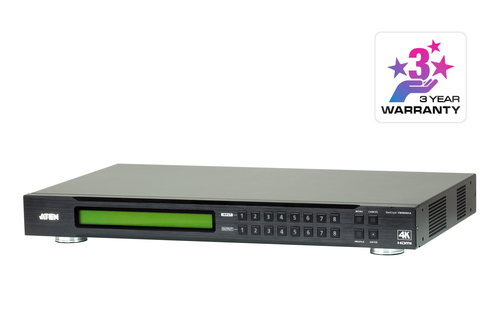

VM0808HA HDMI
Model VM0808HAPart no. VM0808HA-AT-GEAN 672792403637
44 specifications
- Weight3.86 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC adapter input voltage100 - 240 V
- Width262.3 mm
Overview
- Weight
- 3.86 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC adapter input voltage
- 100 - 240 V
- Width
- 262.3 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VM0808HA
- Part numbers
- VM0808HA-AT-G, 14016831, VM0808HA
- EAN / UPC
- 672792403637, 4719264643866
- Also known as
- ATEN VM0808HA HDMI
Specifications
44 specifications in 9 groups

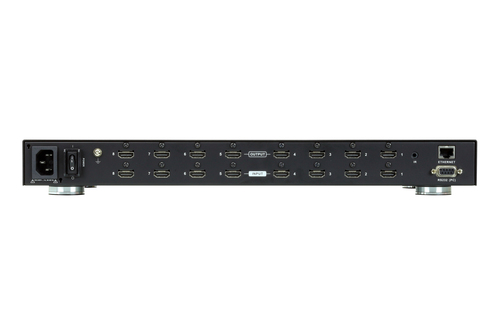

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 16 |
| HDMI in | 8 |
| Number of HDMI outputs | 8 |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Input impedance | 100 Ω |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Output impedance | 100 Ω |
| Rack mounting | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1 A |
| Power consumption (typical) | 24.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 262.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 3.86 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 338 mm |
| Package depth | 515 mm |
| Package height | 155 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Packaging content | 1x VM0808HA 8x8 4K HDMI Matrix Switch 1x Power Cord 1x IR Remote Control 1x IR Receiver 1x Mounting Kit 1x User Instructions |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 338 mm |
| Master (outer) case length | 515 mm |
| Master (outer) case height | 155 mm |
| Master (outer) case gross weight | 5.64 kg |
| Master (outer) case net weight | 4.31 kg |
