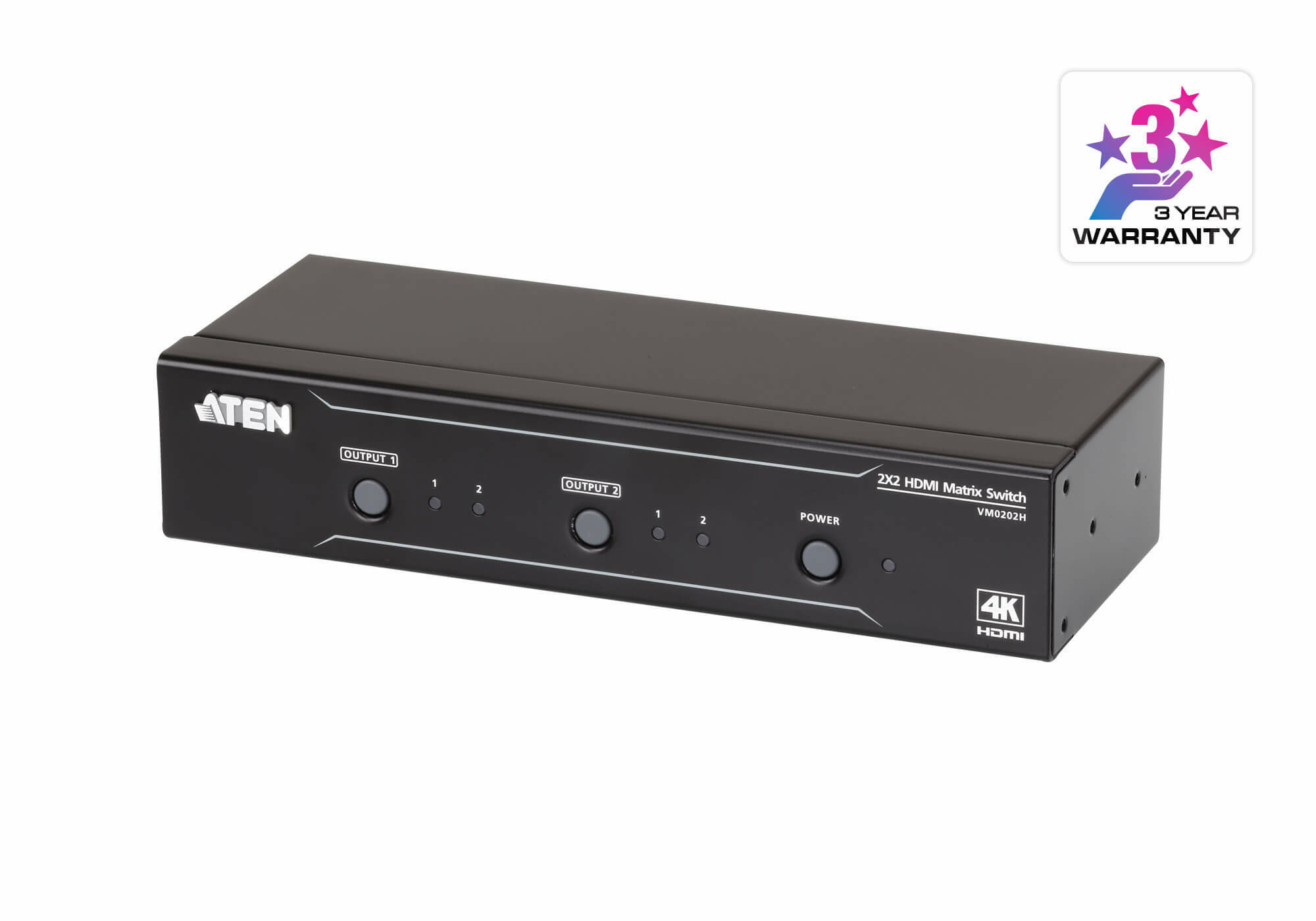

VM0202H HDMI
Model VM0202HPart no. ATEN VM0202H
35 specifications
- Weight580 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- Width200 mm
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 580 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- Width
- 200 mm
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- ATEN
- Category
- Video Switch
- Model
- VM0202H
- Part number
- ATEN VM0202H
- Also known as
- ATEN VM0202H HDMI
Specifications
35 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| RS-232 ports | 1 |
| Video in | 2 x HDMI Type A Female (Black) |
| Video out | 2 x HDMI Type A Female (Black) |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Input impedance | 100 Ω |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Output impedance | 100 Ω |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 2160i, 2160p |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 76 mm |
| Height | 42 mm |
| Weight | 580 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Remote control included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
