4K HDMI Switch
5 in, 1 out
Model AC7841EAN 8716065561036
23 specifications
- ColourBlack
- Video port typeHDMI
- AC adapter output voltage12 V
- Width87 mm
Overview
- Colour
- Black
- Video port type
- HDMI
- AC adapter output voltage
- 12 V
- Width
- 87 mm
- Brand
- ACT
- Category
- Video Switch
- Model
- AC7841
- Part number
- AC7841
- EAN / UPC
- 8716065561036
- Also known as
- ACT 4K HDMI Switch 5 in, 1 out
Specifications
23 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| Bandwidth | 18 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported video modes | 2160p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 0.9 A |

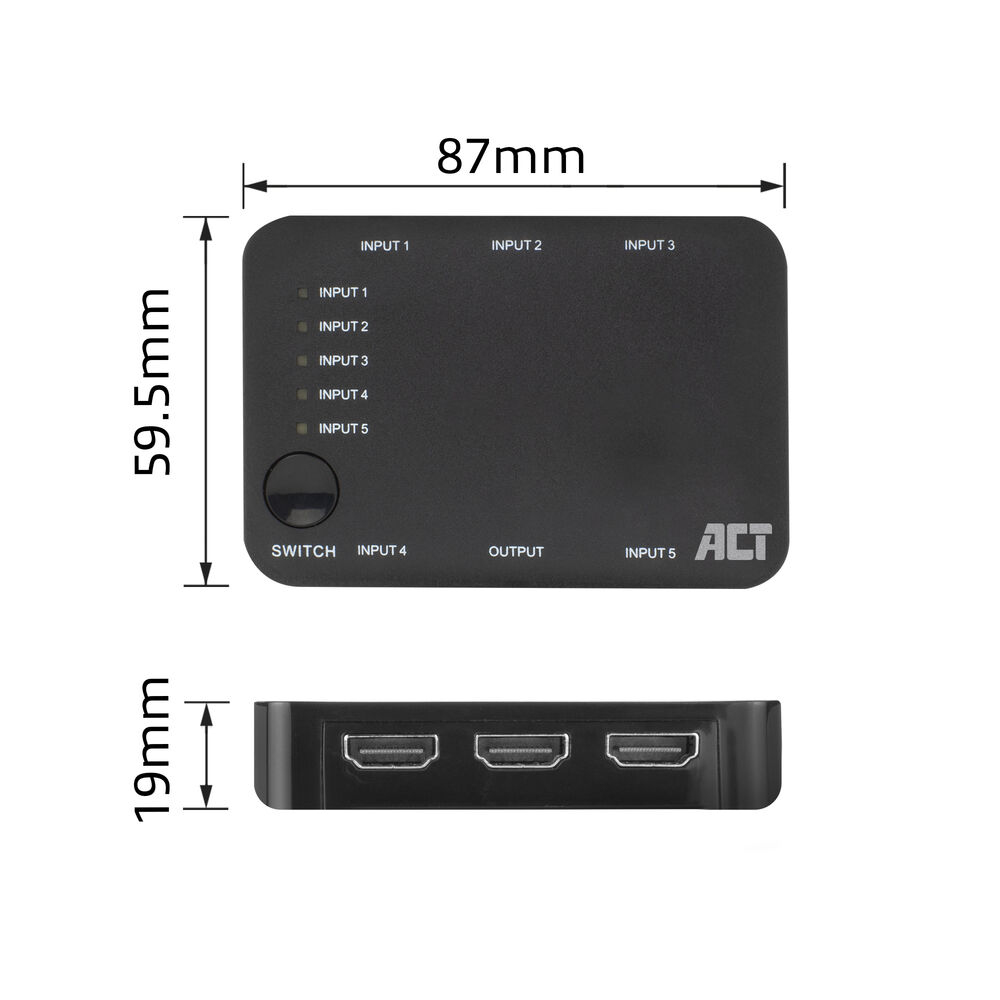

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 87 mm |
| Depth | 59.5 mm |
| Height | 19 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

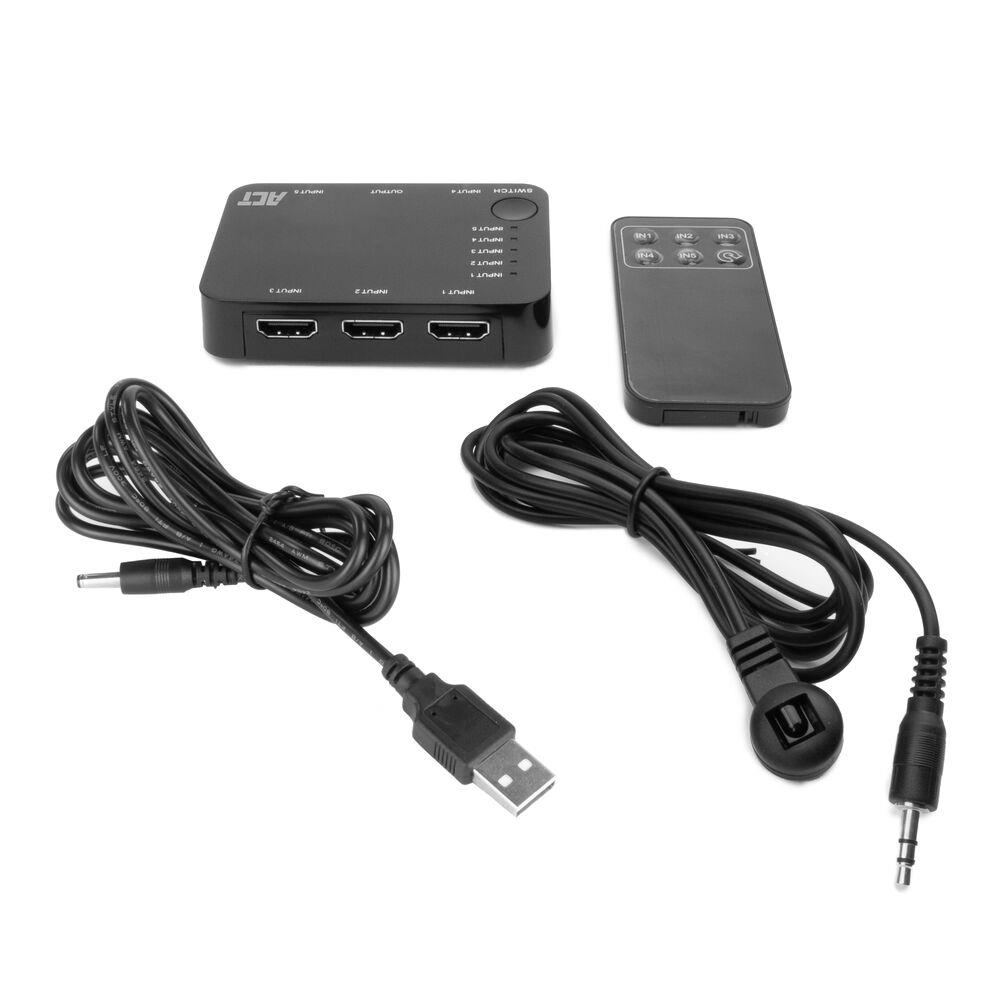

| Cables included | IR, USB |
| Remote control included | Yes |
