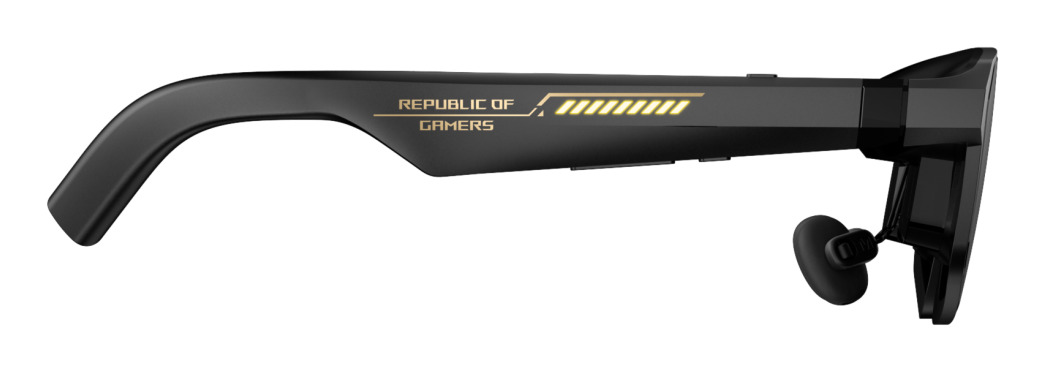

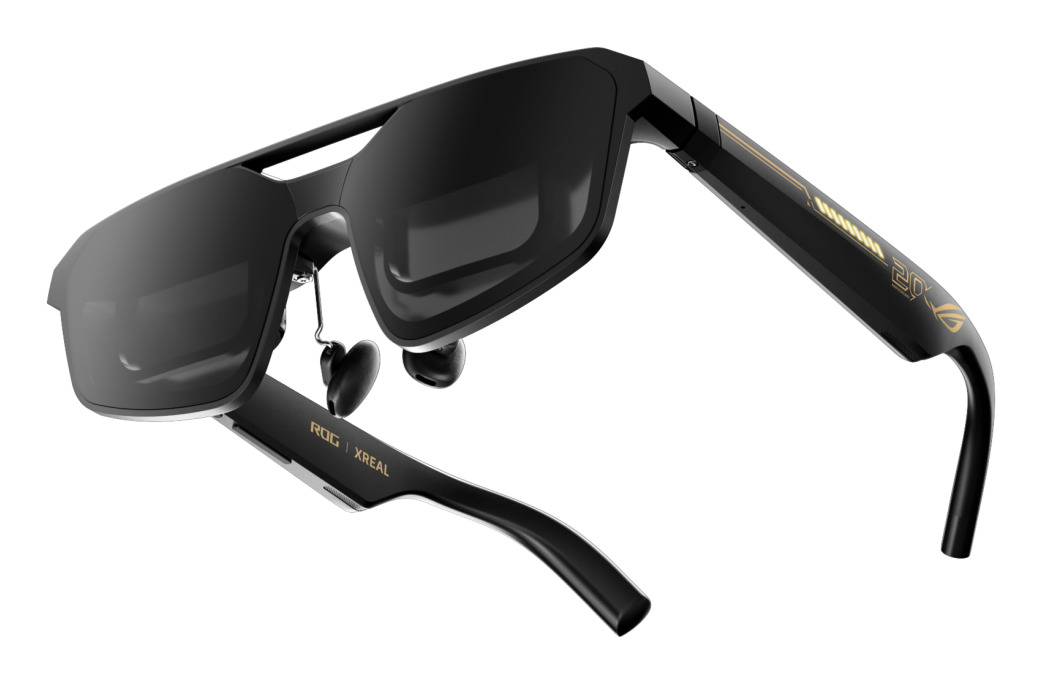

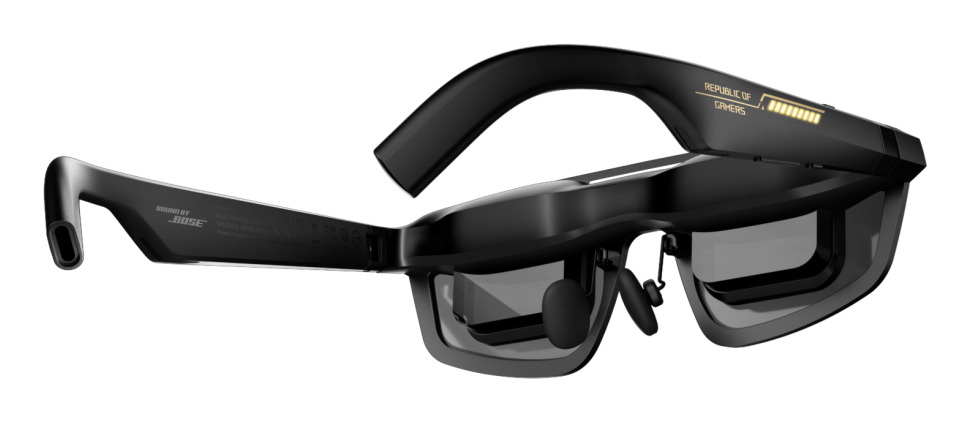

ROG XREAL R1 Edition 20
Model ROG XREAL R1 Edition 20Part no. 90LJ00M5-B03470EAN 4711636635998
27 specifications
- Display1.4 cm (0.55")
- Resolution1920 x 1080 pixels
- Weight90 g
- Built-in cameraNo
- Housing colourBlack
- USB Type-C charging portYes
Overview
- Display
- 1.4 cm (0.55")
- Resolution
- 1920 x 1080 pixels
- Weight
- 90 g
- Built-in camera
- No
- Housing colour
- Black
- USB Type-C charging port
- Yes
- Brand
- ASUS
- Category
- Smartglass
- Model
- ROG XREAL R1 Edition 20
- Part numbers
- 90LJ00M5-B03470, 90LJ00M5-B04470
- EAN / UPC
- 4711636635998, 4711636636049
- Also known as
- ASUS ROG XREAL R1 Edition 20 smartglasses
Specifications
27 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Display diagonal | 1.4 cm (0.55") |
| Display resolution | 1920 x 1080 pixels |
| Display | Micro OLED |
| Display brightness | 700 cd/m² |
| Field of view (FOV) angle | 57° |
| Maximum refresh rate | 240 Hz |
| Virtual display diagonal | 4.34 m (171") |
| Control type | Buttons |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
Power
| Specification | Value |
|---|---|
| USB Type-C charging port | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 166 mm |
| Height | 50 mm |
| Package depth | 87 mm |
| Package height | 83 mm |
| Package weight | 522 g |
| Package width | 184 mm |
| Weight | 90 g |
| Width | 153 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C, USB Type-A to USB Type-C |
| Carrying case | Yes |
| Cleaning cloth | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
