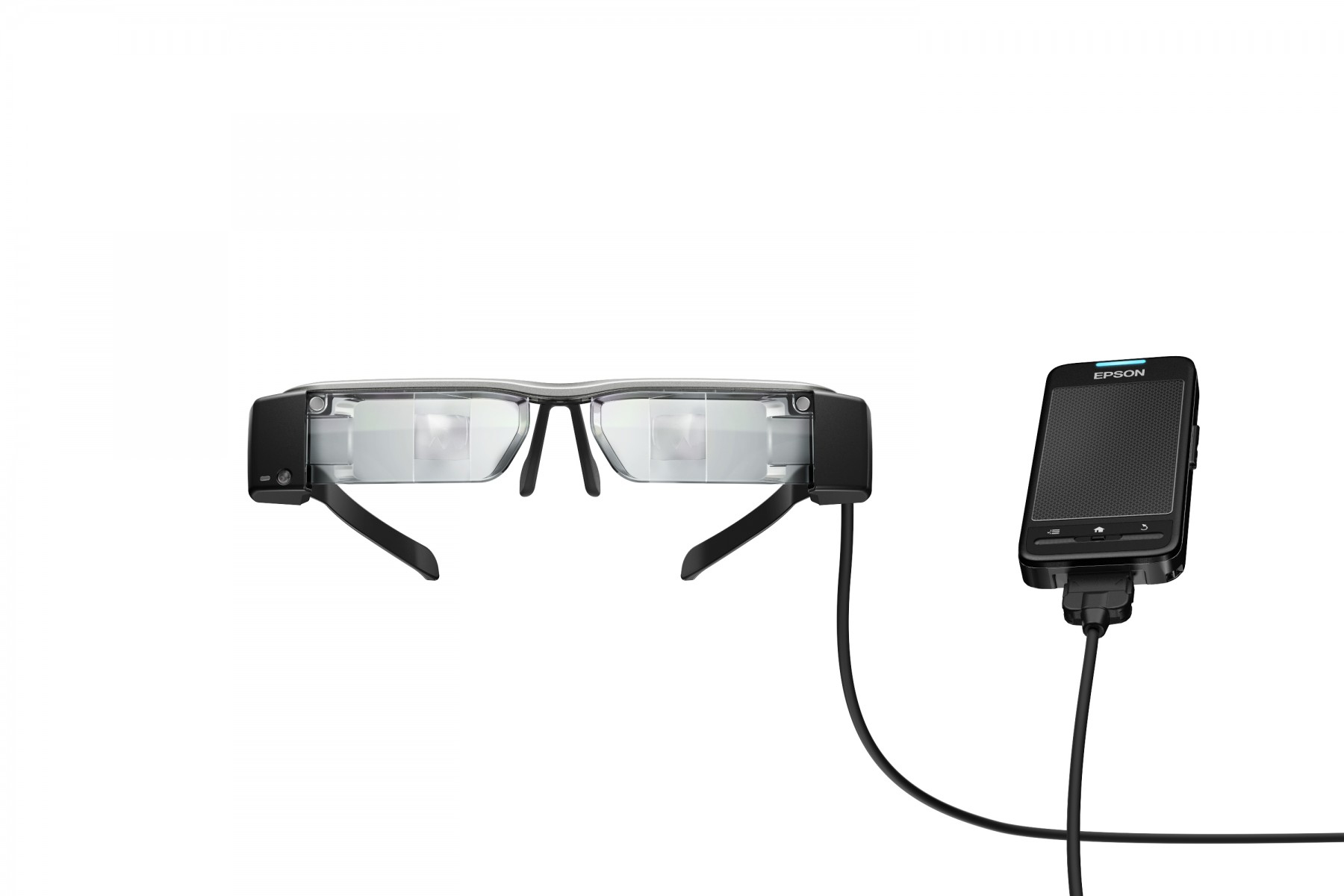

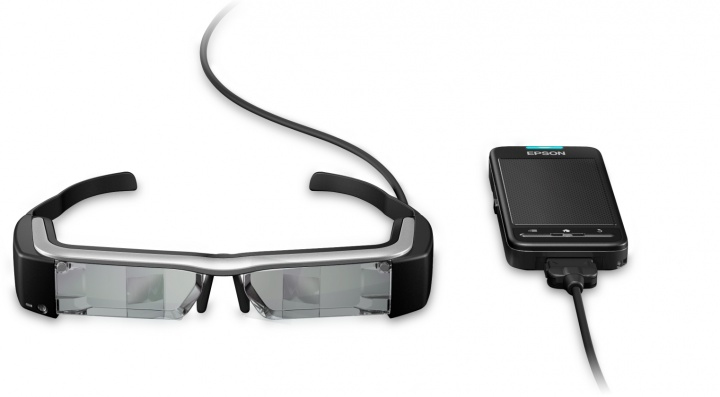

Moverio BT-200
Model Moverio BT-200Part no. V11H560041EAN 8715946528861
64 specifications
- Display1.07 cm (0.42")
- Resolution960 x 540 pixels
- ProcessorTI OMAP
- Memory1 GB
- Battery2720 mAh
- Weight88 g
Overview
- Display
- 1.07 cm (0.42")
- Resolution
- 960 x 540 pixels
- Processor
- TI OMAP
- Memory
- 1 GB
- Battery
- 2720 mAh
- Weight
- 88 g
- Brand
- Epson
- Category
- Smartglass
- Model
- Moverio BT-200
- Part number
- V11H560041
- EAN / UPC
- 8715946528861
- Also known as
- Epson Moverio BT-200
Specifications
64 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Processor frequency | 1.2 GHz |
| Processor family | TI OMAP |
| Processor model | 4460 |
| Processor cores | 2 |
| Flash memory | 8 GB |
| Internal memory | 1 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 32 GB |
| Display diagonal | 1.07 cm (0.42") |
| Display resolution | 960 x 540 pixels |
| Aspect ratio | 16:9 |
| Field of view (FOV) angle | 23° |
| Maximum refresh rate | 60 Hz |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Applications supported | SEViewer, Moverio Apps Market, Moverio Mirror (for WiFi Miracast) |
| Audio formats supported | AAC, MP3, WAV |
| Built-in microphone | Yes |
| Electronic compass | Yes |
| GPS (satellite) | Yes |
| Operating keys | 2D/3D, Back, Brightness, Function, Home, Menu, Power, Volume +, Volume - |
| Video formats supported | MP4, MPEG2, MPEG4 |
| Compatible operating systems | Android |
| Over the Air Updates (OTA) | No |
| Country of origin | Philippines |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 3.0 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11b, 802.11g |
Design
| Specification | Value |
|---|---|
| Housing colour | Black |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter frequency | 50/60 Hz |
| Battery life (max) | 6 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 170 mm |
| Height | 32 mm |
| Package depth | 286 mm |
| Package height | 82 mm |
| Package weight | 1.23 kg |
| Package width | 227 mm |
| Weight | 88 g |
| Width | 185 mm |
| Control unit dimensions (W x D x H) | 55 x 120 x 19 mm |
| Control unit weight | 124 g |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 2720 mAh |
Ports & interfaces
| Specification | Value |
|---|---|
| Micro-USB 2.0 ports quantity | 1 |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Carrying case | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 47.8 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 47.8 cm |
| Pallet length (UK) | 120 cm |
| Products per pallet | 120 pc(s) |
| Products per pallet (UK) | 120 pc(s) |
| Products per pallet layer | 30 pc(s) |
| Products per pallet layer (UK) | 30 pc(s) |
