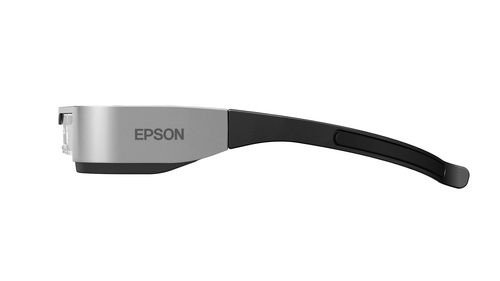

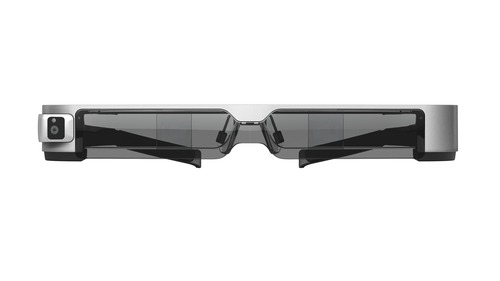

Moverio BT-300
Model Moverio BT-300Part no. V11H756040EAN 8715946617220
62 specifications
- Resolution1280 x 720 pixels
- ProcessorIntel Atom® x5
- Memory2 GB
- OSMoverio OS
- Weight69 g
- Processor frequency1.44 GHz
Overview
- Resolution
- 1280 x 720 pixels
- Processor
- Intel Atom® x5
- Memory
- 2 GB
- OS
- Moverio OS
- Weight
- 69 g
- Processor frequency
- 1.44 GHz
- Brand
- Epson
- Category
- Smartglass
- Model
- Moverio BT-300
- Part numbers
- V11H756040, V11H756041
- EAN / UPC
- 8715946617220, 8715946617237
- Also known as
- Epson Moverio BT-300 smartglasses 1.44 GHz 16 GB Bluetooth Wi-Fi Built-in camera
Specifications
62 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Processor frequency | 1.44 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® x5 |
| Processor cores | 4 |
| Flash memory | 16 GB |
| Internal memory | 2 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
| Display resolution | 1280 x 720 pixels |
| Display | OLED |
| Driving method | Monocrystalline silicon active matrix |
| Aspect ratio | 16:9 |
| Field of view (FOV) angle | 23° |
| Maximum refresh rate | 30 Hz |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Control type | Touchpad |
| Audio formats supported | AAC, MP3, WAV |
| Electronic compass | Yes |
| GPS (satellite) | Yes |
| Video formats supported | MP4, MPEG4, MPEG2, H.264 |
| Operating system installed | Moverio OS |
| Country of origin | Philippines |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Megapixel (approx.) | 5 MP |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Wi-Fi Direct | Yes |
Design
| Specification | Value |
|---|---|
| Frame colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Battery life (max) | 6 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 191 mm |
| Height | 25 mm |
| Package depth | 235 mm |
| Package height | 90 mm |
| Package weight | 1.22 kg |
| Package width | 192 mm |
| Weight | 69 g |
| Width | 178 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Micro-USB 2.0 ports quantity | 1 |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Carrying case | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 15 cm |
| Pallet gross length | 120 cm |
| Pallet gross weight | 0 g |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 15 cm |
| Pallet length (UK) | 120 cm |
| Pallet weight (UK) | 0 g |
| Pallet width (UK) | 100 cm |
| Products per pallet | 160 pc(s) |
| Products per pallet (UK) | 200 pc(s) |
| Products per pallet layer | 40 pc(s) |
| Products per pallet layer (UK) | 50 pc(s) |
