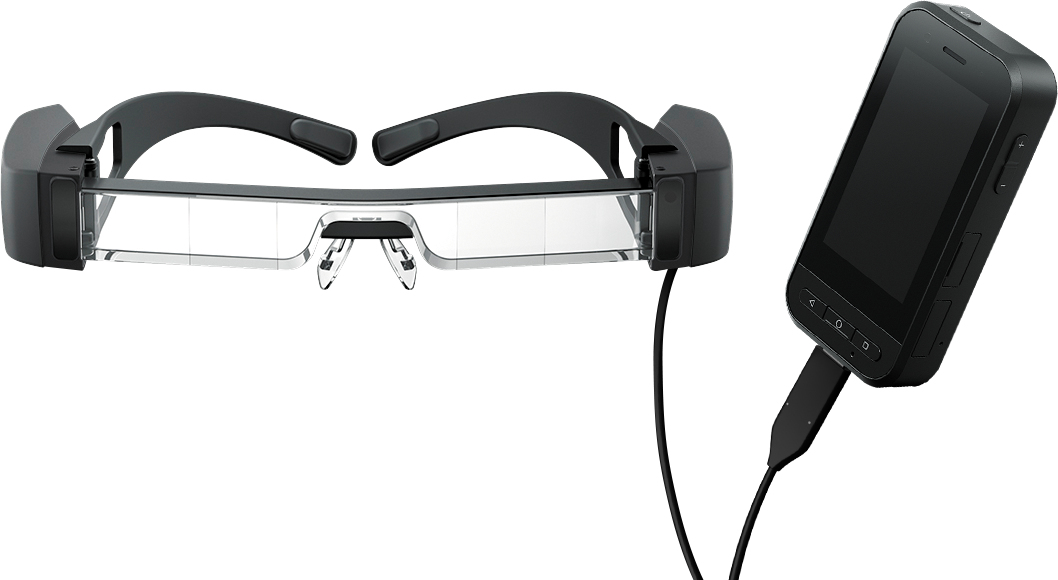

Moverio BT-40S
Model Moverio BT-40SPart no. V11H969140EAN 8715946690018
70 specifications
- Display1.14 cm (0.45")
- ProcessorSnapdragon
- Memory4 GB
- Battery3400 mAh
- OSAndroid 9
- Weight95 g
Overview
- Display
- 1.14 cm (0.45")
- Processor
- Snapdragon
- Memory
- 4 GB
- Battery
- 3400 mAh
- OS
- Android 9
- Weight
- 95 g
- Brand
- Epson
- Category
- Smartglass
- Model
- Moverio BT-40S
- Part number
- V11H969140
- EAN / UPC
- 8715946690018
- Also known as
- Epson Moverio BT-40S
Specifications
70 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Processor frequency | 2.52 GHz |
| Processor manufacturer | Qualcomm |
| Processor family | Snapdragon |
| Processor cores | 8 |
| Flash memory | 64 GB |
| Internal memory | 4 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 2 TB |
| Display diagonal | 1.14 cm (0.45") |
| Display resolution (numeric) | 409920 pixels |
| Display | LCD |
| Panel type | IPS |
| Aspect ratio | 16:9 |
| Field of view (FOV) angle | 34° |
| Maximum refresh rate | 60 Hz |
| Screen size compatibility | 0 - 3048 mm (0 - 120") |
| Control unit display diagonal | 7.49 cm (2.95") |
| Light sensor | Yes |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Applications supported | Google Play |
| Galileo | Yes |
| Quasi-Zenith Satellite System (QZSS) | Yes |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Electronic compass | Yes |
| GLONASS | Yes |
| GPS (satellite) | Yes |
| Operating keys | Back, Function, Home, Power, Volume +, Volume - |
| Proximity sensor | Yes |
| Operating system installed | Android 9 |
| Over the Air Updates (OTA) | Yes |
| Country of origin | Philippines |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Megapixel (approx.) | 13 MP |
| Auto focus | Yes |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a |
Design
| Specification | Value |
|---|---|
| International Protection (IP) code | IPX2 |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 164 mm |
| Height | 41 mm |
| Package depth | 263 mm |
| Package height | 100 mm |
| Package weight | 952 g |
| Package width | 210 mm |
| Weight | 95 g |
| Width | 194 mm |
| Control unit dimensions (W x D x H) | 55 x 110 x 23 mm |
| Control unit weight | 183 g |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 3400 mAh |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| 3.5 mm connector | Yes |
| DisplayPort version | 1.2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 180 pc(s) |
| Products per pallet (UK) | 240 pc(s) |
