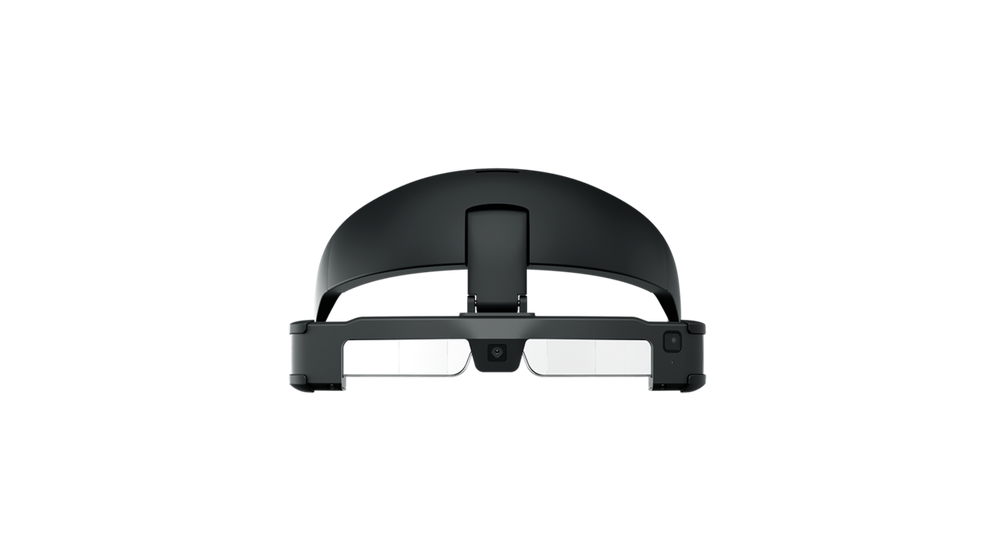

Moverio BT-45C
Model Moverio BT-45CPart no. V11H970040EAN 8715946710525
40 specifications
- Display1.14 cm (0.45")
- Resolution1920 x 1080 pixels
- Weight550 g
- Built-in cameraYes
- International Protection (IP) codeIP52
- Operating temperature (T-T)5 - 35 °C
Overview
- Display
- 1.14 cm (0.45")
- Resolution
- 1920 x 1080 pixels
- Weight
- 550 g
- Built-in camera
- Yes
- International Protection (IP) code
- IP52
- Operating temperature (T-T)
- 5 - 35 °C
- Brand
- Epson
- Category
- Smartglass
- Model
- Moverio BT-45C
- Part number
- V11H970040
- EAN / UPC
- 8715946710525
- Also known as
- Epson Moverio BT-45C
Specifications
40 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Display diagonal | 1.14 cm (0.45") |
| Display resolution | 1920 x 1080 pixels |
| Aspect ratio | 16:9 |
| Field of view (FOV) angle | 34° |
| Maximum refresh rate | 60 Hz |
| Screen size compatibility | 0 - 3048 mm (0 - 120") |
| Light sensor | Yes |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Electronic compass | Yes |
| Country of origin | China |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Megapixel (approx.) | 8 MP |
| Auto focus | Yes |
Design
| Specification | Value |
|---|---|
| International Protection (IP) code | IP52 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 290 mm |
| Height | 57 mm |
| Package depth | 490 mm |
| Package height | 190 mm |
| Package weight | 2.55 kg |
| Package width | 335 mm |
| Weight | 550 g |
| Width | 200 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| 3.5 mm connector | Yes |
| DisplayPort version | 1.2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Packaging content
| Specification | Value |
|---|---|
| Carrying case | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Impedance | 16 Ω |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 44 pc(s) |
| Products per pallet (UK) | 66 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
