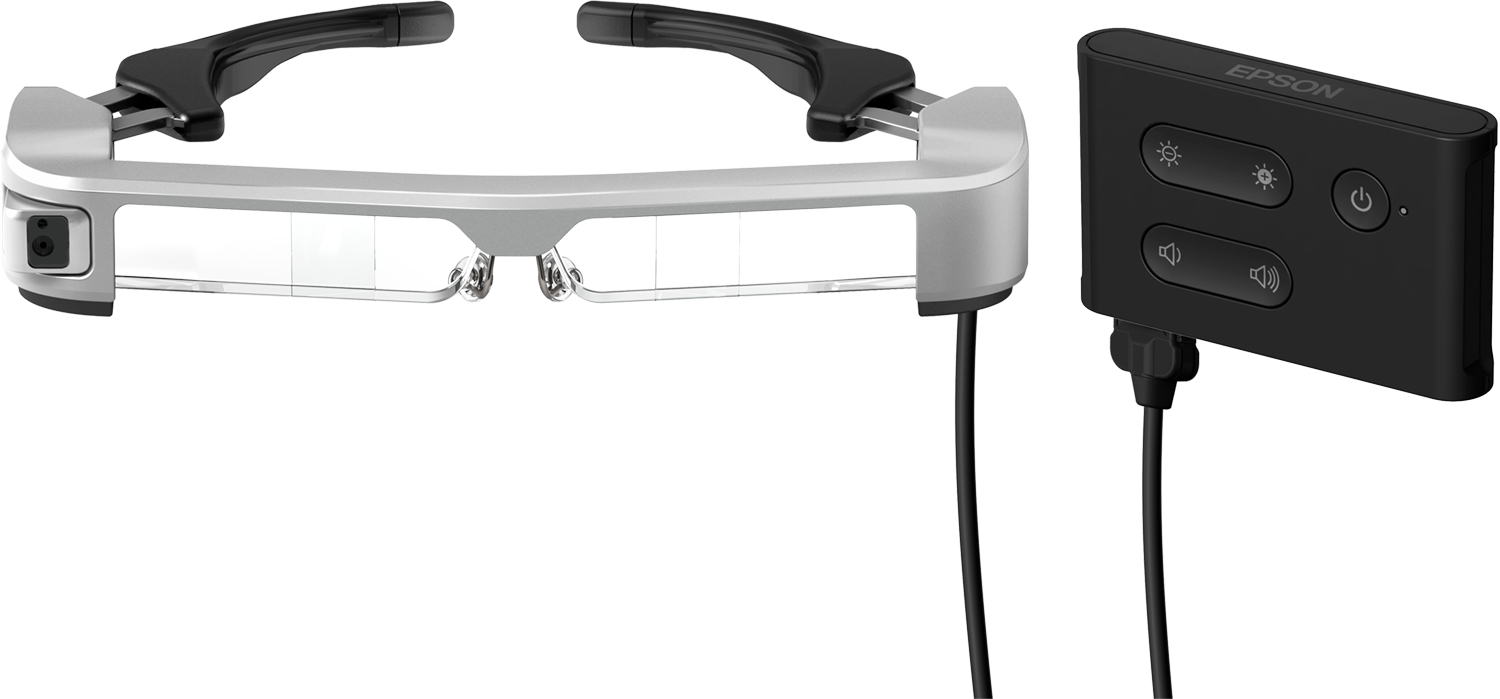

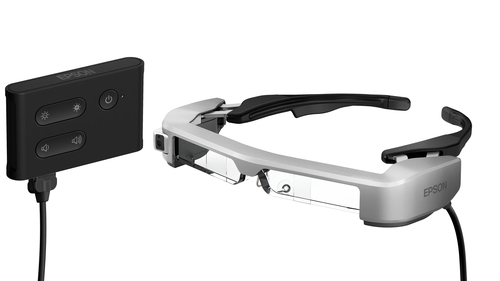

Moverio BT-35E
Model Moverio BT-35EPart no. V11H935040EAN 8715946656656
49 specifications
- Display1.09 cm (0.43")
- Resolution1280 x 720 pixels
- Weight119 g
- Megapixel (approx.)5 MP
- International Protection (IP) codeIPX2
- AC adapter input voltage100 - 240 V
Overview
- Display
- 1.09 cm (0.43")
- Resolution
- 1280 x 720 pixels
- Weight
- 119 g
- Megapixel (approx.)
- 5 MP
- International Protection (IP) code
- IPX2
- AC adapter input voltage
- 100 - 240 V
- Brand
- Epson
- Category
- Smartglass
- Model
- Moverio BT-35E
- Part number
- V11H935040
- EAN / UPC
- 8715946656656
- Also known as
- Epson Moverio BT-35E
Specifications
49 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| Display diagonal | 1.09 cm (0.43") |
| Display resolution | 1280 x 720 pixels |
| Display | OLED |
| Driving method | Monocrystalline silicon active matrix |
| Aspect ratio | 16:9 |
| Field of view (FOV) angle | 23° |
| Maximum refresh rate | 30 Hz |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Electronic compass | Yes |

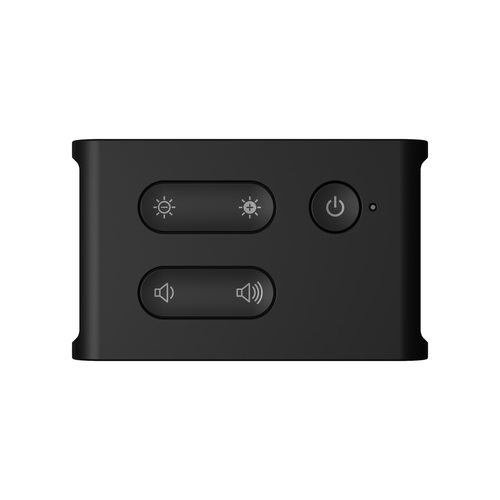

| Operating keys | 2D/3D, Brightness, Power, Volume +, Volume - |
| Country of origin | Philippines |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 5 MP |
Design
| Specification | Value |
|---|---|
| International Protection (IP) code | IPX2 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| AC adapter frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 194 mm |
| Height | 30 mm |
| Package depth | 393 mm |
| Package height | 93 mm |
| Package weight | 1.39 kg |
| Package width | 262 mm |
| Weight | 119 g |
| Width | 176 mm |

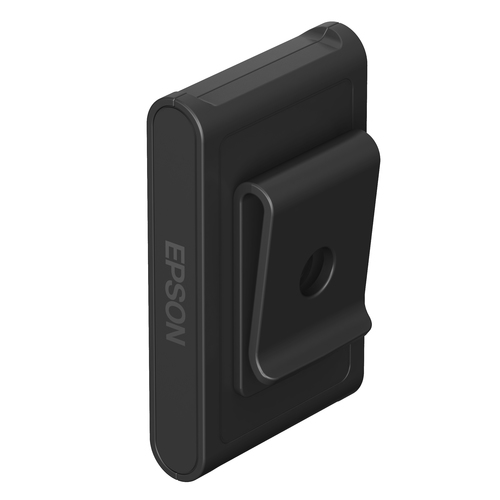

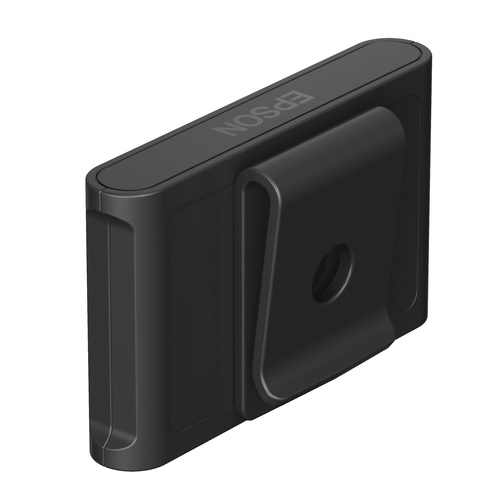

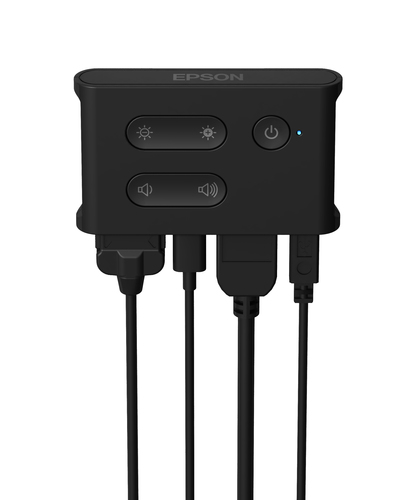

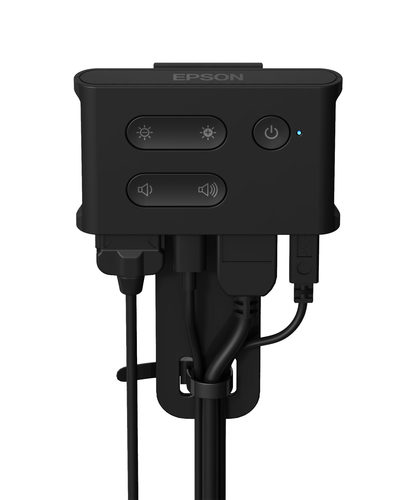

| Control unit dimensions (W x D x H) | 52 x 85 x 15 mm |
| Control unit weight | 45 g |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connector type | Micro-USB |
| Micro-USB 2.0 ports quantity | 1 |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |

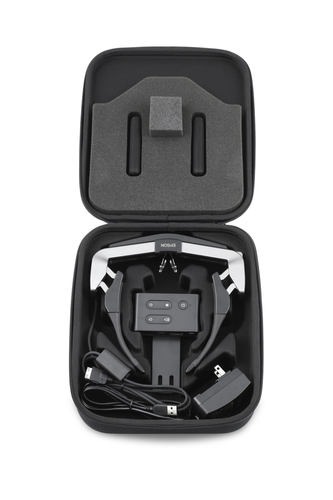

| Carrying case | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 0 g |
| Master (outer) case height | 490 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case width | 300 mm |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per master (outer) case | 5 pc(s) |
| Products per pallet | 120 pc(s) |
| Products per pallet (UK) | 160 pc(s) |
| Products per pallet layer | 30 pc(s) |
| Products per pallet layer (UK) | 40 pc(s) |
