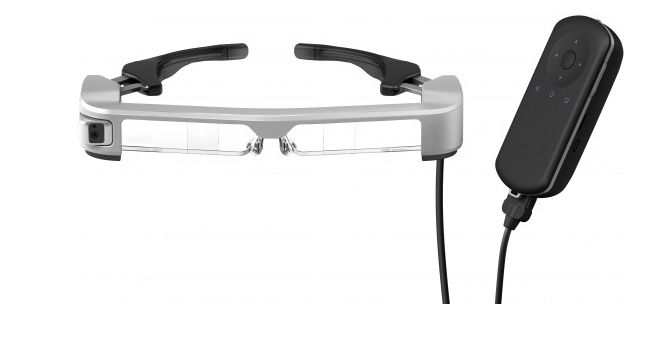

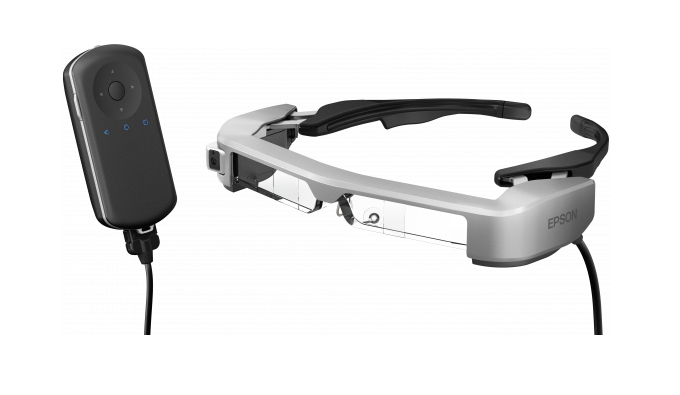

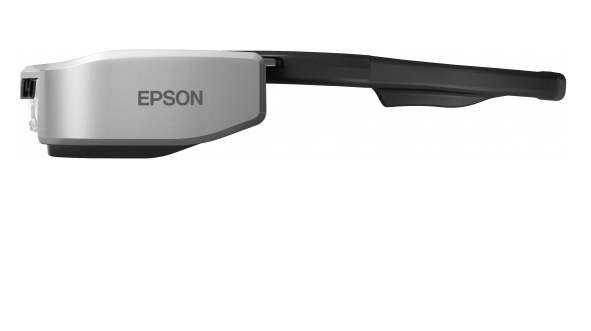

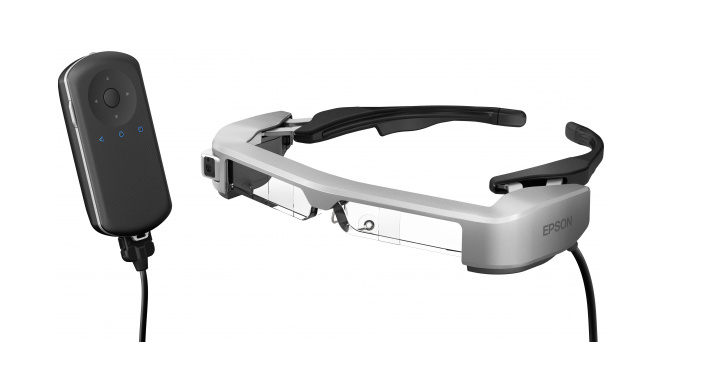

Moverio BT-350
Model V11H837041EAN 8715946617251
71 specifications
- Display1.09 cm (0.43")
- Resolution1280 x 720 pixels
- ProcessorIntel Atom®
- Memory2 GB
- Battery2950 mAh
- OSMoverio OS
Overview
- Display
- 1.09 cm (0.43")
- Resolution
- 1280 x 720 pixels
- Processor
- Intel Atom®
- Memory
- 2 GB
- Battery
- 2950 mAh
- OS
- Moverio OS
- Brand
- Epson
- Category
- Smartglass
- Model
- V11H837041
- Part number
- V11H837041
- EAN / UPC
- 8715946617251
- Also known as
- Epson Moverio BT-350
Specifications
71 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Processor frequency | 1.44 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor cores | 4 |
| Flash memory | 16 GB |
| Internal memory | 2 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 32 GB |
| Display diagonal | 1.09 cm (0.43") |
| Display resolution | 1280 x 720 pixels |
| Driving method | Monocrystalline silicon active matrix |
| Aspect ratio | 16:9 |
| Field of view (FOV) angle | 23° |
| Maximum refresh rate | 30 Hz |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Control type | Buttons, Touch |
| Audio formats supported | AAC, MP3, WAV |
| Built-in microphone | Yes |
| Electronic compass | Yes |
| GPS (satellite) | Yes |
| Operating keys | 2D/3D, Back, Brightness, Lock, Function, Home, Menu, Power, Volume +, Volume - |
| Video formats supported | MP4, MPEG2 |
| Operating system installed | Moverio OS |
| Country of origin | Philippines |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Megapixel (approx.) | 5 MP |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11g, 802.11a |
| Miracast | Yes |
| Wi-Fi Direct | Yes |
Design
| Specification | Value |
|---|---|
| International Protection (IP) code | IPX2 |
Power
| Specification | Value |
|---|---|
| Battery life (max) | 6 h |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 31 mm |
| Height | 194 mm |
| Package depth | 300 mm |
| Package height | 95 mm |
| Package weight | 880 g |
| Package width | 235 mm |
| Weight | 248 g |
| Width | 181 mm |
| Control unit dimensions (W x D x H) | 56 x 116 x 23 mm |
| Control unit weight | 129 g |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 2950 mAh |
Ports & interfaces
| Specification | Value |
|---|---|
| Micro-USB 2.0 ports quantity | 1 |
| 3.5 mm connector | Yes |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 510 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case width | 265 mm |
| Pallet gross height | 15 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 15 cm |
| Pallet length (UK) | 120 cm |
| Products per master (outer) case | 5 pc(s) |
| Products per pallet | 200 pc(s) |
| Products per pallet (UK) | 240 pc(s) |
| Products per pallet layer | 50 pc(s) |
| Products per pallet layer (UK) | 60 pc(s) |
