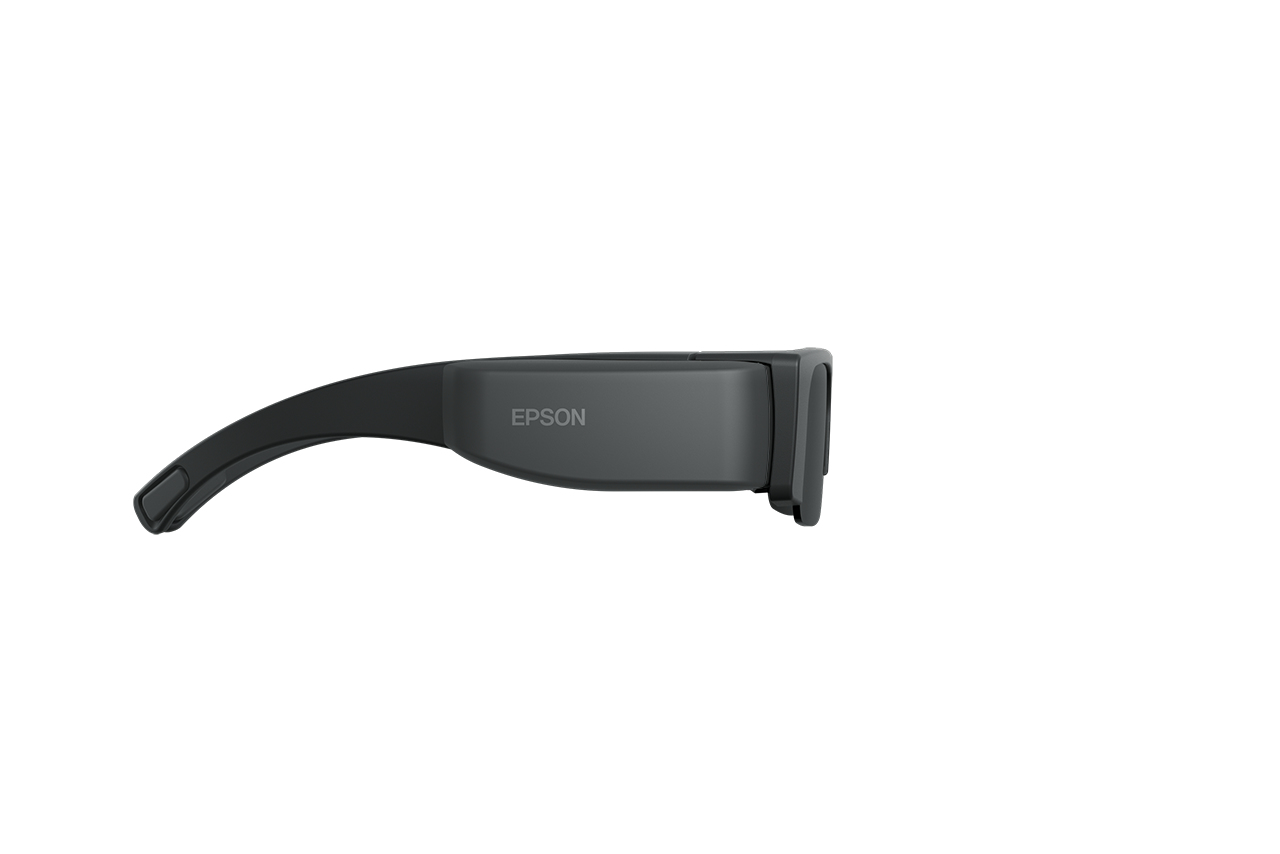

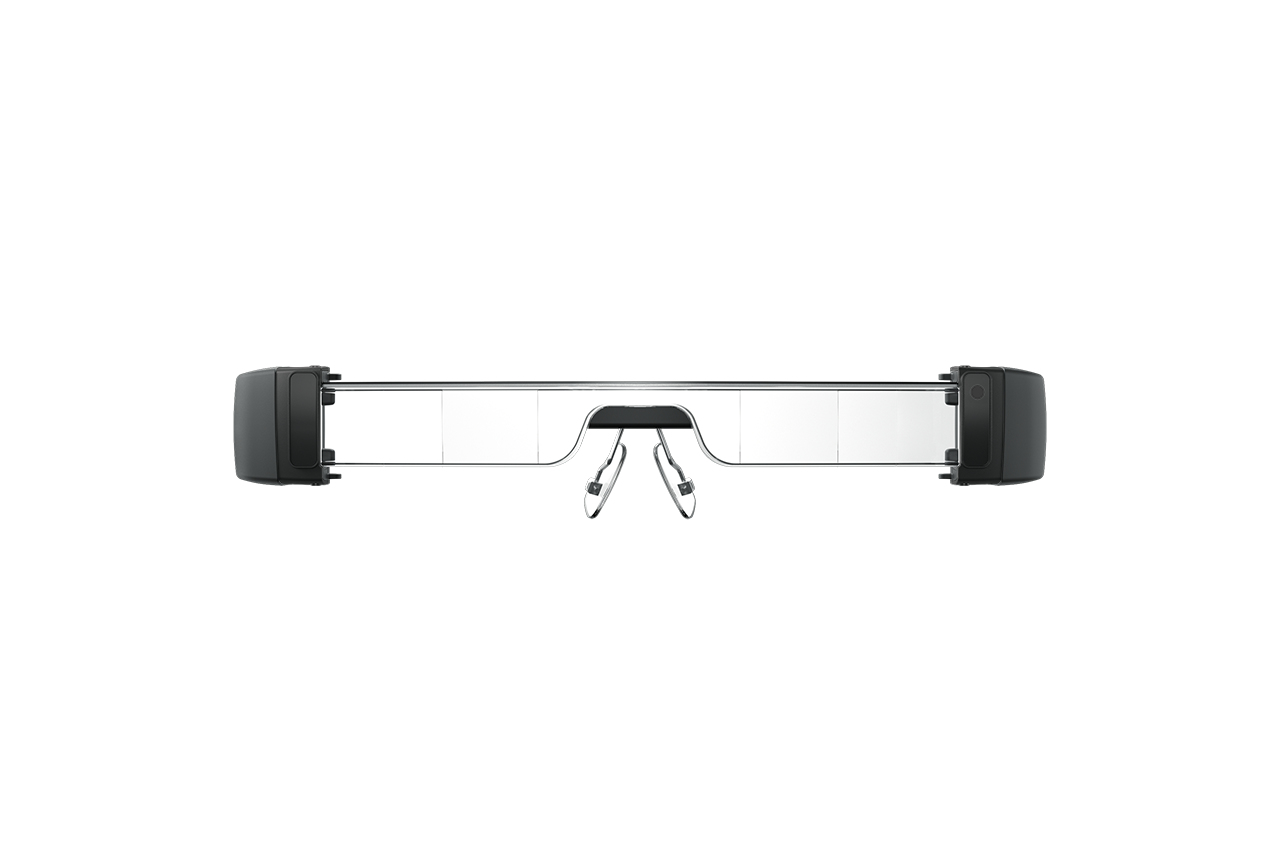

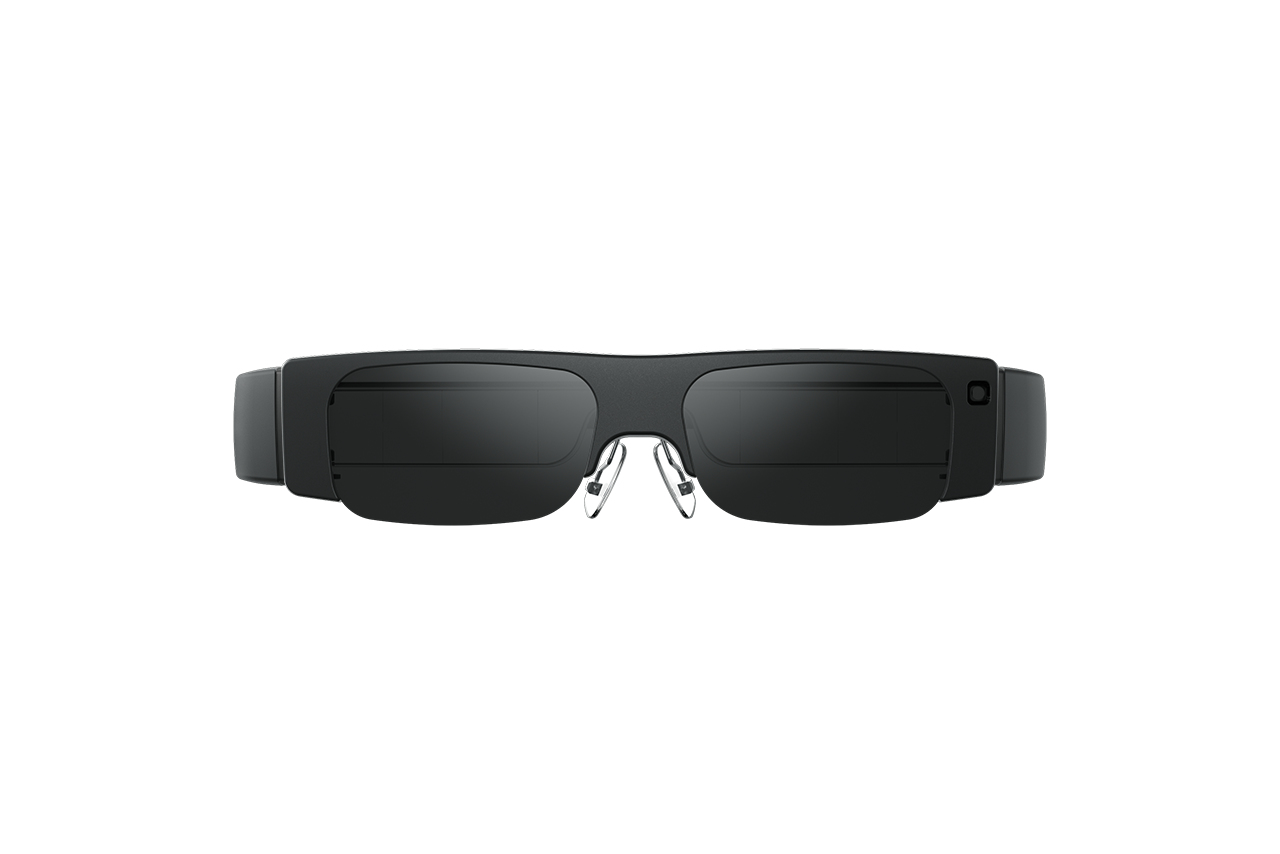

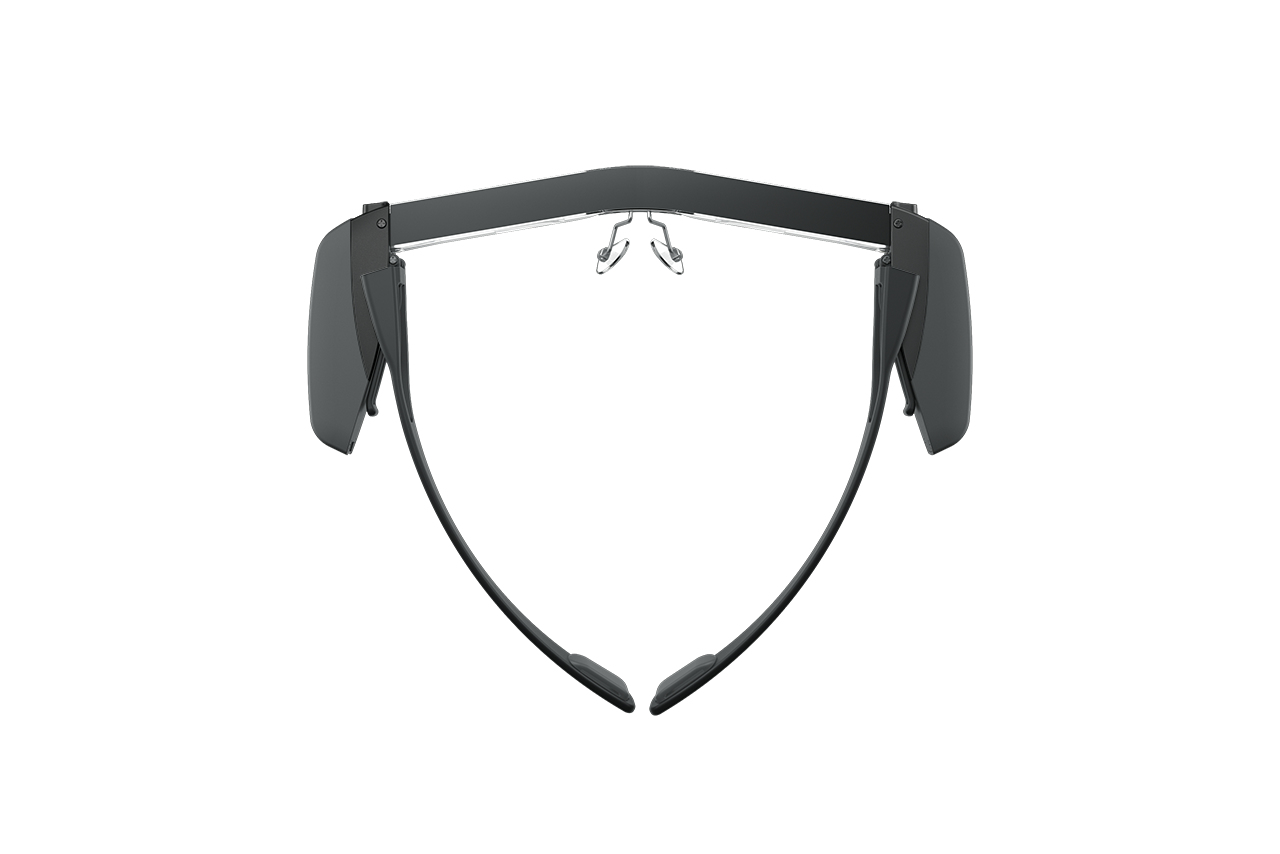

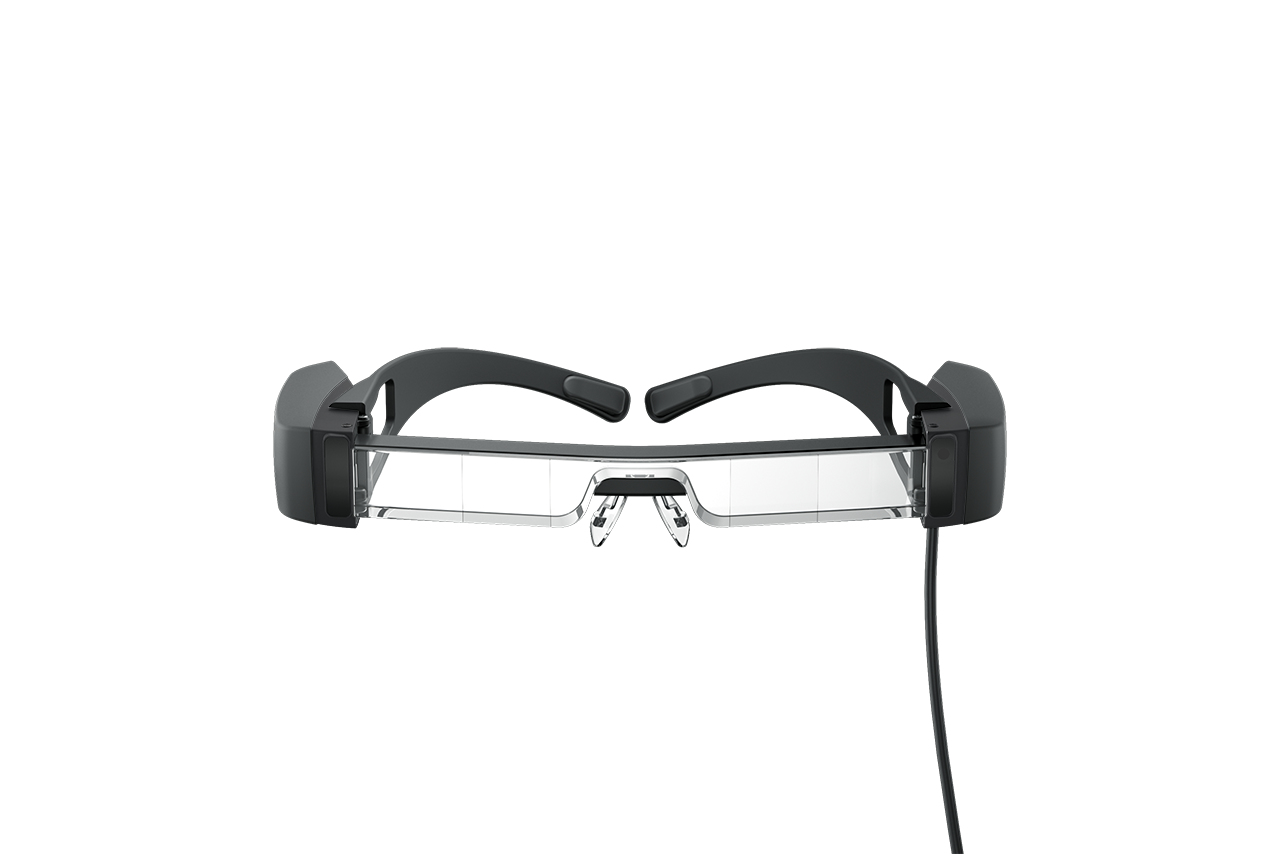

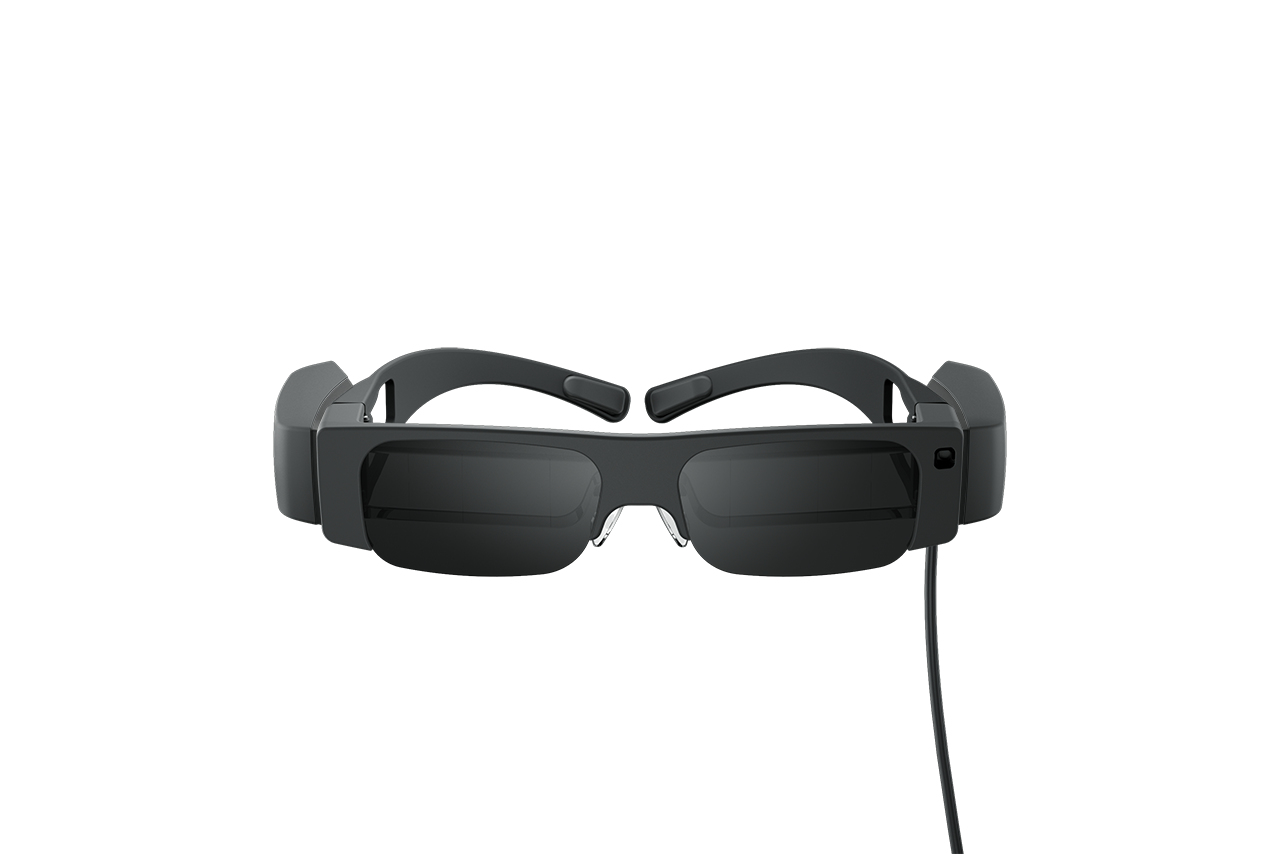

Moverio BT-40
Model Moverio BT-40Part no. V11H969040EAN 8715946690001
40 specifications
- Display1.14 cm (0.45")
- Resolution1920 x 1080 pixels
- Weight170 g
- International Protection (IP) codeIPX2
- Charging temperature (T-T)10 - 90 °C
- Depth164 mm
Overview
- Display
- 1.14 cm (0.45")
- Resolution
- 1920 x 1080 pixels
- Weight
- 170 g
- International Protection (IP) code
- IPX2
- Charging temperature (T-T)
- 10 - 90 °C
- Depth
- 164 mm
- Brand
- Epson
- Category
- Smartglass
- Model
- Moverio BT-40
- Part number
- V11H969040
- EAN / UPC
- 8715946690001
- Also known as
- Epson Moverio BT-40
Specifications
40 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Display diagonal | 1.14 cm (0.45") |
| Display resolution | 1920 x 1080 pixels |
| Display resolution (numeric) | 2073600 pixels |
| Display | Si-OLED |
| Widescreen | Yes |
| Aspect ratio | 16:9 |
| Field of view (FOV) angle | 34° |
| Maximum refresh rate | 60 Hz |
| Screen size compatibility | 0 - 3048 mm (0 - 120") |
| Virtual display diagonal | 1.14 cm (0.45") |
| Light sensor | Yes |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Electronic compass | Yes |
| Country of origin | Philippines |
Design
| Specification | Value |
|---|---|
| International Protection (IP) code | IPX2 |
Operational conditions
| Specification | Value |
|---|---|
| Charging temperature (T-T) | 10 - 90 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 164 mm |
| Height | 41 mm |
| Package depth | 265 mm |
| Package height | 100 mm |
| Package weight | 679 g |
| Package width | 210 mm |
| Weight | 170 g |
| Width | 194 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| 3.5 mm connector | Yes |
| DisplayPort version | 1.2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 180 pc(s) |
| Products per pallet (UK) | 240 pc(s) |
