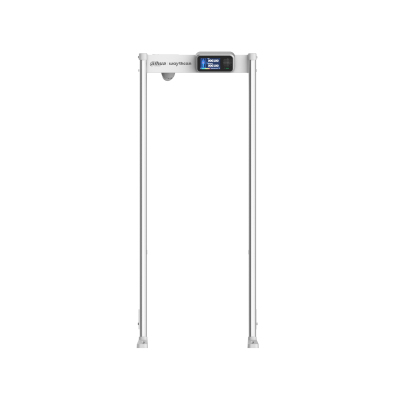

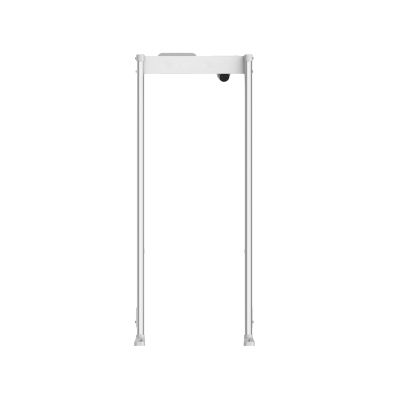

ISC-D733-TS2
Model ISC-D733-TS2Part no. DHI-ISC-D733-TS2
23 specifications
- TypeWalk through
- Weight42 kg
- Number of detection zones1
- Built-in displayYes
- Power sourceDC
- Passage dimensions (W x D x H)760 x 500 x 2060 mm
Overview
- Type
- Walk through
- Weight
- 42 kg
- Number of detection zones
- 1
- Built-in display
- Yes
- Power source
- DC
- Passage dimensions (W x D x H)
- 760 x 500 x 2060 mm
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- ISC-D733-TS2
- Part number
- DHI-ISC-D733-TS2
- Also known as
- Dahua Technology ISC-D733-TS2
Specifications
23 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product type | Walk through |
Features
| Specification | Value |
|---|---|
| Number of detection zones | 1 |
| Audible alarm(s) | Yes |
| Light alarm | Yes |
| Number of sensitivity levels | 100 |
| Password protection | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Passage dimensions (W x D x H) | 760 x 500 x 2060 mm |
| Width | 916 mm |
| Depth | 537 mm |
| Height | 2221 mm |
| Weight | 42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 775 mm |
| Package depth | 235 mm |
| Package height | 2275 mm |
| Package weight | 52 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
