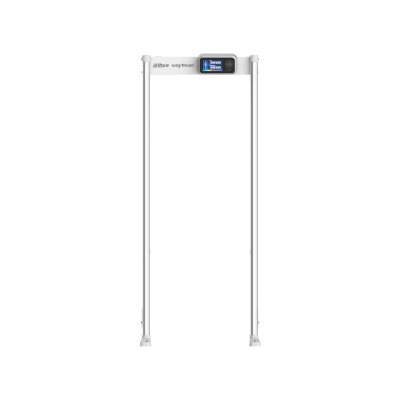

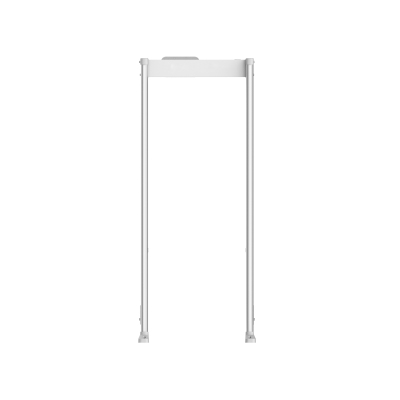

DHI-ISC-D733-S2 security metal detector
Model DHI-ISC-D733-S2
23 specifications
- TypeWalk through
- Weight40 kg
- Number of detection zones33
- Built-in displayYes
- Ethernet LAN (RJ-45) ports1
- AC input voltage100 - 240 V
Overview
- Type
- Walk through
- Weight
- 40 kg
- Number of detection zones
- 33
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 100 - 240 V
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- DHI-ISC-D733-S2
- Part number
- DHI-ISC-D733-S2
- Also known as
- Dahua Technology DHI-ISC-D733-S2 security metal detector
Specifications
23 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product type | Walk through |
Features
| Specification | Value |
|---|---|
| Number of detection zones | 33 |
| Audible alarm(s) | Yes |
| Number of sensitivity levels | 255 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 916 mm |
| Depth | 537 mm |
| Height | 2221 mm |
| Weight | 40 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 760 mm |
| Package depth | 500 mm |
| Package height | 2060 mm |
| Package weight | 50 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
