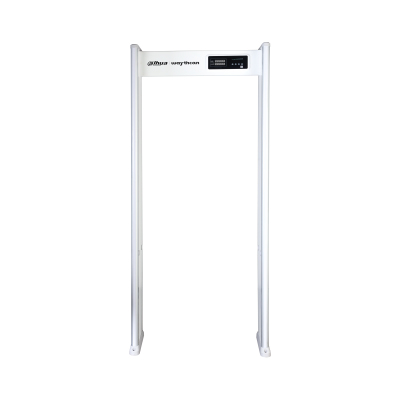

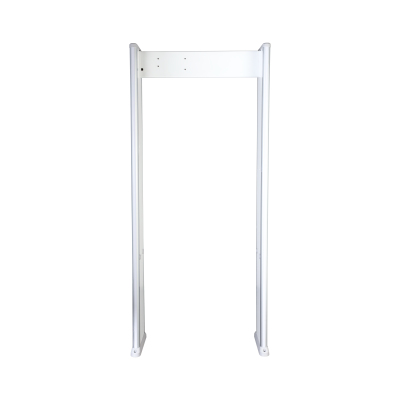

ISC-D109L security metal detector 99
Model ISC-D109L
25 specifications
- Weight23 kg
- Number of detection zones9
- Built-in displayYes
- Power sourceDC
- Width824 mm
- Operating temperature (T-T)-20 - 65 °C
Overview
- Weight
- 23 kg
- Number of detection zones
- 9
- Built-in display
- Yes
- Power source
- DC
- Width
- 824 mm
- Operating temperature (T-T)
- -20 - 65 °C
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- ISC-D109L
- Part number
- ISC-D109L
- Also known as
- Dahua Technology ISC-D109L security metal detector 99
Specifications
25 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Number of detection zones | 9 |
| Number of programs | 99 |
| Audible alarm(s) | Yes |
| Light alarm | Yes |
| Number of sensitivity levels | 400 |
| Password protection | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LED |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 12 V |
| Power consumption (typical) | 5.76 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 824 mm |
| Depth | 340 mm |
| Height | 2208 mm |
| Weight | 23 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 425 mm |
| Package depth | 220 mm |
| Package height | 2265 mm |
| Package weight | 28.5 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
