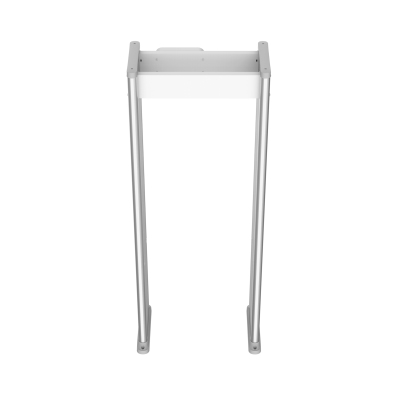

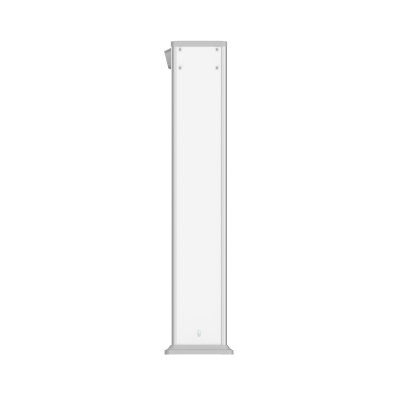

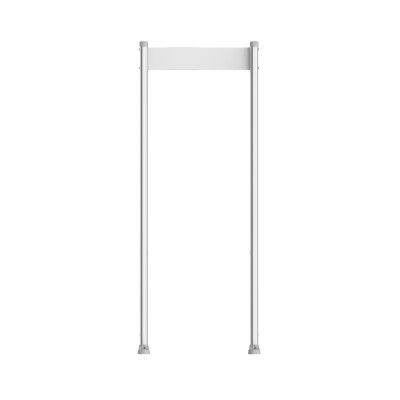

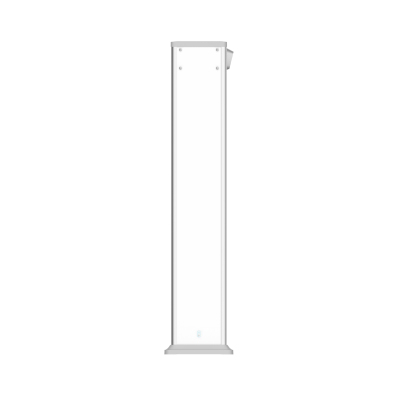

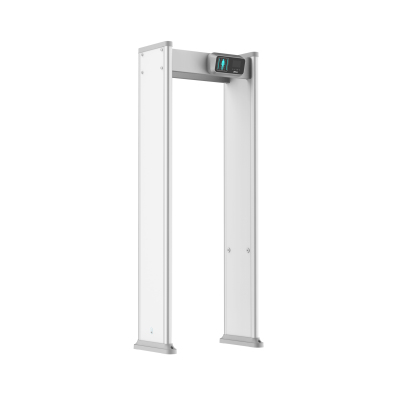

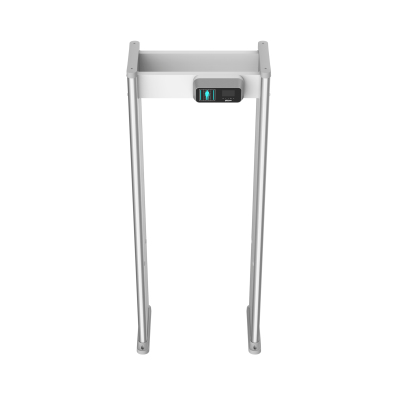

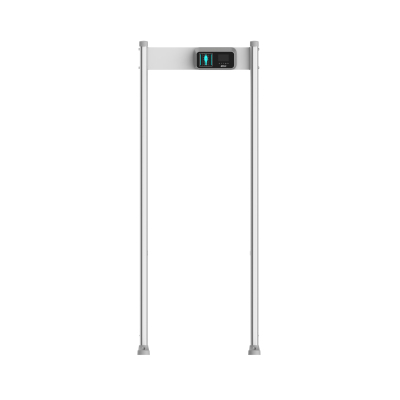

DHI-ISC-D118C security metal detector
Model DHI-ISC-D118C
36 specifications
- TypeWalk through
- Weight37.5 kg
- Number of detection zones18
- Built-in displayYes
- Ethernet LAN (RJ-45) ports1
- Power sourceAC
Overview
- Type
- Walk through
- Weight
- 37.5 kg
- Number of detection zones
- 18
- Built-in display
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Power source
- AC
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- DHI-ISC-D118C
- Part number
- DHI-ISC-D118C
- Also known as
- Dahua Technology DHI-ISC-D118C security metal detector
Specifications
36 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Product type | Walk through |
| Control type | Buttons |
| On/off button | Yes |
| LED indicators | Yes |
| Easy to install | Yes |
Features
| Specification | Value |
|---|---|
| Number of detection zones | 18 |
| Number of preset frequencies | 20 |
| People counting | Yes |
| Audible alarm(s) | Yes |
| Number of sensitivity levels | 255 |
| Infrared (IR) sensor | Yes |
| Password protection | Yes |
| Certification | GB 15210-2018 IEC 60068-2-1 IEC 60068-2-2 CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Power consumption (max) | 11 W |
| Power consumption (typical) | 7.8 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Passage dimensions (W x D x H) | 720 x 393 x 2003 mm |
| Width | 866 mm |
| Depth | 488 mm |
| Height | 2208 mm |
| Weight | 37.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 695 mm |
| Package depth | 215 mm |
| Package height | 2271 mm |
| Package weight | 47 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 0 - 90% |
