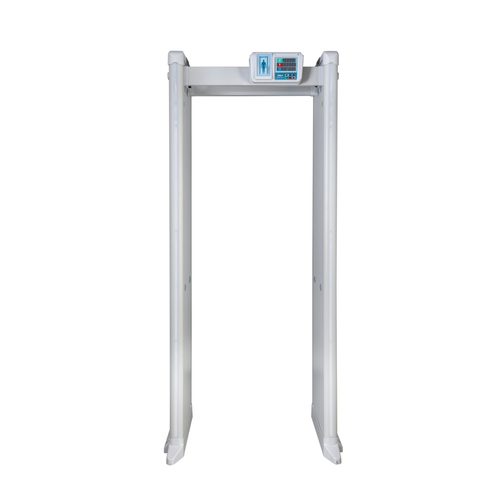

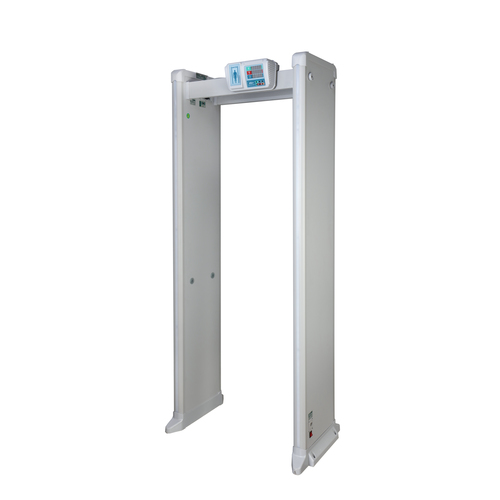

ISC-D218 5000 - 8999 kHz
Model ISC-D218Part no. DHI-ISC-D218
32 specifications
- Weight45 kg
- FireproofYes
- Number of detection zones18
- Power sourceAC
- Passage dimensions (W x D x H)714 x 421 x 2057 mm
- Operating temperature (T-T)-20 - 65 °C
Overview
- Weight
- 45 kg
- Fireproof
- Yes
- Number of detection zones
- 18
- Power source
- AC
- Passage dimensions (W x D x H)
- 714 x 421 x 2057 mm
- Operating temperature (T-T)
- -20 - 65 °C
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- ISC-D218
- Part number
- DHI-ISC-D218
- Also known as
- Dahua Technology ISC-D218 5000 - 8999 kHz
Specifications
32 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Fireproof | Yes |
| Easy to assemble | Yes |
| Easy to install | Yes |
| Easy to transport | Yes |
Features
| Specification | Value |
|---|---|
| Number of detection zones | 18 |
| Frequency range | 5000 - 8999 kHz |
| Number of preset frequencies | 50 |
| People counting | Yes |
| Audible alarm(s) | Yes |
| Light alarm | Yes |
| Number of sensitivity levels | 400 |
| Certification | GB15210-2018 IEC 60068-2-1 IEC 60068-2-2 CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 90 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 9 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Passage dimensions (W x D x H) | 714 x 421 x 2057 mm |
| Width | 928 mm |
| Depth | 572 mm |
| Height | 2210 mm |
| Weight | 45 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 868 mm |
| Package depth | 303.5 mm |
| Package height | 2409 mm |
| Package weight | 62 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
