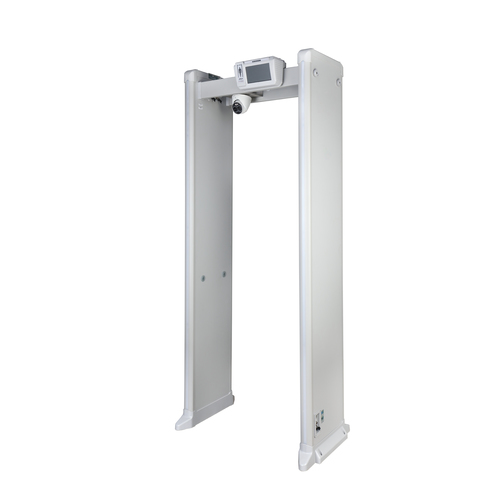

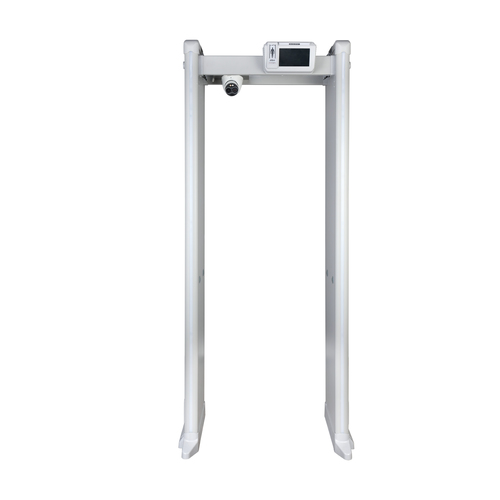

DHI-ISC-D718-TNS2 security metal detector
Model DHI-ISC-D718-TNS2
45 specifications
- TypeWalk through
- Sensor typeCMOS
- Sensor resolution (thermal module)256 x 192 pixels
- Audible alarm(s)Yes
- Ethernet LAN (RJ-45) ports1
- Power sourceAC/DC
Overview
- Type
- Walk through
- Sensor type
- CMOS
- Sensor resolution (thermal module)
- 256 x 192 pixels
- Audible alarm(s)
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Power source
- AC/DC
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- DHI-ISC-D718-TNS2
- Part number
- DHI-ISC-D718-TNS2
- Also known as
- Dahua Technology DHI-ISC-D718-TNS2 security metal detector
Specifications
45 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product type | Walk through |
Camera
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Total megapixels | 4 MP |
| Maximum resolution | 2336 x 1752 pixels |
| Camera shutter speed | 1/30000 s |
| Minimum illumination | 0.05 lx |
| Fixed focal length | 4 mm |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
Thermal module
| Specification | Value |
|---|---|
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Sensor resolution (thermal module) | 256 x 192 pixels |
| Pixel pitch (thermal module) | 12 µm |
| Spectrum range (thermal module) | 8 - 14 µm |
| Thermal sensitivity (NETD) | 50 mK |
| Fixed focal length (thermal module) | 3.5 mm |
| Aperture number (thermal module) | 1 |
| Digital zoom | 16x |
| Horizontal field of view (thermal module) | 50.6° |
| Vertical field of view (thermal module) | 37.8° |
| Detect distance (human) | 146 m |
| Detect distance (vehicle) | 389 m |
| Recognize distance (human) | 38 m |
| Recognize distance (vehicle) | 97 m |
| Identify distance (human) | 19 m |
| Identify distance (vehicle) | 49 m |
Features
| Specification | Value |
|---|---|
| Audible alarm(s) | Yes |
| Infrared (IR) sensor | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Supported network protocols | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Certification | GB15210-2018 IEC 60068-2-1 IEC 60068-2-2 CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Power consumption (standby) | 10 W |
| Power consumption (typical) | 23 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 927.8 mm |
| Depth | 571.8 mm |
| Height | 2210 mm |
