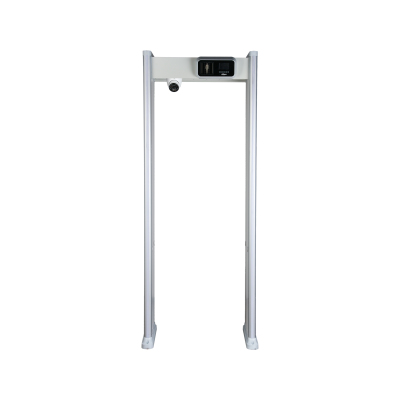

DHI-ISC-D118-T security metal detector
Model DHI-ISC-D118-T
26 specifications
- Display8.89 cm (3.5")
- Weight38.5 kg
- Number of detection zones18
- Built-in displayYes
- Power sourceAC/DC
- Width866 mm
Overview
- Display
- 8.89 cm (3.5")
- Weight
- 38.5 kg
- Number of detection zones
- 18
- Built-in display
- Yes
- Power source
- AC/DC
- Width
- 866 mm
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- DHI-ISC-D118-T
- Part number
- DHI-ISC-D118-T
- Also known as
- Dahua Technology DHI-ISC-D118-T security metal detector
Specifications
26 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Number of detection zones | 18 |
| Audible alarm(s) | Yes |
| Light alarm | Yes |
| Number of sensitivity levels | 255 |
| Certification | GB 15210-2018 IEC 60068-2-1 IEC 60068-2-2 CE-LVD: Low Voltage Directive 2014/35/EU CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU FCC: 47 CFR FCC Part 18, Subpart B ICNIRP 2010 Guidelines ICNIRP 1998 Guidelines EC directive 2013/35/EU EC recom |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 8.89 cm (3.5") |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 12 V |
| Power consumption (typical) | 10.8 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 866 mm |
| Depth | 489 mm |
| Height | 2209 mm |
| Weight | 38.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 700 mm |
| Package depth | 220 mm |
| Package height | 2275 mm |
| Package weight | 48 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
