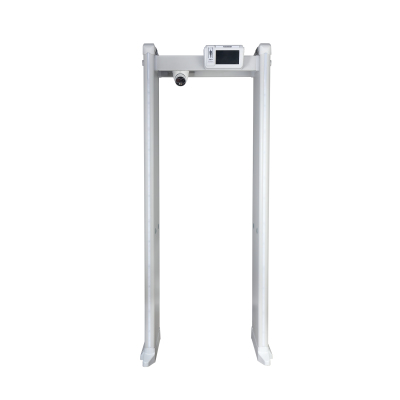

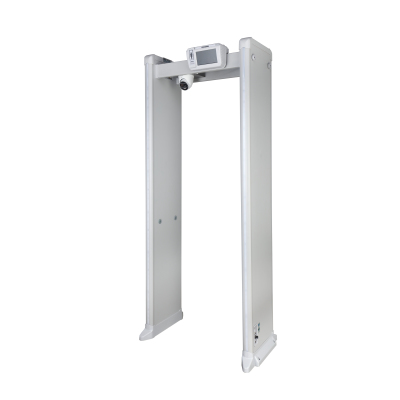

ISC-D733-T
Model ISC-D733-TPart no. DHI-ISC-D733-T
25 specifications
- TypeWalk through
- Weight45 kg
- Number of detection zones1
- Built-in displayYes
- Power sourceDC
- Passage dimensions (W x D x H)714 x 572 x 1950 mm
Overview
- Type
- Walk through
- Weight
- 45 kg
- Number of detection zones
- 1
- Built-in display
- Yes
- Power source
- DC
- Passage dimensions (W x D x H)
- 714 x 572 x 1950 mm
- Brand
- Dahua Technology
- Category
- Security Metal Detector
- Model
- ISC-D733-T
- Part number
- DHI-ISC-D733-T
- Also known as
- Dahua Technology ISC-D733-T
Specifications
25 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product type | Walk through |
Features
| Specification | Value |
|---|---|
| Number of detection zones | 1 |
| Audible alarm(s) | Yes |
| Light alarm | Yes |
| Number of sensitivity levels | 255 |
| Password protection | Yes |
| Certification | CE: EN55032:2015; EN61000-3-2:2014 FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014 |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LCD |
| Touchscreen | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Passage dimensions (W x D x H) | 714 x 572 x 1950 mm |
| Width | 928 mm |
| Depth | 572 mm |
| Height | 2210 mm |
| Weight | 45 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 868 mm |
| Package depth | 304 mm |
| Package height | 2409 mm |
| Package weight | 68 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
