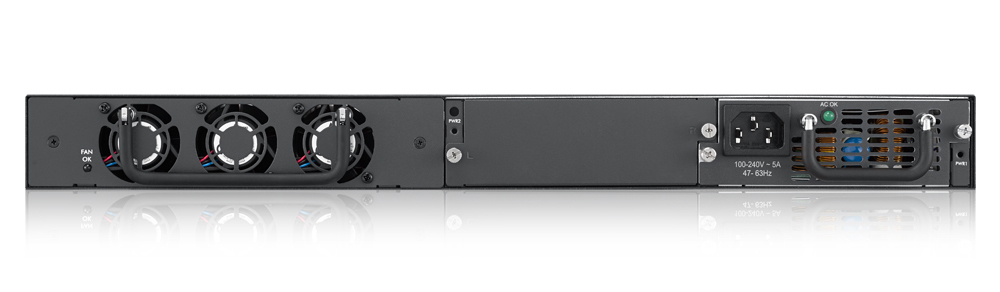

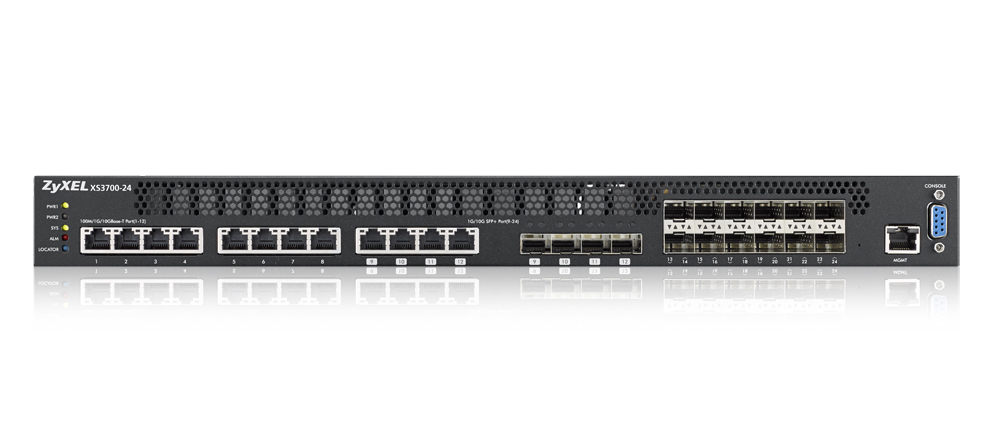

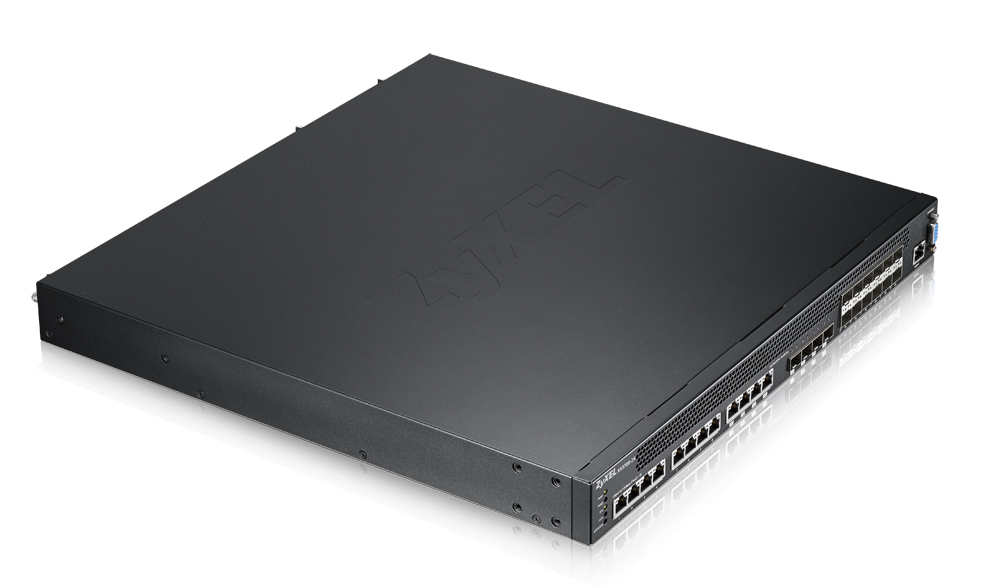

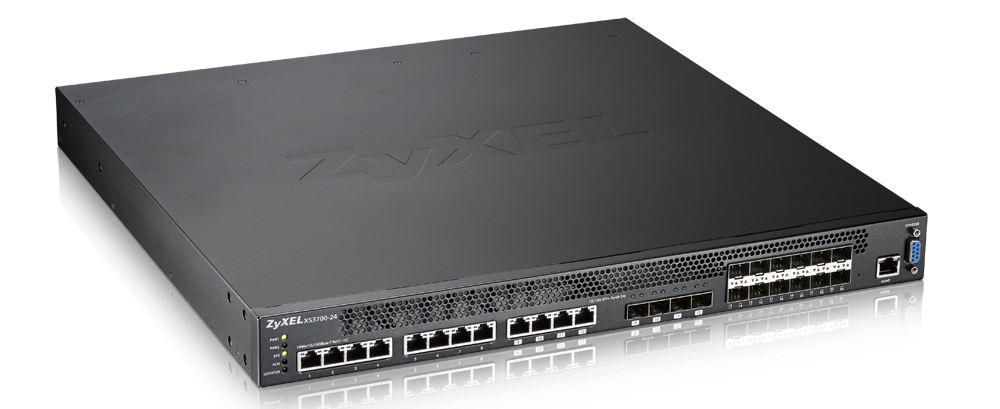

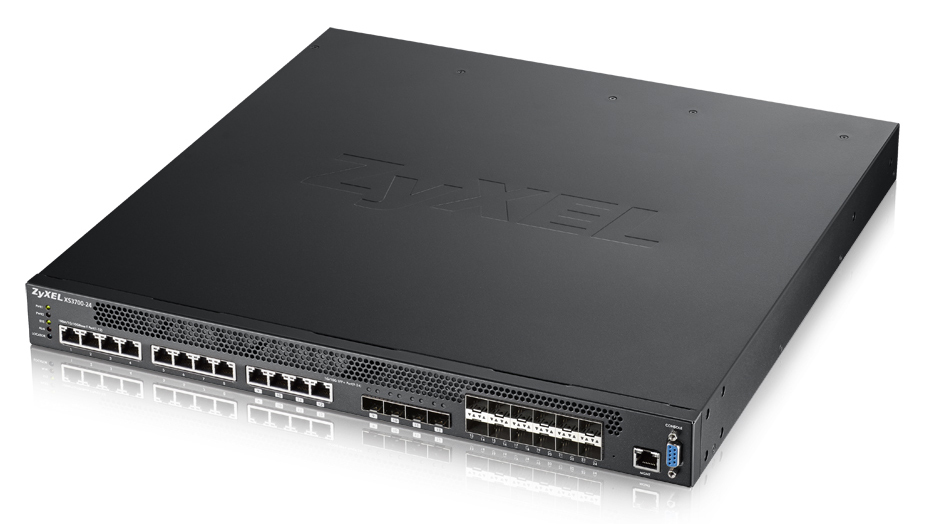

Zyxel XS3700-24 Managed L2+

Zyxel XS3700-24 Managed L2+

10G Ethernet (100/1000/10000) 1U Black

Model XS3700-24Part no. XS3700-24-ZZ0101FEAN 760559121655

46 specifications
  • Memory512 MB
  • Type1U
  • Weight7.39 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
See all specifications

Overview

Memory
512 MB
Type
1U
Weight
7.39 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
Brand
Zyxel
Model
XS3700-24
Part numbers
XS3700-24-ZZ0101F, 3172
EAN / UPC
760559121655, 4718937581276
Also known as
Zyxel XS3700-24 Managed L2+ 10G Ethernet (100/1000/10000) 1U Black

Specifications

46 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011/2012/2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 4022, RFC 4113, RFC 4292, RFC 4293

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Combo SFP ports quantity4
SFP+ module slots quantity12
Fiber optic connectorSFP, SFP+
Console portRS-232

Network

Networking standardsIEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology1000BASE-T, 10GBASE-T
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity480 Gbit/s
Throughput357.14 Mpps
Packet buffer memory4 MB

Security

DHCP featuresDHCP server
SSH/SSL supportNo

Protocols

Management protocolsSNMP v1, SNMP v2c, SNMP v3, RMON 1/2/3/9

Design

Rack mountingYes
Form factor1U
Product colourBlack
SafetyLVD, BSMI

Performance

Internal memory512 MB
Flash memory32 MB
Mean time between failures (MTBF)446034.72 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%

Weight & dimensions

Width440 mm
Depth438 mm
Height44 mm
Weight7.39 kg

Packaging content

Cables includedAC

Packaging data

Package width615 mm
Package depth550 mm
Package height115 mm
Package weight9.72 kg

Certificates

CertificationEMC: FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC RoHS: Level A
