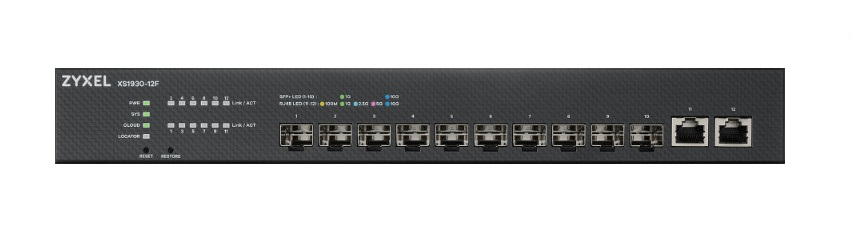

XS1930-12F-ZZ0101F network switch Managed L2/L3 Black
Model XS1930-12F-ZZ0101FEAN 4718937620791
55 specifications
- Memory256 MB
- Weight3.63 kg
- ColourBlack
- Switch typeManaged
- Installed SFP modules quantity0
- 10G supportYes
Overview
- Memory
- 256 MB
- Weight
- 3.63 kg
- Colour
- Black
- Switch type
- Managed
- Installed SFP modules quantity
- 0
- 10G support
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XS1930-12F-ZZ0101F
- Part number
- XS1930-12F-ZZ0101F
- EAN / UPC
- 4718937620791
- Also known as
- Zyxel XS1930-12F-ZZ0101F network switch Managed L2/L3 Black
Specifications
55 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 10 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 178.5 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SHA-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 24.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 84.91 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 484 mm |
| Depth | 337 mm |
| Height | 79 mm |
| Weight | 3.63 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
