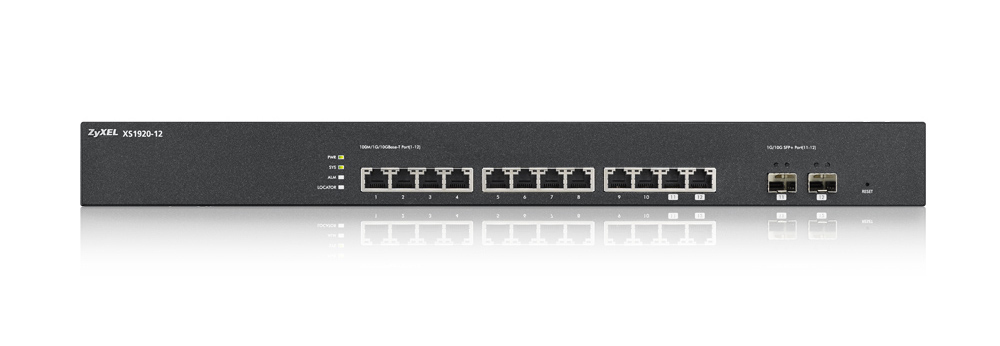

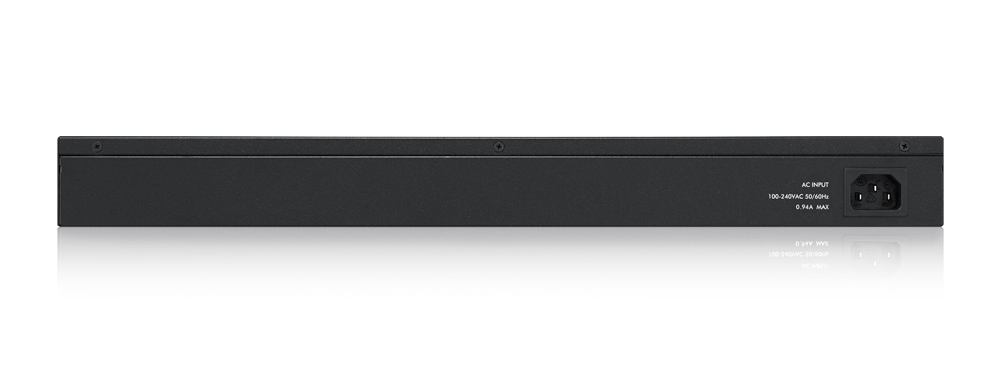

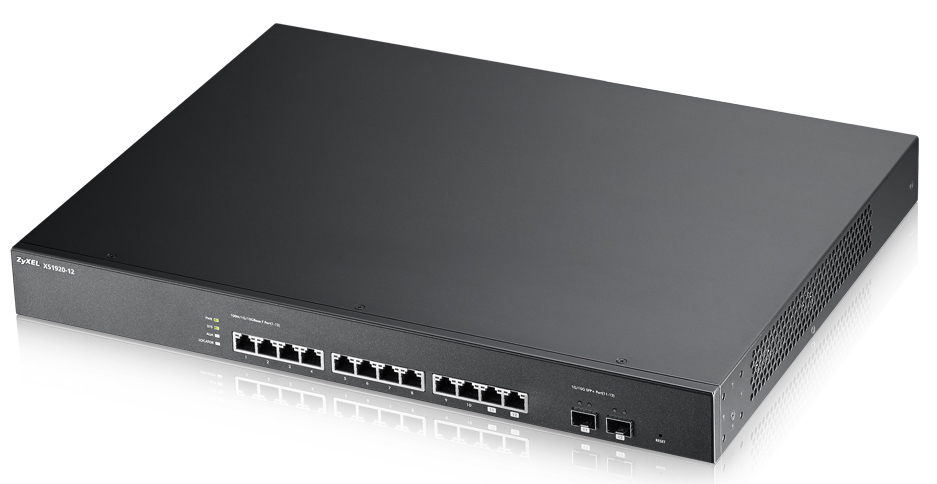

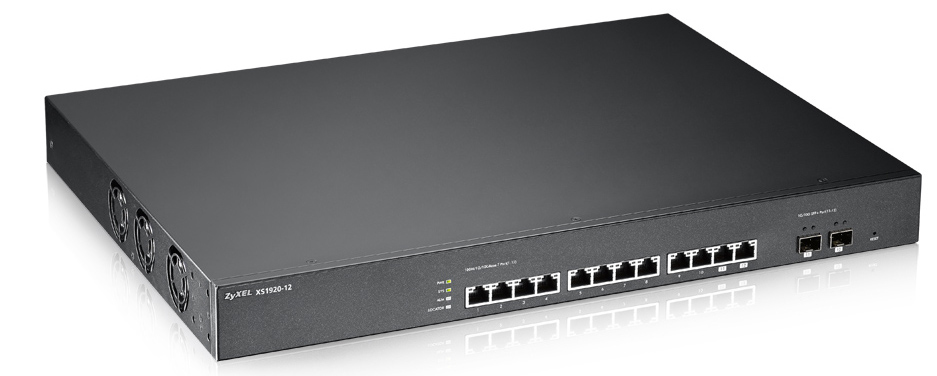

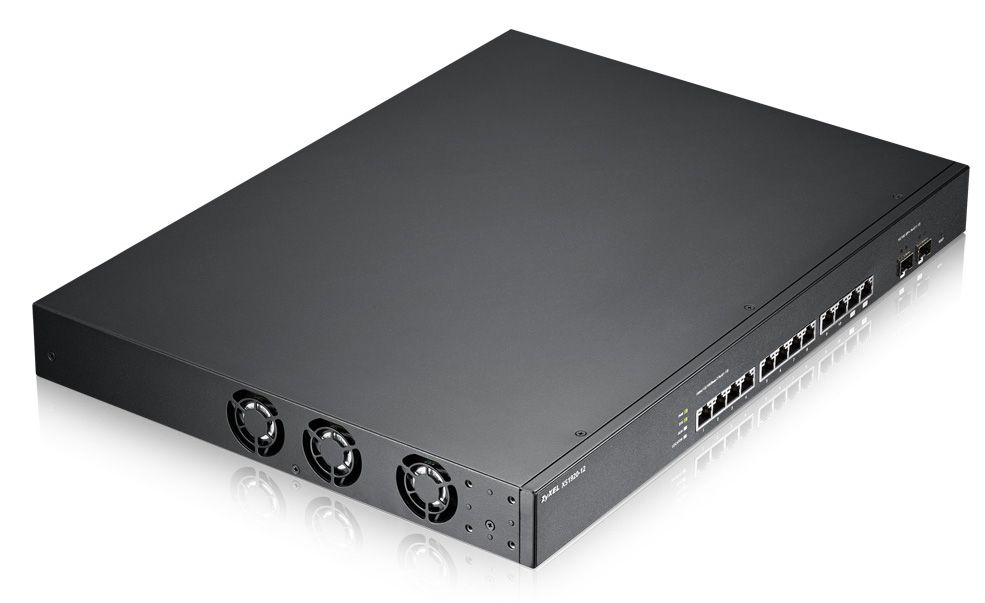

Zyxel XS1920-12 Managed L2
10G Ethernet (100/1000/10000) 1U Black
Model XS1920-12Part no. XS1920-12-ZZ0101FEAN 760559121648
44 specifications
- Type1U
- Weight4.21 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 4.21 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XS1920-12
- Part numbers
- XS1920-12-ZZ0101F, 3171
- EAN / UPC
- 760559121648, 4718937581269
- Also known as
- Zyxel XS1920-12 Managed L2 10G Ethernet (100/1000/10000) 1U Black
Specifications
44 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011/2012/2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 10GBASE-T |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Throughput | 178.6 Mpps |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Static port security | No |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1, SNMP v2c, SNMP v3, RMON 1/2/3/9 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Safety | LVD, BSMI |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 839624.71 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 95.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 325.97 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44.5 mm |
| Weight | 4.21 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Package width | 583 mm |
| Package depth | 451 mm |
| Package height | 98 mm |
| Package weight | 5.68 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EMC: FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC RoHS: Level A |
