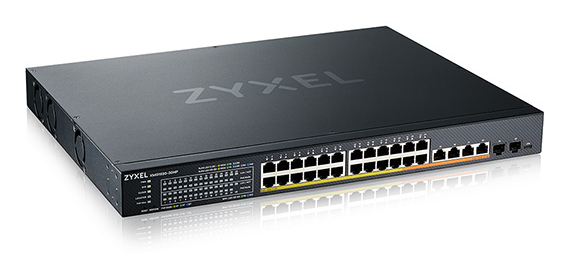

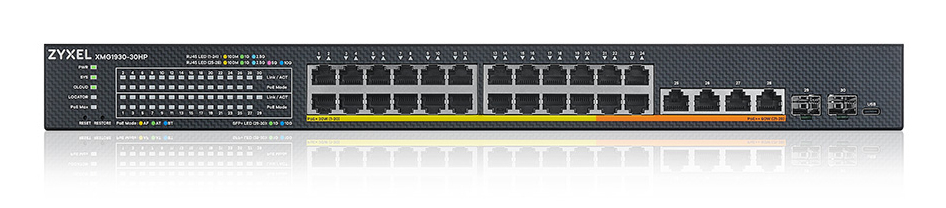

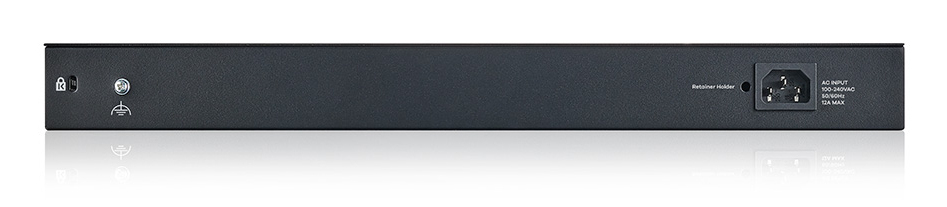

XMG1930-30HP network switch Managed L3
2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Model XMG1930-30HPEAN 760559129422
63 specifications
- Type1U
- Weight4.85 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 4.85 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XMG1930-30HP
- Part numbers
- XMG1930-30HP, XMG1930-30HP-ZZ0101F
- EAN / UPC
- 760559129422, 4718937622078
- Also known as
- Zyxel XMG1930-30HP network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Specifications
63 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 10G Ethernet (copper) ports quantity | 4 |
| Installed SFP+ modules quantity | 2 |
| Fiber optic connector | SFP, SFP+ |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Policy-based routing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Flow control support | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 178.5 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 587922.31 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 864.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 28 |
| Power over Ethernet plus (PoE+) ports quantity | 20 |
| Power over Ethernet (PoE+++) ports quantity | 28 |
| Total Power over Ethernet (PoE) budget | 700 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 864.1 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4.85 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
