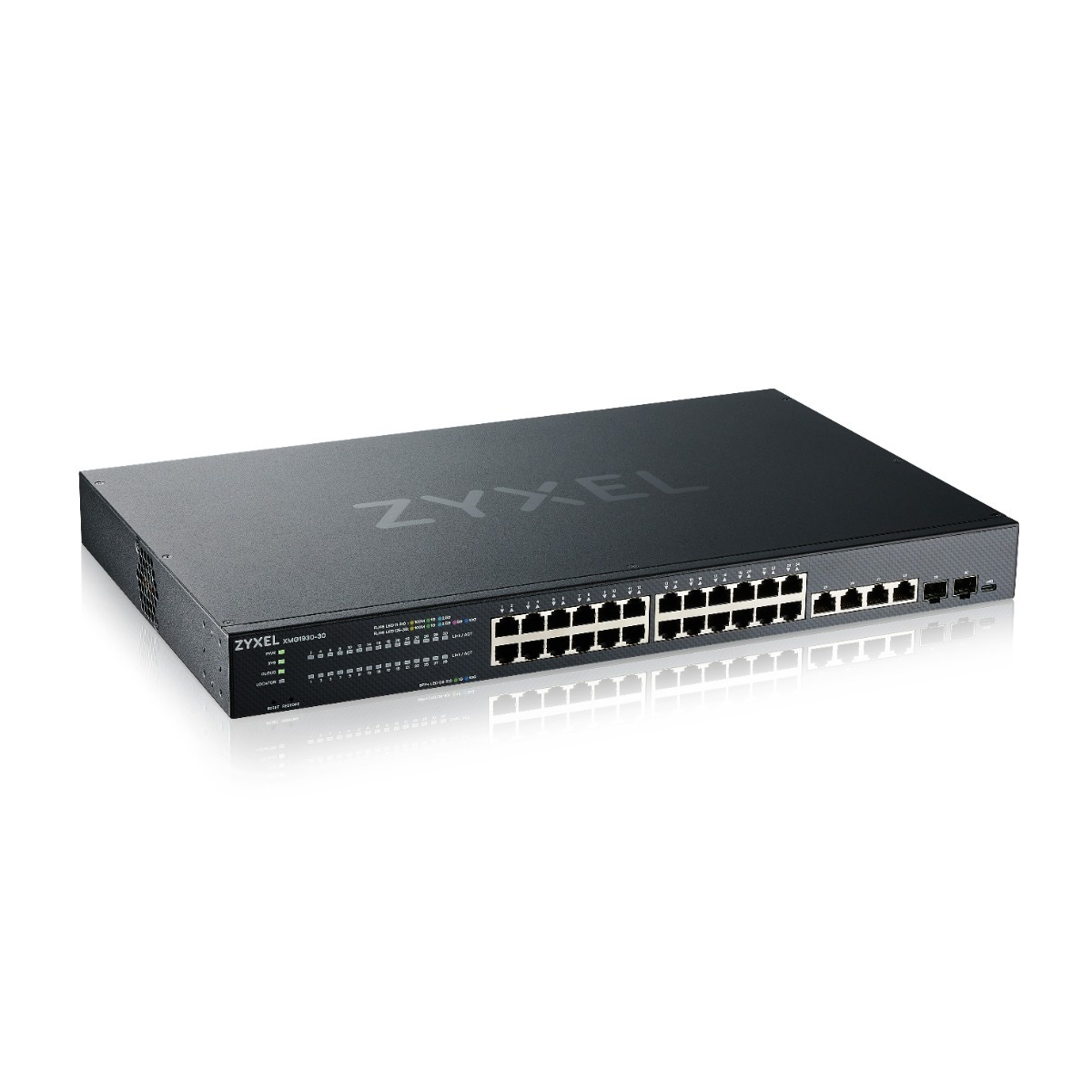

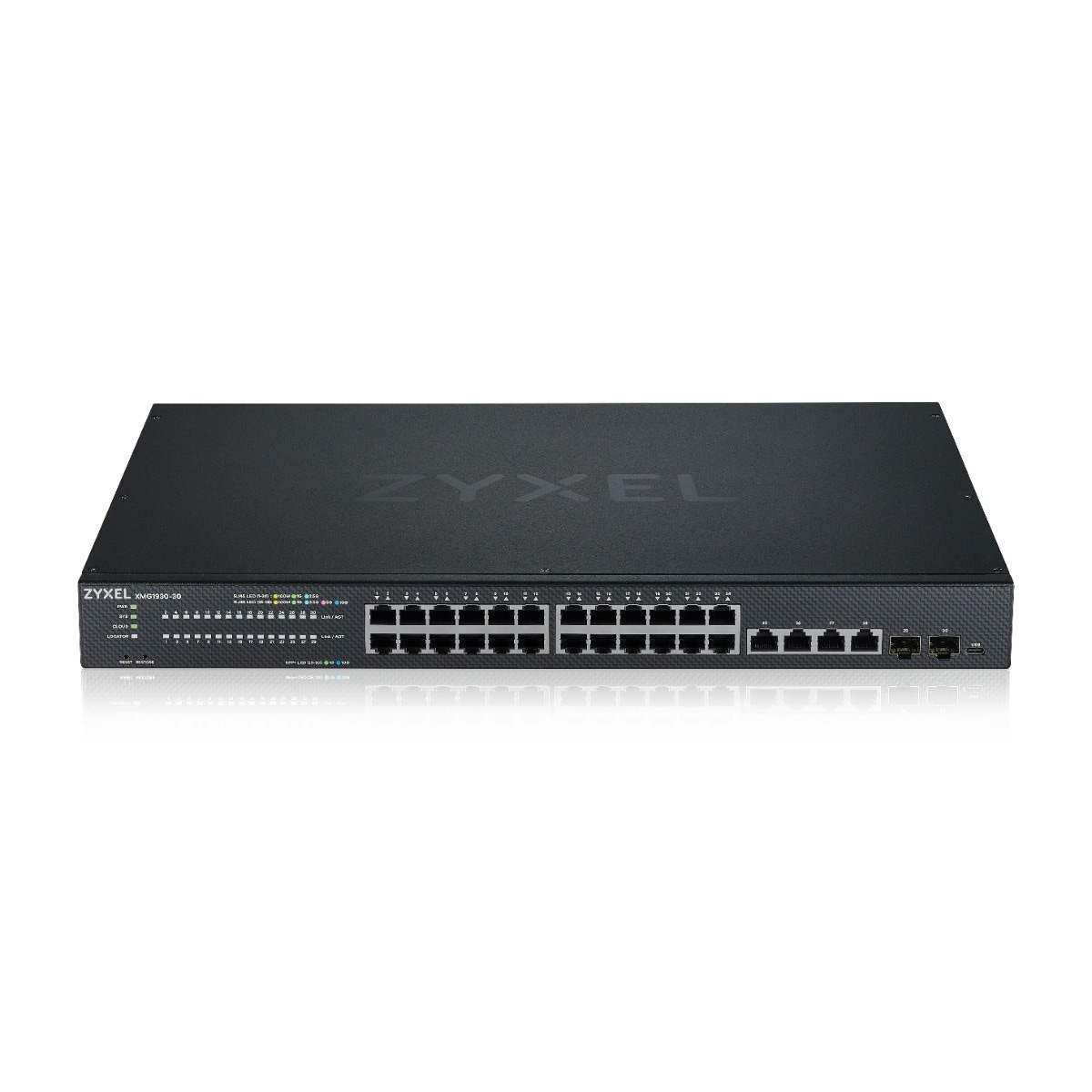

XMG1930-30 Managed L3
2.5G Ethernet (100/1000/2500) Black
Model XMG1930-30Part no. XMG1930-30-ZZ0101FEAN 4718937622054
67 specifications
- Memory256 MB
- Noise47.6 dB
- Weight3.81 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 256 MB
- Noise
- 47.6 dB
- Weight
- 3.81 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XMG1930-30
- Part number
- XMG1930-30-ZZ0101F
- EAN / UPC
- 4718937622054
- Also known as
- Zyxel XMG1930-30 Managed L3 2.5G Ethernet (100/1000/2500) Black
Specifications
67 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| MIB support | RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 10G Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 1000BASE-T, 2500BASE-T |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 100,1000,2500,10000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 178.5 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP relay, DHCPv6 client, DHCPv6 relay |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), WFQ, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SHA-2, SNMP, SNMPv2, SNMPv3, SSL/TLS |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 47.6 dB |
| Mean time between failures (MTBF) | 532217 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 67.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 67.1 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.81 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS |
| Certification | BSMI, EMC |
