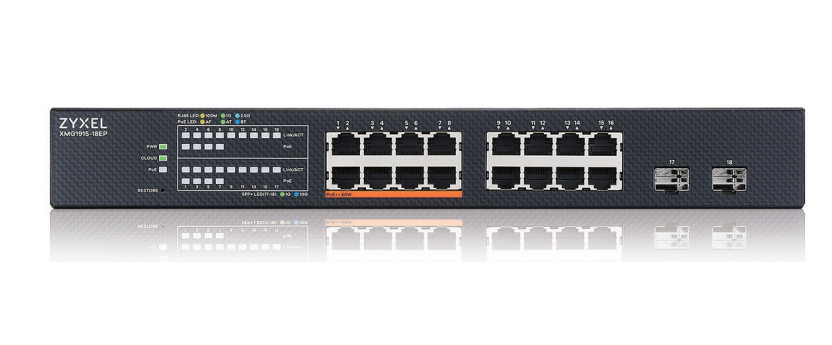

XMG1915-18EP Managed L2
2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Model XMG1915-18EPPart no. XMG1915-18EP-EU0101FEAN 760559130329
49 specifications
- Memory256 MB
- Weight2.6 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportYes
- MAC address table16000 entries
Overview
- Memory
- 256 MB
- Weight
- 2.6 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XMG1915-18EP
- Part number
- XMG1915-18EP-EU0101F
- EAN / UPC
- 760559130329, 4718937631490
- Also known as
- Zyxel XMG1915-18EP Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Specifications
49 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 120 Gbit/s |
| Forwarding rate | 89.2 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast features | Multicast forwarding |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 954.032 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 230.81 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 180 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
