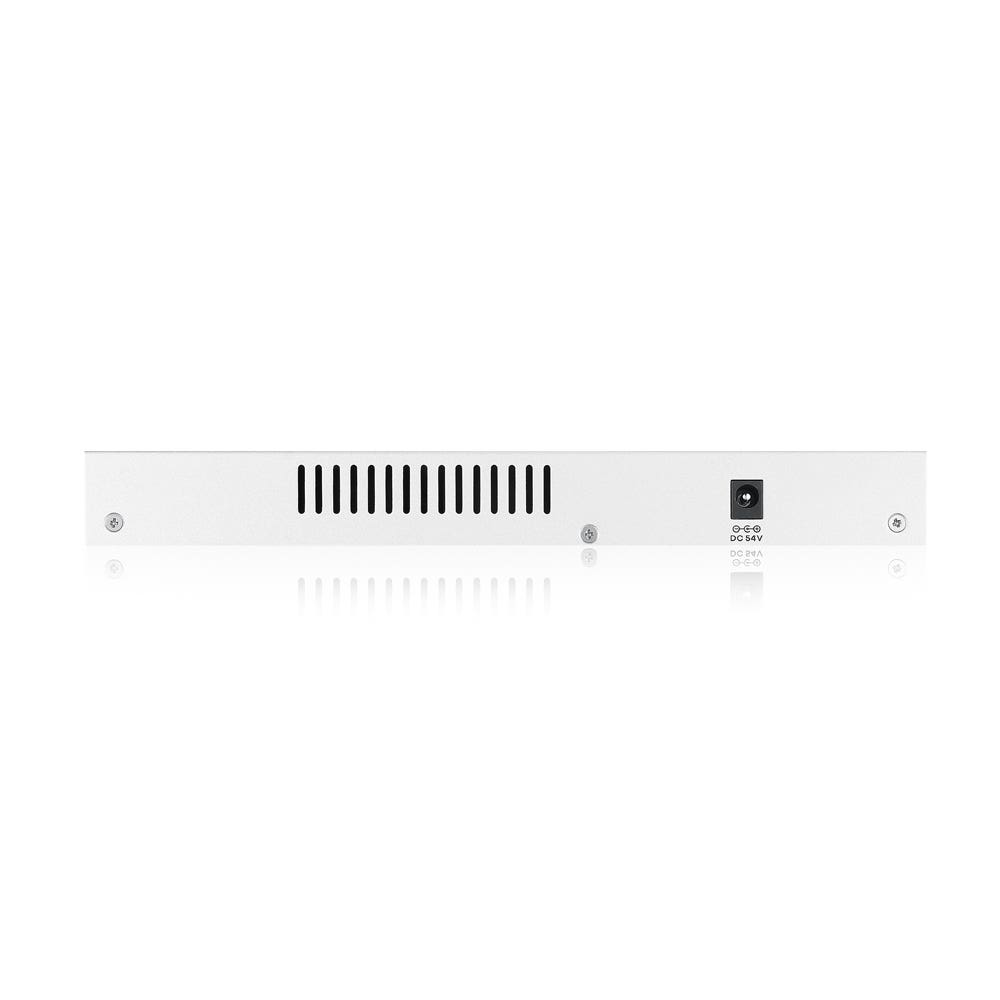

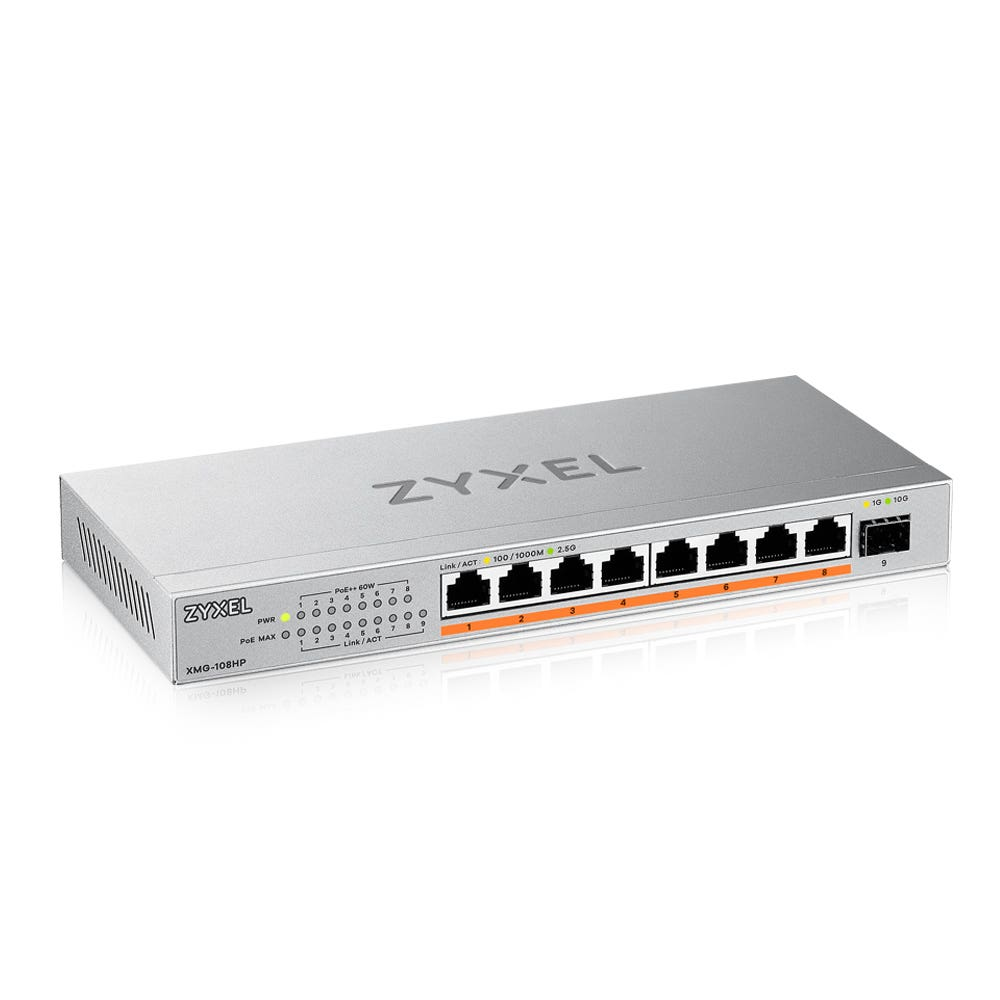

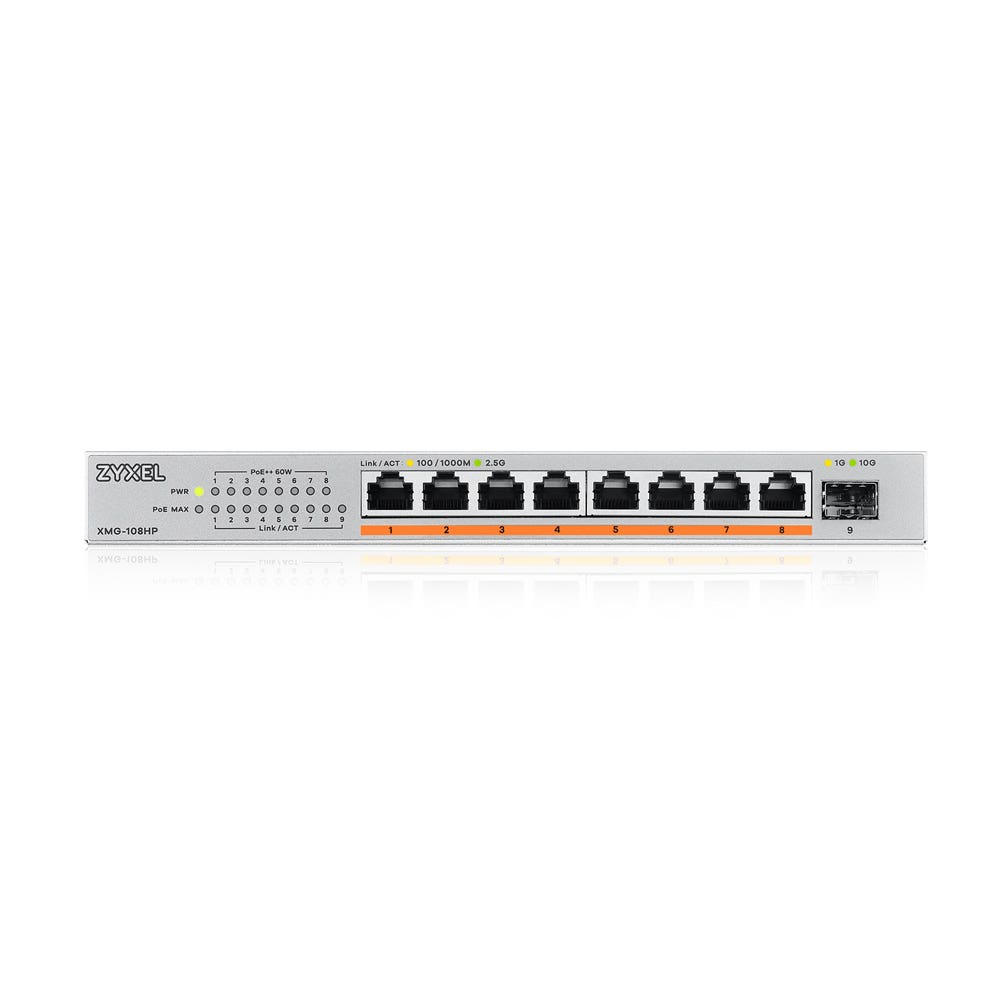

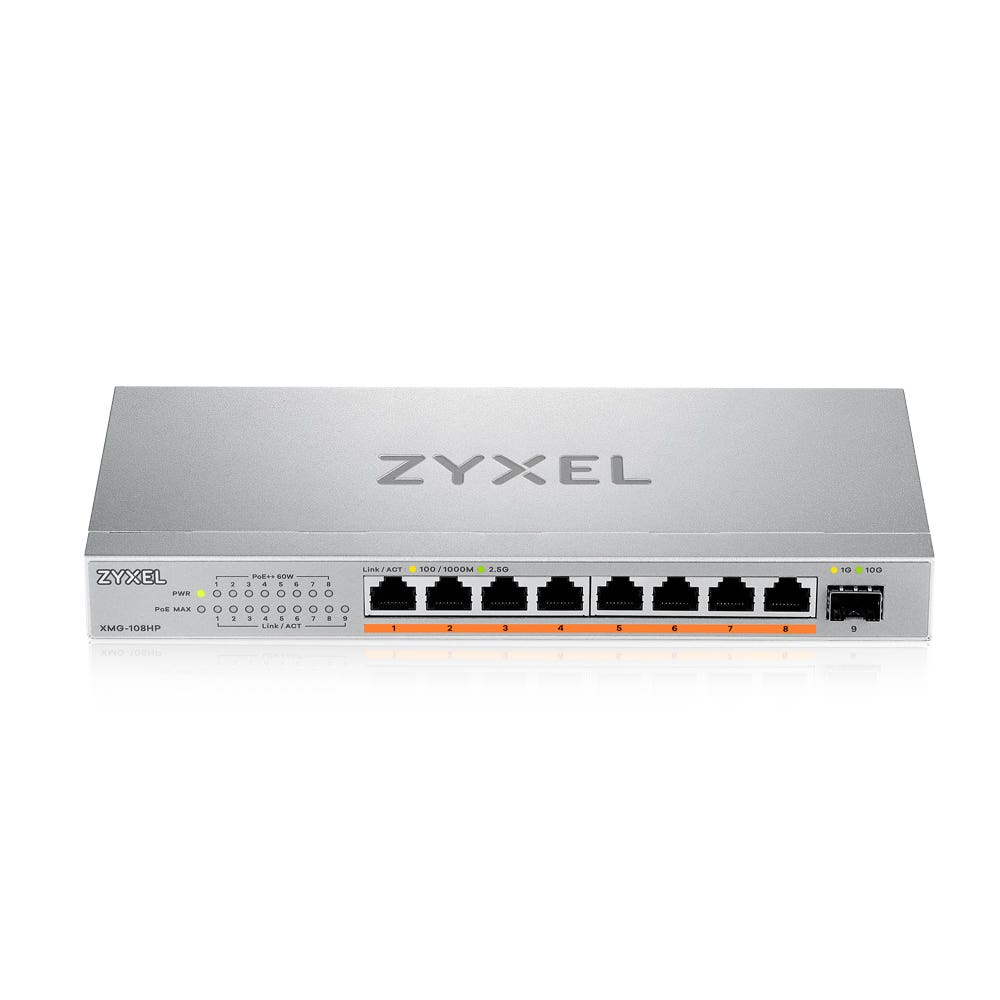

XMG-108HP Unmanaged
2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Model XMG-108HPPart no. XMG-108HP-EU0101FEAN 4718937631148
35 specifications
- Weight715 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
- MAC address table4000 entries
- LED indicatorsPoE, Power, Link
Overview
- Weight
- 715 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- MAC address table
- 4000 entries
- LED indicators
- PoE, Power, Link
- Brand
- Zyxel
- Category
- Network Switch
- Model
- XMG-108HP
- Part numbers
- XMG-108HP-EU0101F, XMG-108HP-GB0101F
- EAN / UPC
- 4718937631148, 4718937633036
- Also known as
- Zyxel XMG-108HP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 60 Gbit/s |
| Forwarding rate | 44.6 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| LED indicators | PoE, Power, Link |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 858634 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 120 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 100 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 91.1 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 105 mm |
| Height | 27 mm |
| Weight | 715 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EAC, FCC, BSMI Class B |
